Crankshaft Front Oil Seal - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 36010  Front Crankshaft Seal Installer

  1. Install the seal into the front cover by driving the seal in from the timing chain side using the J 36010  . The J 36010  will properly position the seal in the front cover.
  2. Ensure that the engine front cover is properly supported when installing the seal.

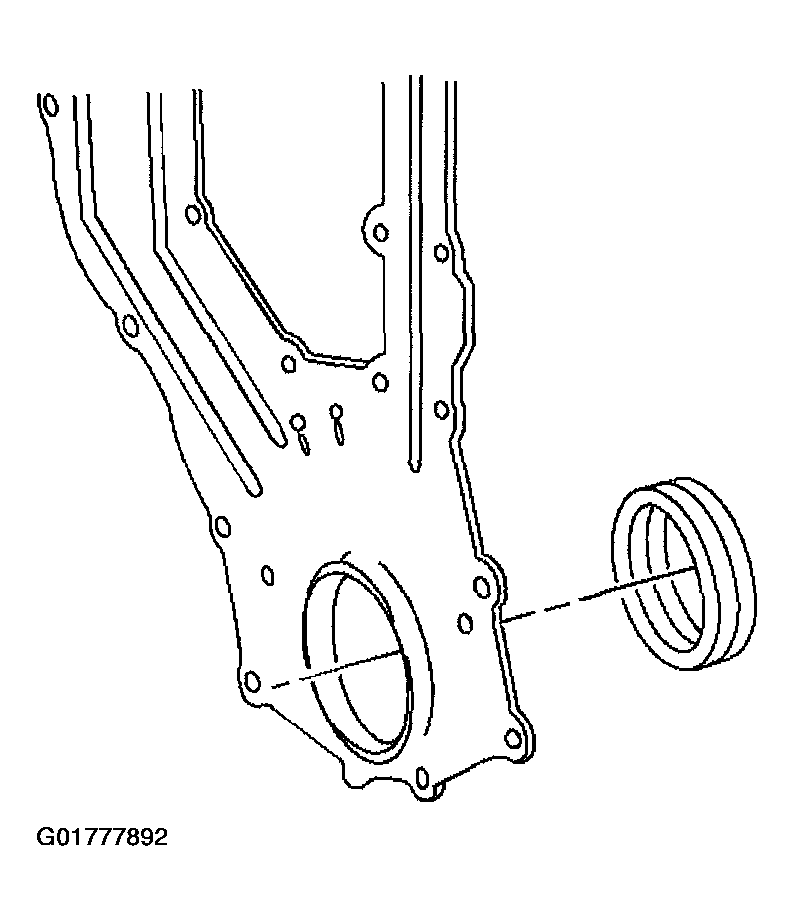

    Fig 1: Crankshaft Front Oil Seal
    G01777892Courtesy of GENERAL MOTORS CORP.
