Crankshaft Balancer - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required:

  1. Remove the balancer retaining bolt and washer. Use the J 38122-A  in order to prevent the crankshaft from rotating when loosening the bolt.
  2. Remove the balancer assembly, using the J 24420-C  .

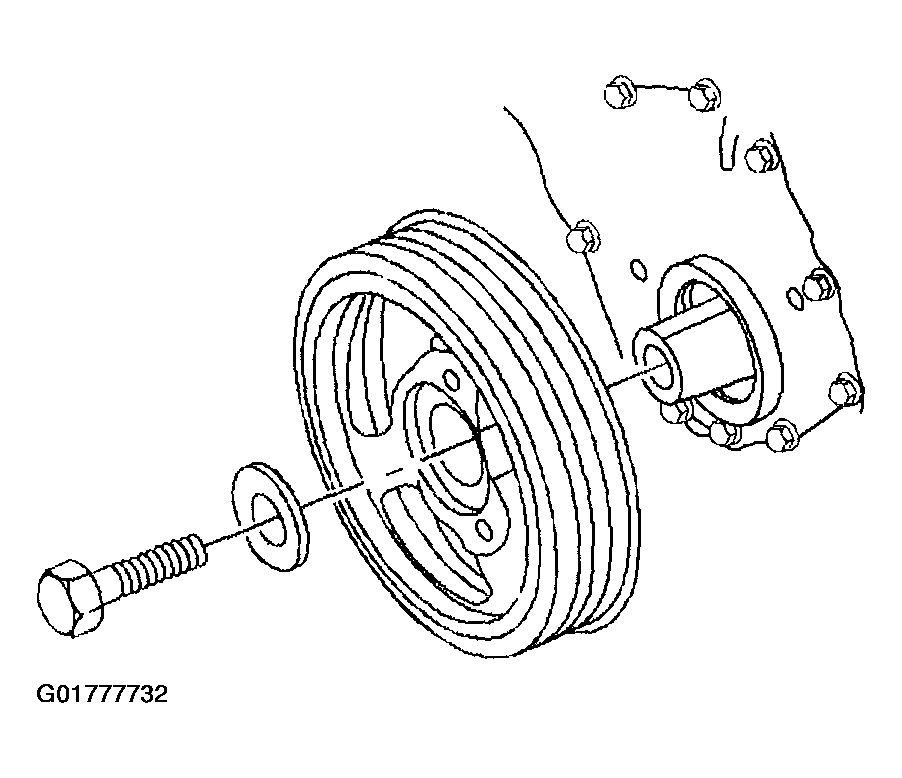

    3. Fig 1: Balancer Assembly
    G01777732Courtesy of GENERAL MOTORS CORP.
