Crankshaft And Bearings - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 36660-A Torque Angle Meter

Install the main bearings and lubricate with engine oil.
Install the crankshaft on the journals.
NOTE: In order to prevent the possibility of cylinder block or crankshaft bearing cap damage, the crankshaft bearing caps are tapped into the cylinder block cavity using a brass, lead, or a leather mallet before the attaching bolts are installed. Do not use attaching bolts to pull the crankshaft bearing caps into the seats. Failure to use this process may damage a cylinder block or a bearing cap.
Install the crankshaft caps. Tap gently into place with a suitable tool.
Install the crankshaft cap bolts. Finger tighten the bolts.

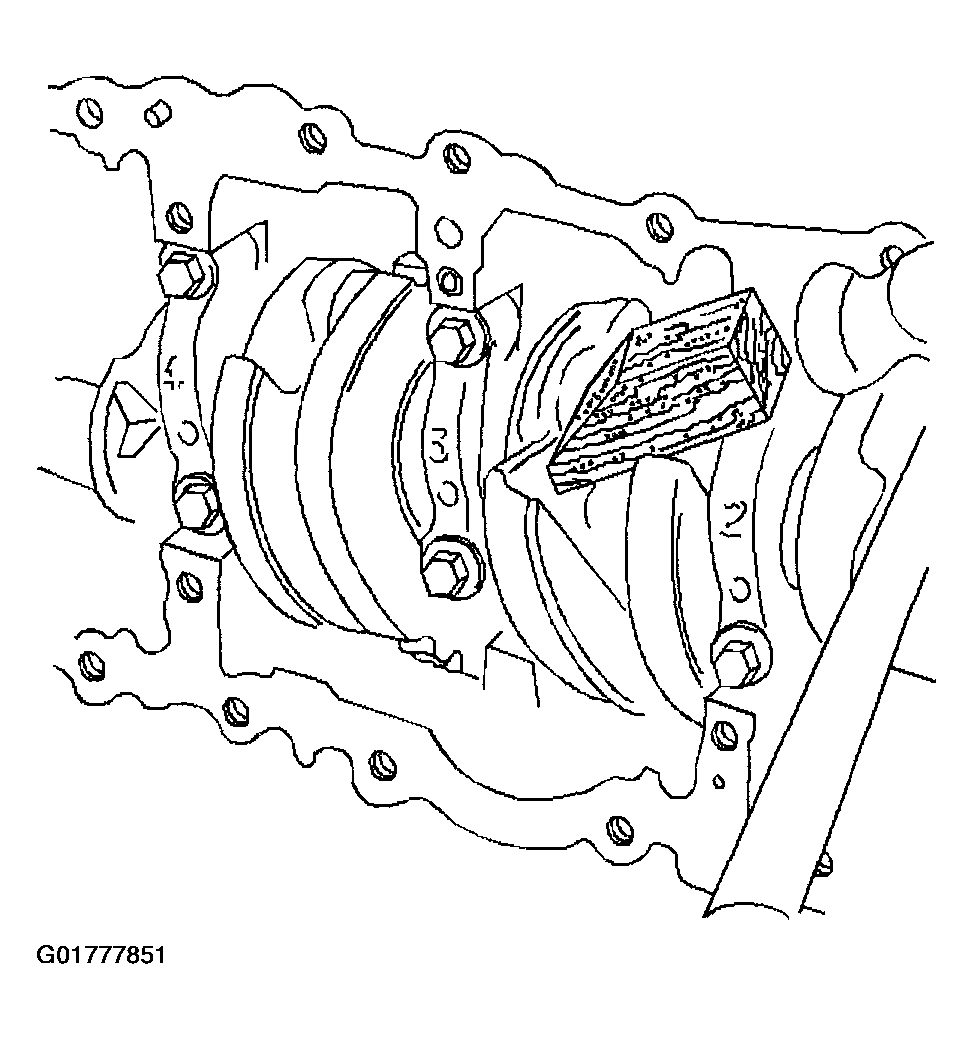

Fig 1: Crankshaft Cap Bolts
Courtesy of GENERAL MOTORS CORP.
Seat the crankshaft thrust bearing. Tighten the bearing cap bolts to 20 N.m (15 ft lbs), and rotate the bolts 90 degrees, using the J 36660-A .

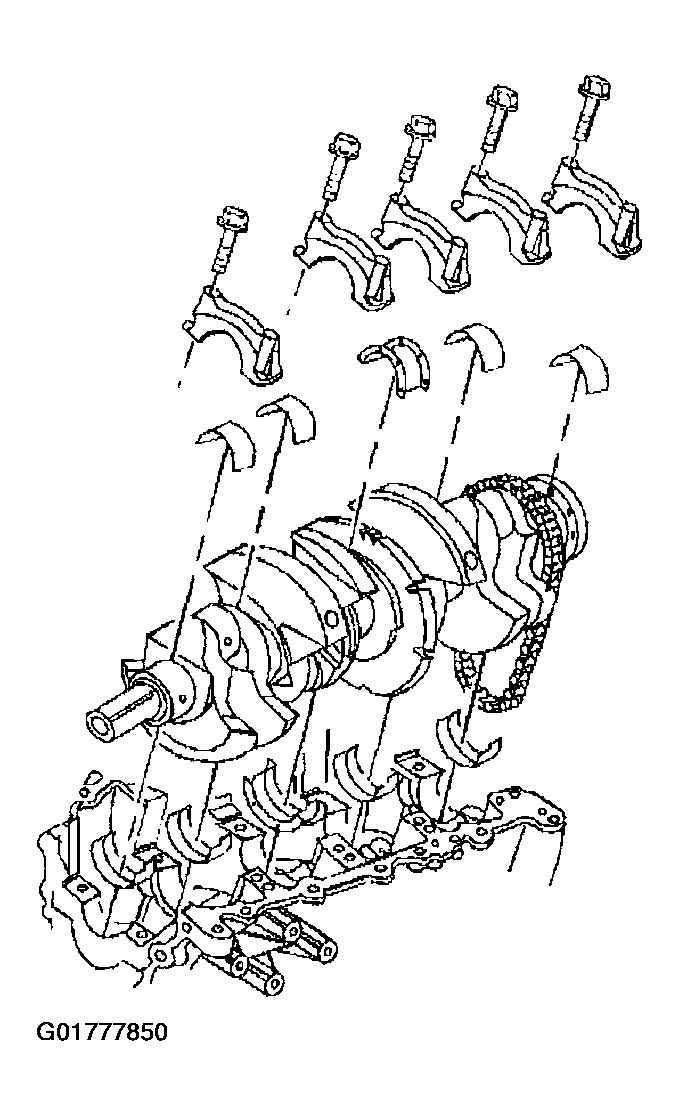

Fig 2: Seating Crankshaft Thrust Bearing
Courtesy of GENERAL MOTORS CORP.
