Measuring Connecting Rod Bearing Side Clearance

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a feeler gauge between the connecting rod caps and measure the connecting rod side clearance. Refer to Engine Mechanical Specifications .
  2. The connecting rod side clearances may also be measured with a dial indicator set.

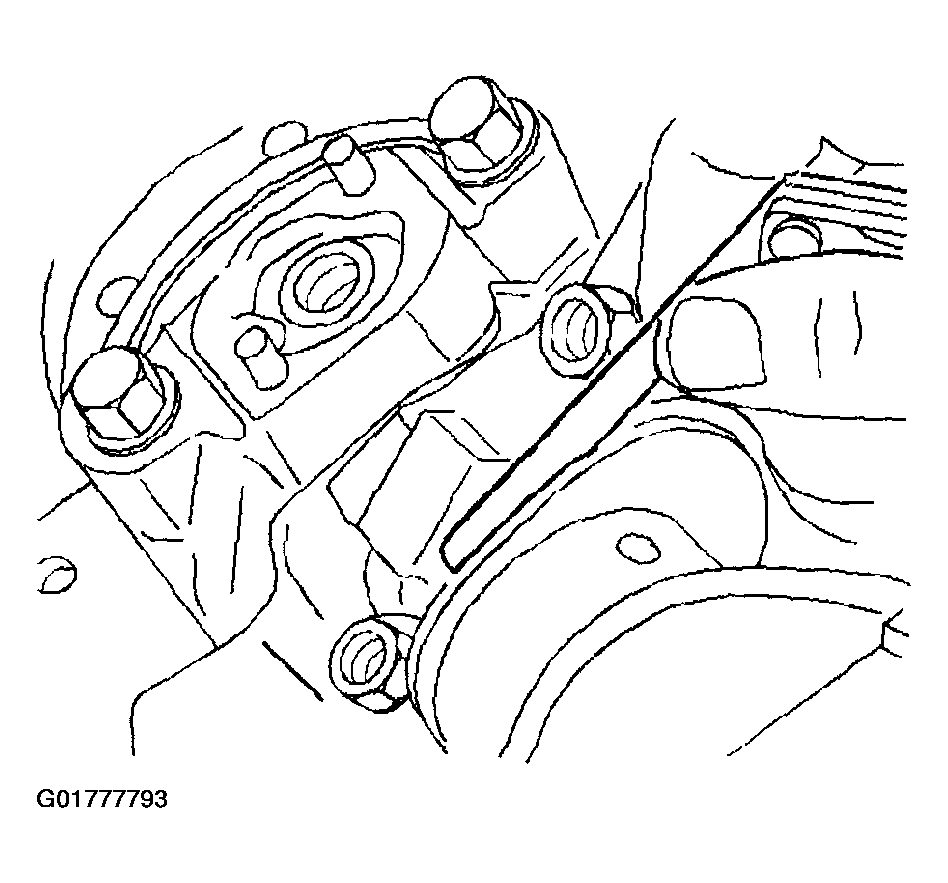

    Fig 1: Measuring Connecting Rod Bearing Side Clearance
    G01777793Courtesy of GENERAL MOTORS CORP.
