Camshaft & Housing - Cleaning & Inspection

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the valve lifters for scoring where the valve lifters contact the camshaft.
  2. Inspect the camshaft journals and lobes for wear or scoring (1, 2).

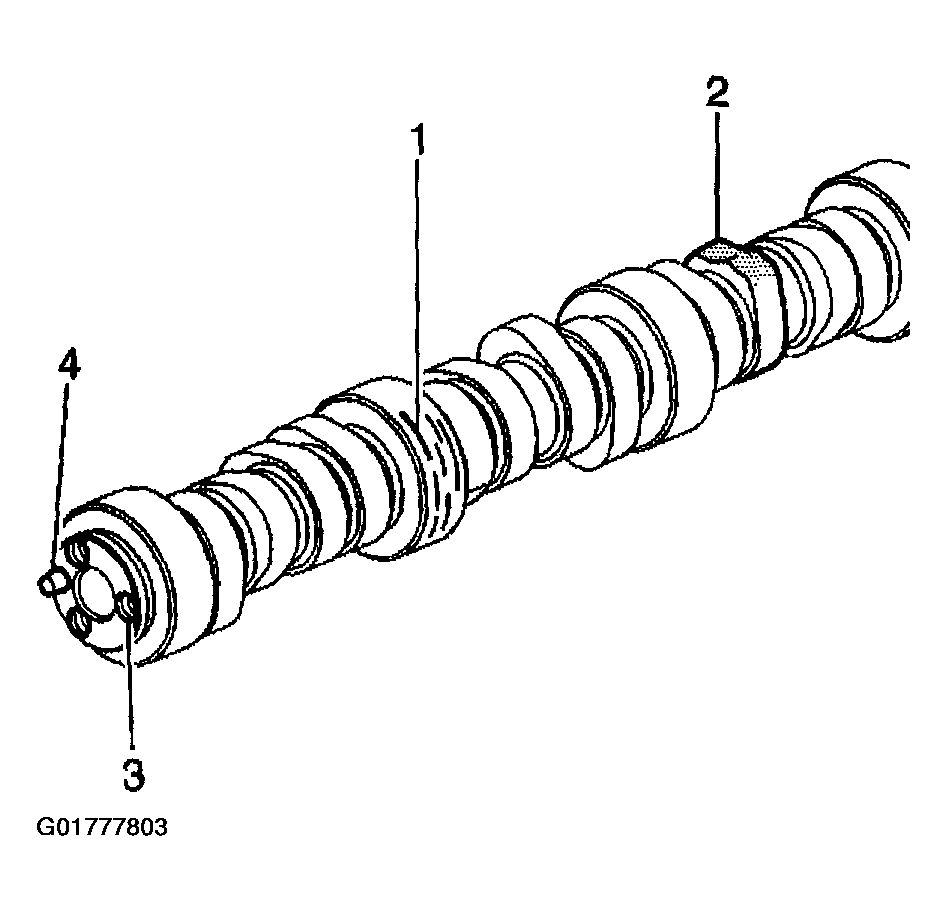

    3. Fig 1: Inspecting Camshaft Journals & Lobes
    G01777803Courtesy of GENERAL MOTORS CORP.
  3. Inspect the camshaft sprocket bolt holes for damaged threads (3).
  4. Inspect the camshaft sprocket alignment pin for damage and straightness (4).
  5. Inspect the camshaft housing and cover for scoring in lifter bores and camshaft journals.
  6. Clean the camshaft housing and cover.
    • Wash the camshaft housing and cover in solvent.
    • Remove all traces of RTV from the power steering pump seal area on the intake camshaft housing and cover.
    • Inspect the camshaft housing and cover for cracks or other signs of damage.

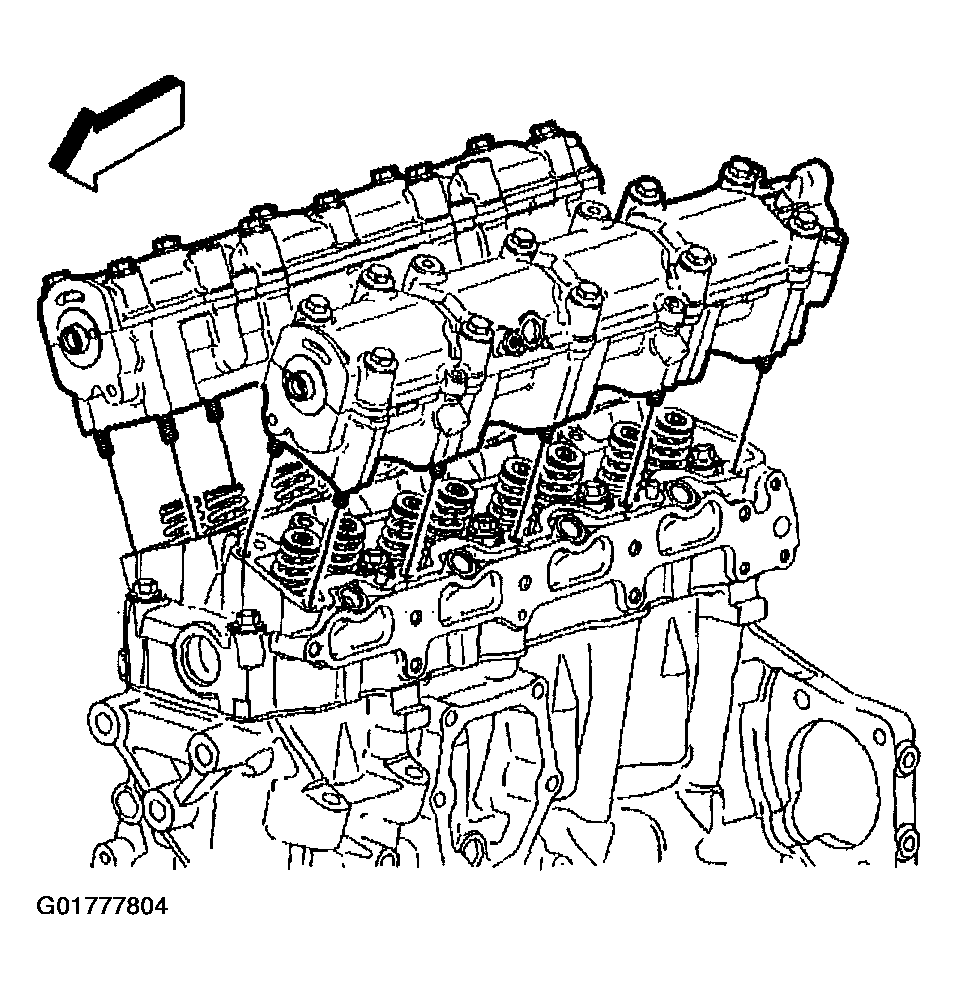

    Fig 2: Camshaft Housing Cover
    G01777804Courtesy of GENERAL MOTORS CORP.
