Water Pump - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump drive pulley and bolts.
  2. Remove the water pump attaching bolts.

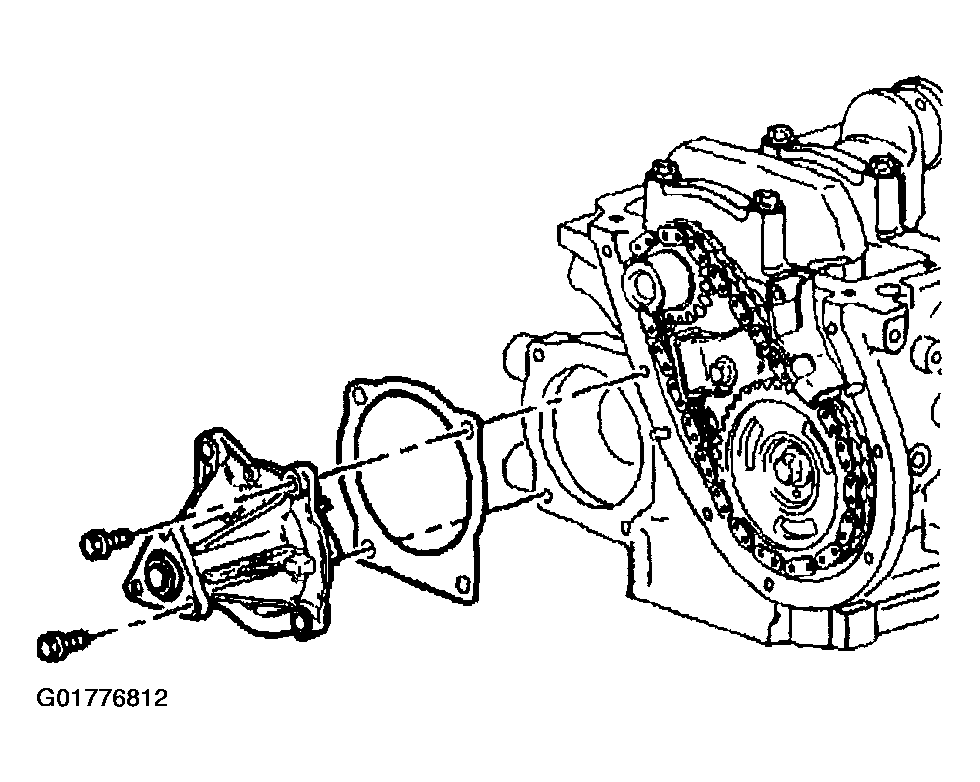

    Fig 1: Water Pump Assembly
    G01776812Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump.

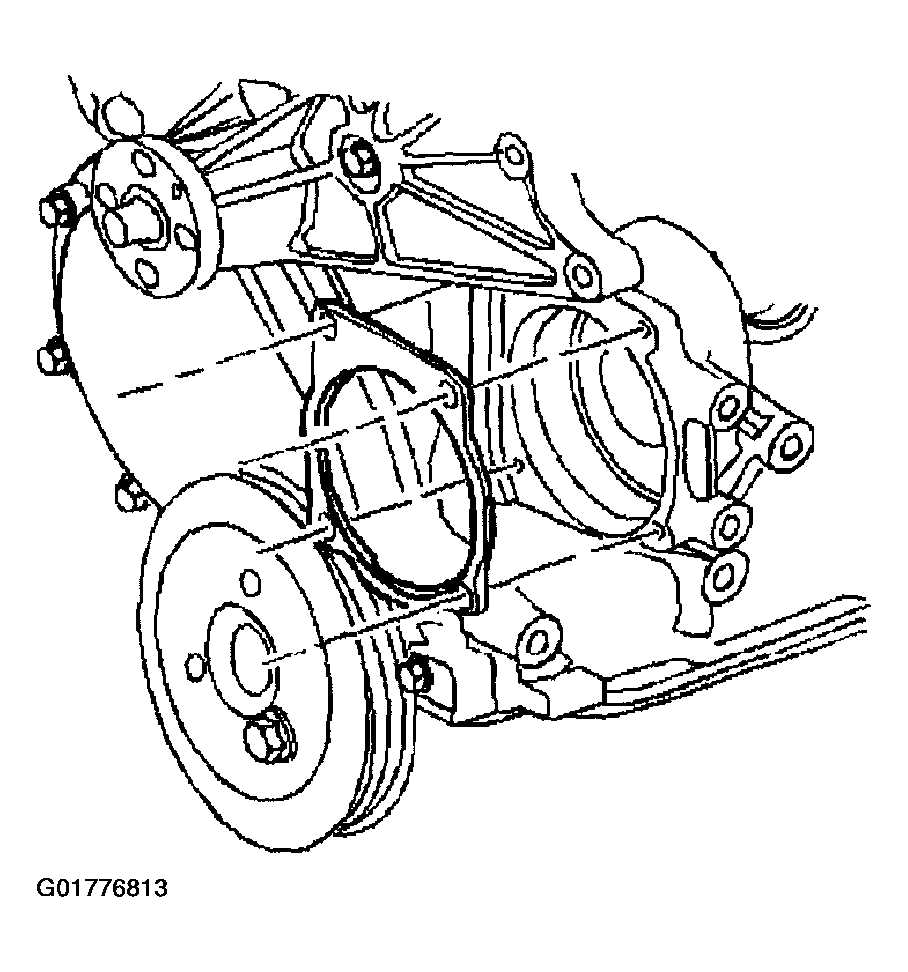

    Fig 2: Water Pump Gasket
    G01776813Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump gasket.
    • Clean all sealing surfaces.
    • Inspect all sealing surfaces for burrs or imperfections.
