Water Pump - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket to the engine.

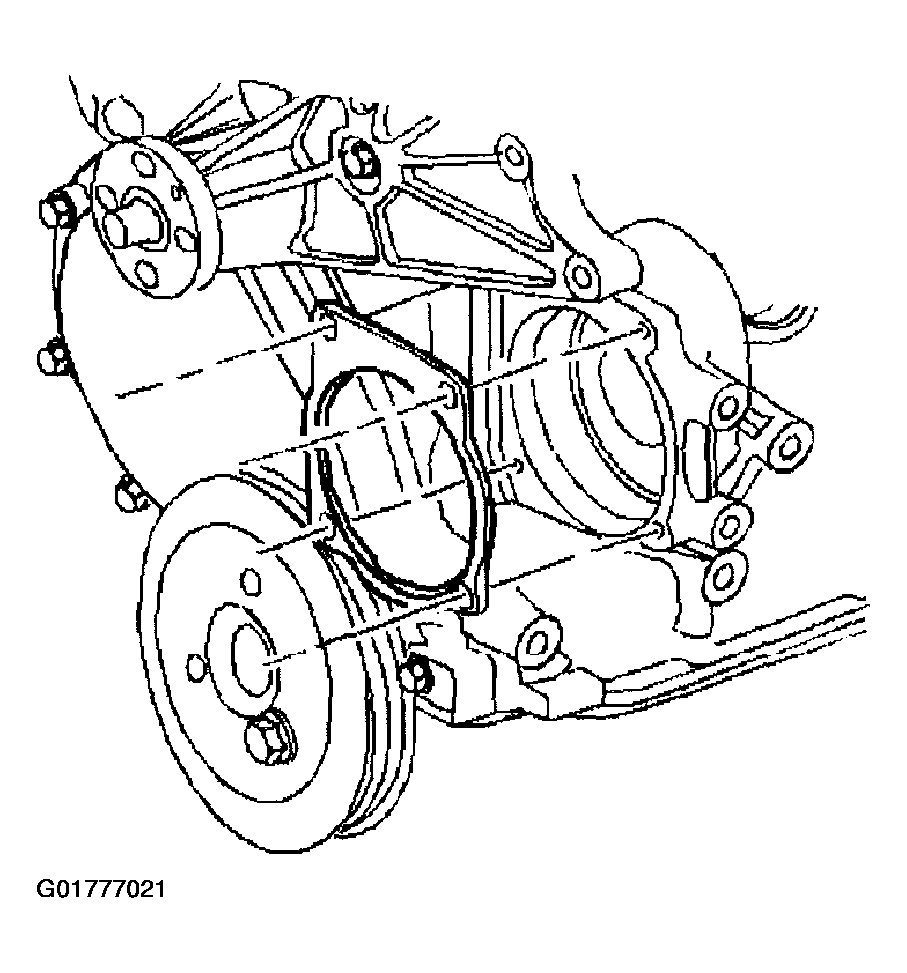

    Fig 1: Water Pump Gasket
    G01777021Courtesy of GENERAL MOTORS CORP.
  2. Install the water pump to the engine.
  3. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent, to the water pump bolt threads.

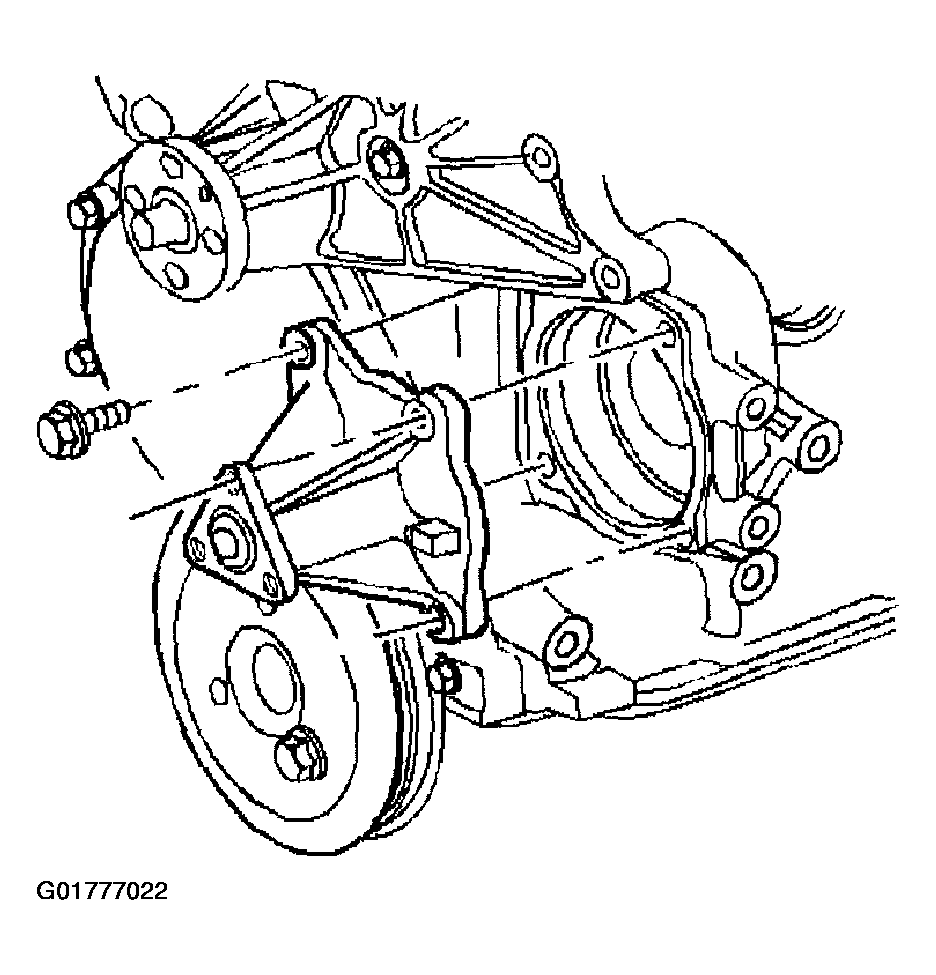

    Fig 2: Water Pump Assembly
    G01777022Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump attaching bolts. Tighten the water pump attaching bolts to 25 N.m (18 ft lbs).
  5. Install the water pump pulley and bolts. Tighten the water pump bolts to 30 N.m (22 ft lbs).

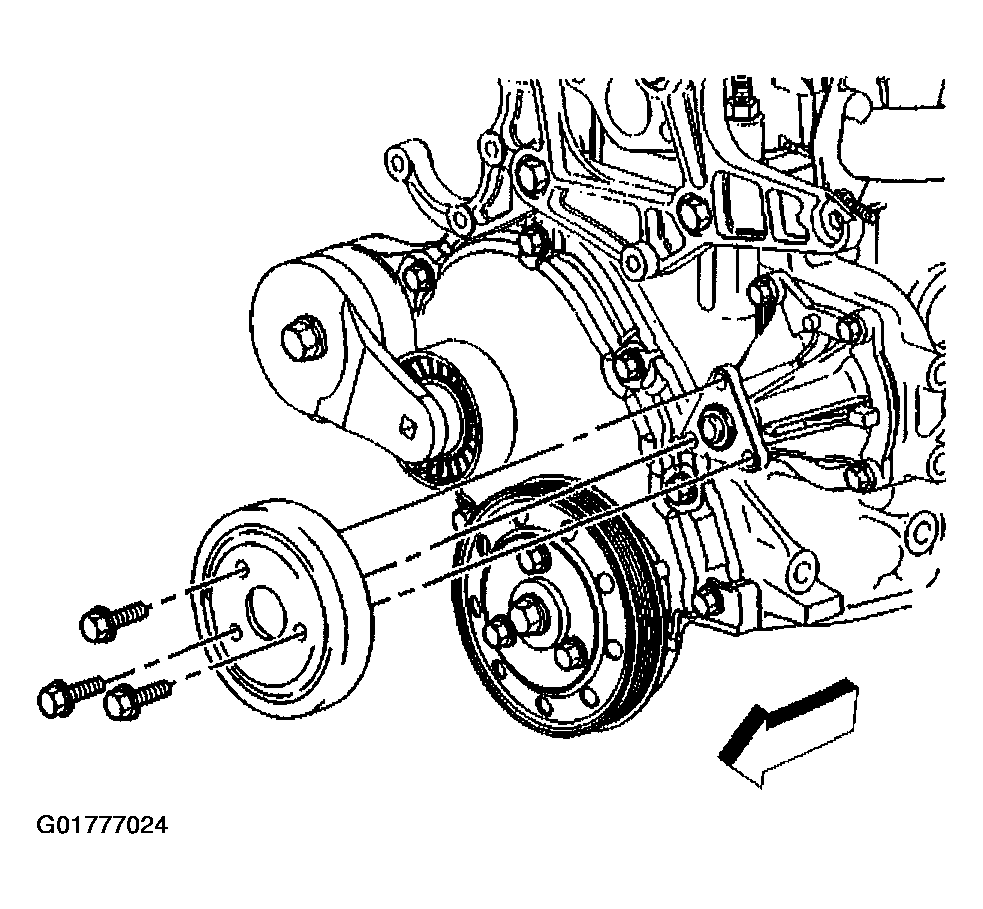

    Fig 3: Water Pump Pulley
    G01777024Courtesy of GENERAL MOTORS CORP.
