Valve Rocker Arm Cover - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator outlet pipe.

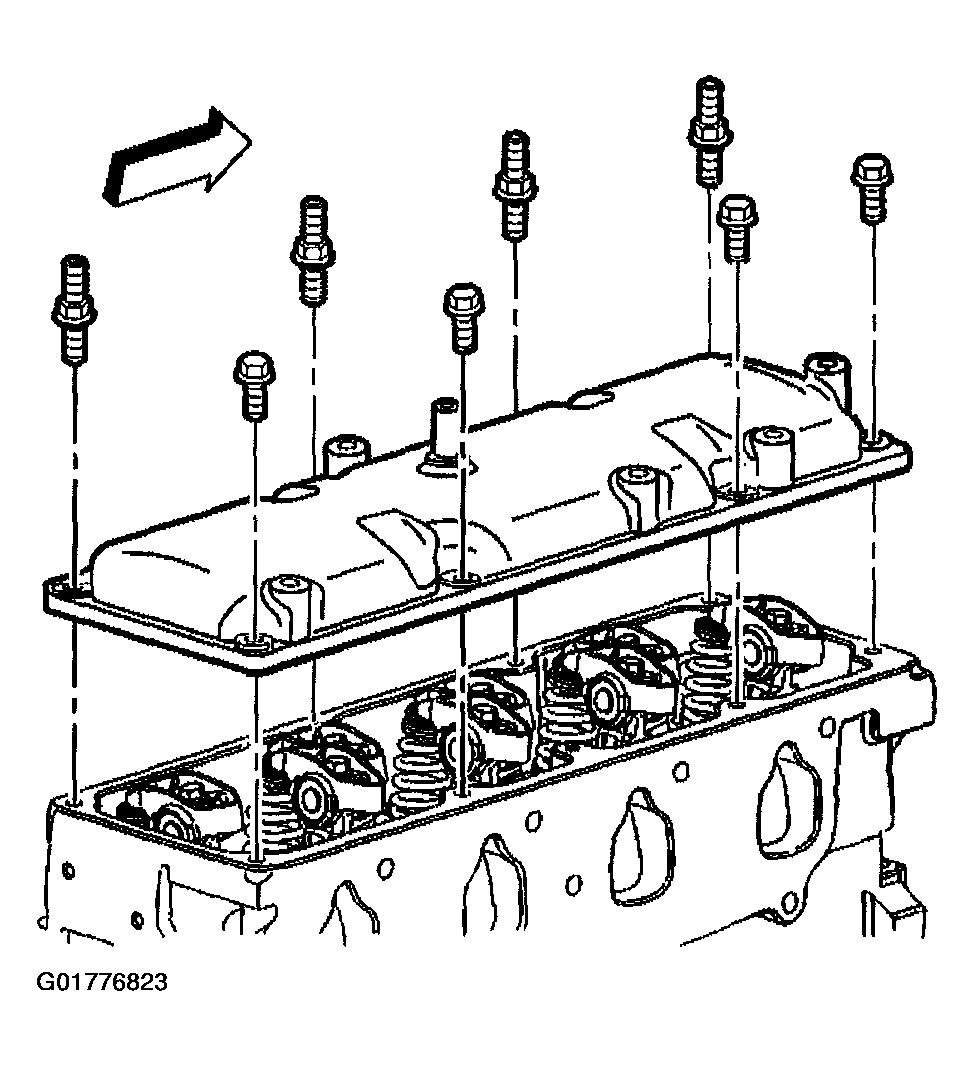

    Fig 1: Rocker Arm Cover Bolts
    G01776823Courtesy of GENERAL MOTORS CORP.
  2. Remove the rocker arm cover bolts.
  3. Remove the rocker arm cover.
  4. Remove the rocker arm cover gasket.
