Valve Rocker Arm Cover - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the sealing surfaces where the cylinder head and the rocker arm cover meet. Use a suitable cleaning solvent.
  2. Inspect the sealing flanges of the rocker arm cover for distortion.
  3. Install the new rocker arm cover gasket in the groove around the rocker arm cover.
  4. Install the rocker arm cover to the cylinder head.

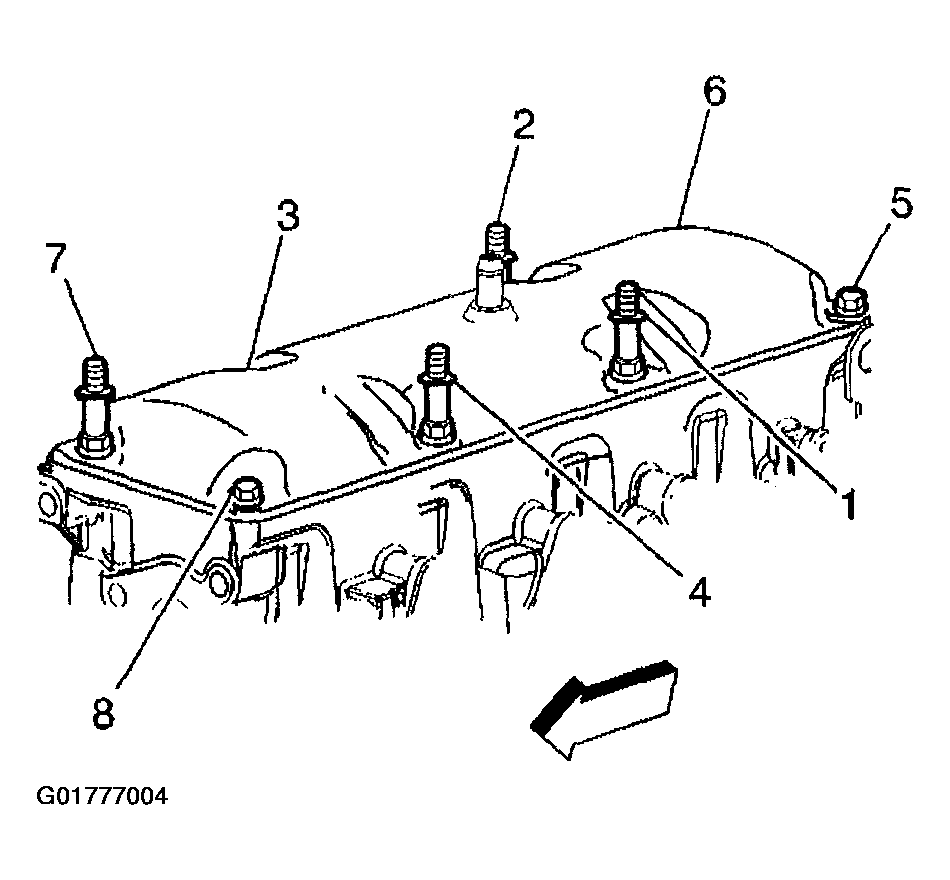

  5. Install the rocker arm cover bolts in sequence (1-8). Tighten the rocker arm cover bolts to 10 N.m (89 in lbs).
    Fig 1: Rocker Arm Cover
    G01777004Courtesy of GENERAL MOTORS CORP.

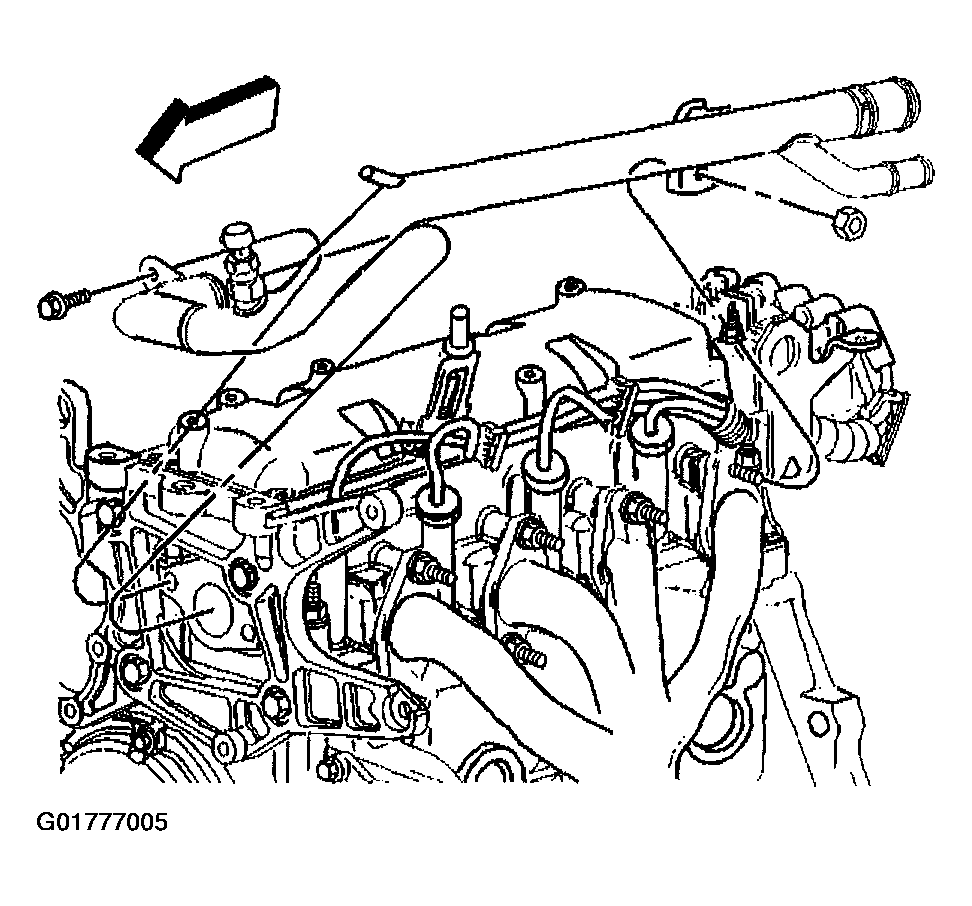

  6. Install the radiator outlet pipe. Tighten the radiator pipe bolt to 25 N.m (18 ft lbs).
    Fig 2: Radiator Outlet Pipe
    G01777005Courtesy of GENERAL MOTORS CORP.
