Timing Chain & Sprockets - Installation

Tools Required: J 5590  Crankshaft Gear Installer

Important:  Install crankshaft sprocket alignment key.

If any of the camshaft drive components are being replaced to correct a noise condition, replace all of the components in the camshaft drive system.

1. Install crankshaft sprocket alignment key.
2. Install the crankshaft sprocket using J 5590  . Make sure that the crankshaft sprocket is seated against the crankshaft.

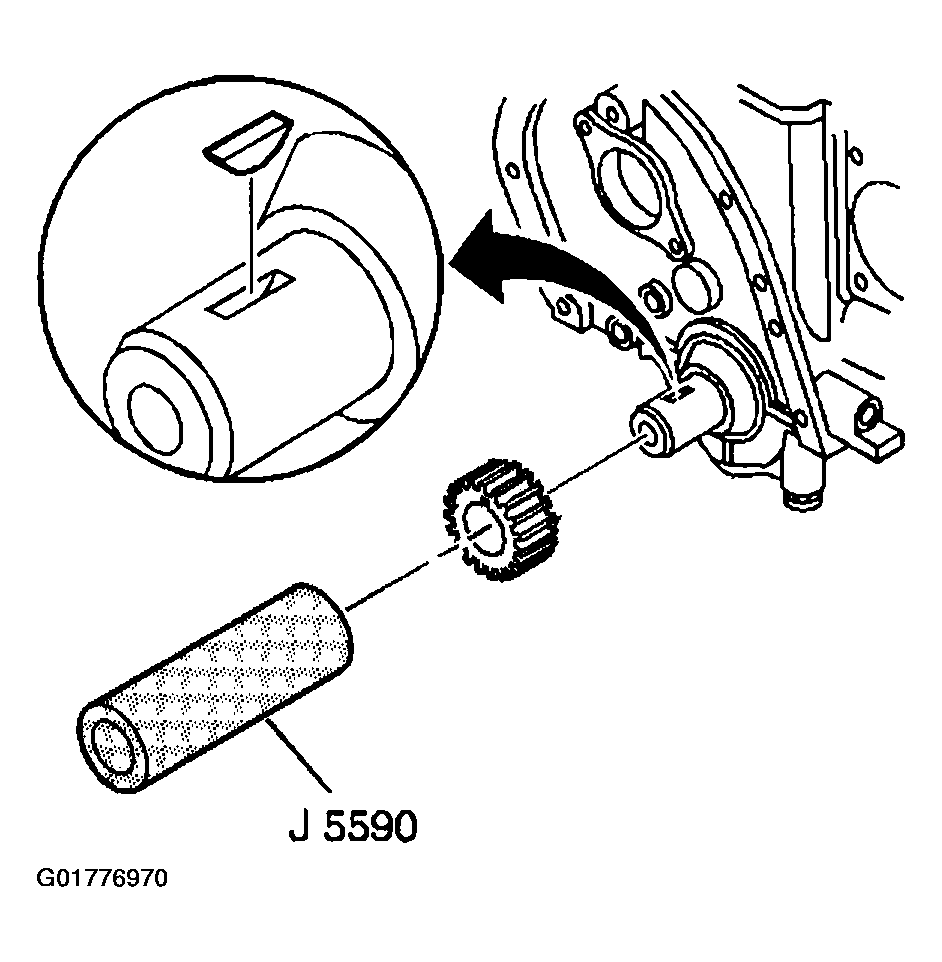

Fig 1: Installing Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
3. Install the timing chain and install the timing chain tensioner.
4. Compress the timing chain tensioner spring.
5. Insert a cotter pin or a nail into the hole in the tensioner to retain the timing chain tensioner shoe.

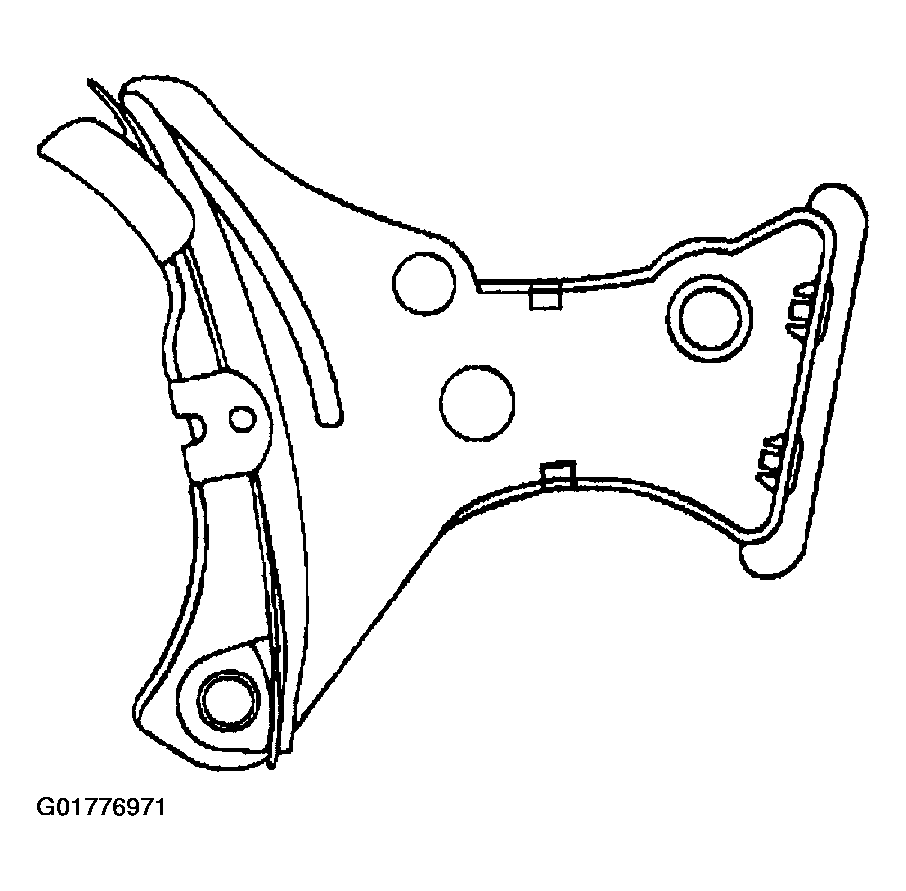

   Fig 2: Timing Chain Tensioner Shoe

   Courtesy of GENERAL MOTORS CORP.
6. Install the timing chain tensioner. Do not tighten the timing chain tensioner bolts.

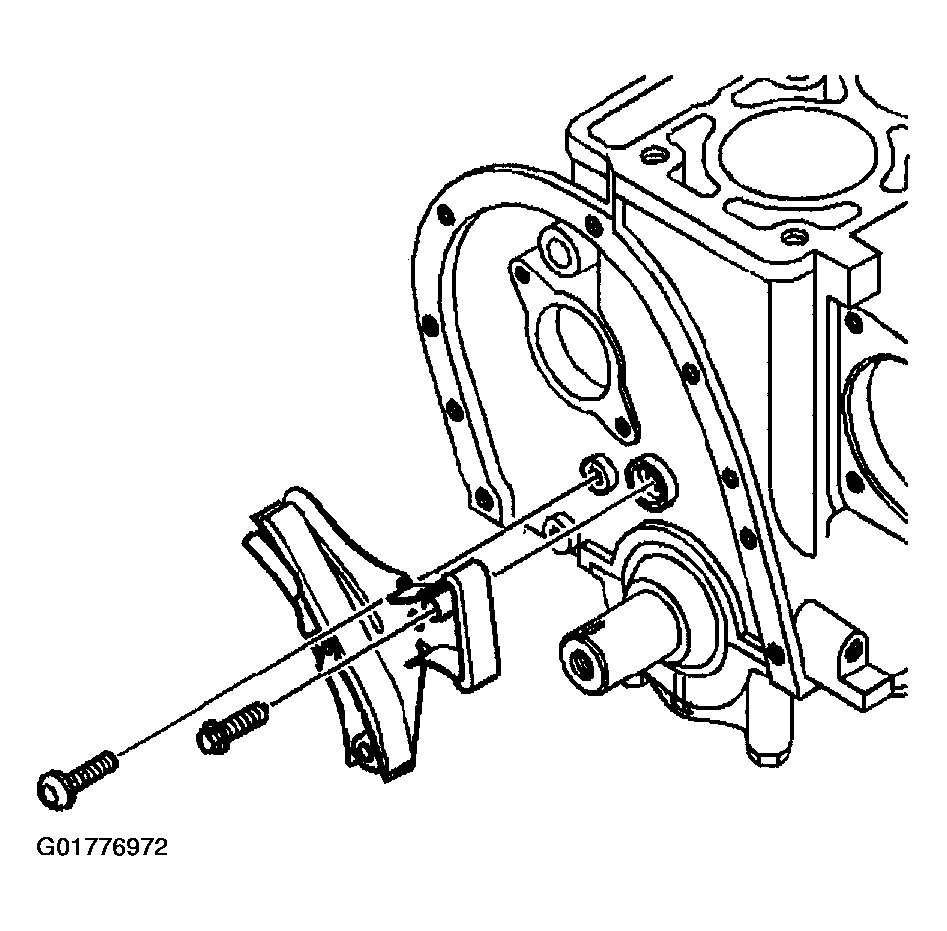

   Fig 3: Timing Chain Tensioner

   Courtesy of GENERAL MOTORS CORP.
7. Align the crankshaft sprocket timing mark with the tab on the timing chain tensioner.
8. Align the camshaft sprocket timing mark with the tab on the timing chain tensioner.
9. Install the camshaft sprocket and install the timing chain.
   • Tighten the timing chain tensioner bolts to 24 N.m (18 ft lbs).
   • Tighten the camshaft sprocket bolt to 130 N.m (96 ft lbs).
10. Remove the cotter pin or nail from the hole in the timing chain tensioner.
