Piston & Connecting Rod - Disassemble
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required: J 24086-C Piston Pin Remover/Installer
CAUTION:
Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.
- Disassemble the piston rings. Use a suitable tool in order to expand the rings. Piston rings must not be reused.
Important: Ensure that no load is put on the piston during disassembly.

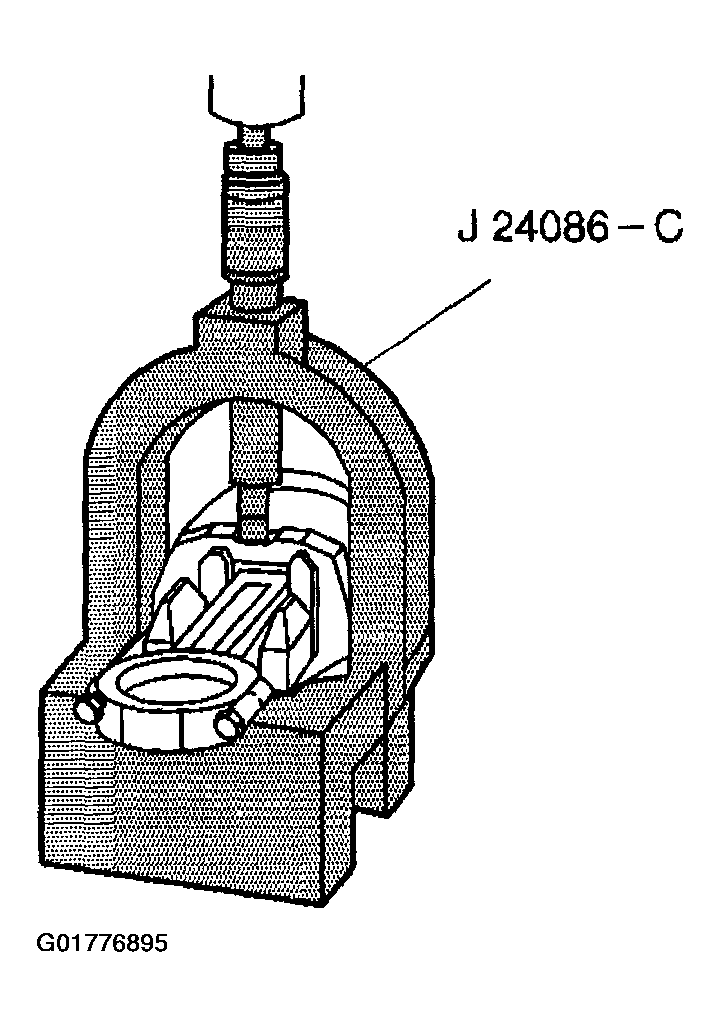

- Place the piston and the connecting rod assembly into the J 24086-C and press out the piston pin. Ensure that the flat side or inside of the piston is up when installing the piston and rod assembly into the fork.
