Piston & Connecting Rod - Assemble
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required: J 24086-C Piston Pin Remover/Installer Set
- Place the piston and connecting rod into the J 24086-C
.
Important: Ensure that the arrow on top of the piston faces towards the front of the engine.

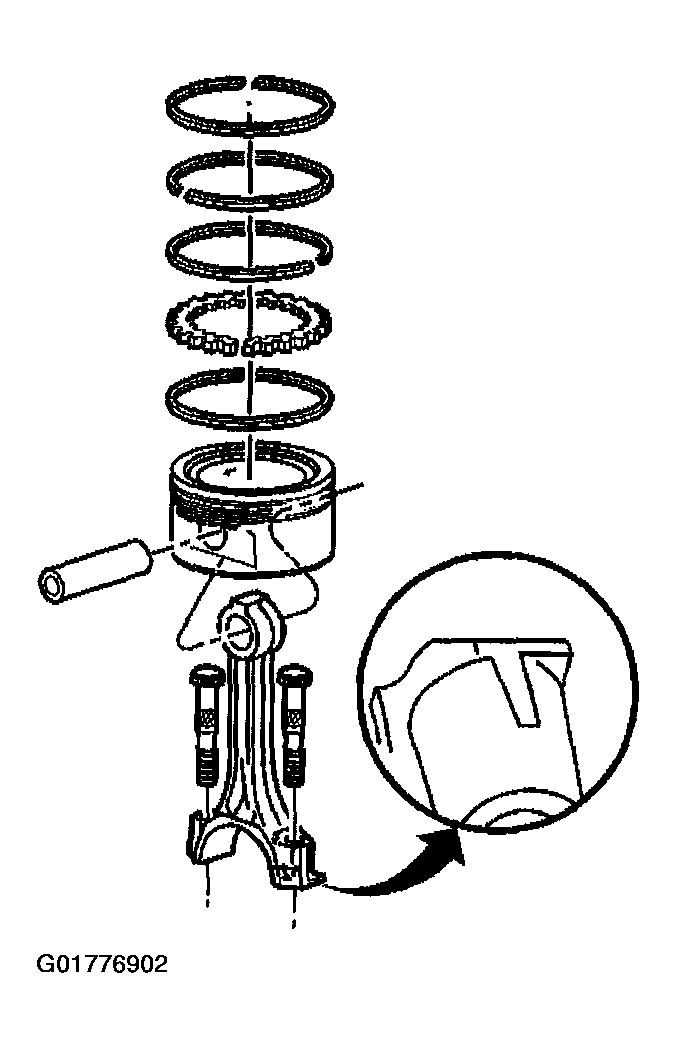

- Orient the connecting rod in the piston.
- Examine the lower end of the connecting rod.
- Locate the bump on the connecting rod lower end.
- This bump is at the top of the large end where it forms the connecting rod beam.
- Orient the connecting rod so that the bump faces away from the arrow on top of the piston.
- With the connecting rod in this position, the tab on the connecting rod cap faces the front of the engine.
- Coat the piston pin with clean engine oil.
- Press the piston pin into place.
- Inspect the piston for freedom of movement.
- Install the following parts of the oil control ring assembly:
- The expander.
- The lower oil control ring.
- The upper oil control ring.
NOTE: Use a piston ring expander to install the piston rings. The rings may be damaged if expanded more than necessary.Important: In order to provide an effective compression seal, the ring gaps must be staggered.
- Install the second compression ring with the manufacturer's mark facing up.
- Install the top compression ring, it can be installed with either side facing up.
