Oil Pump - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive bolt.

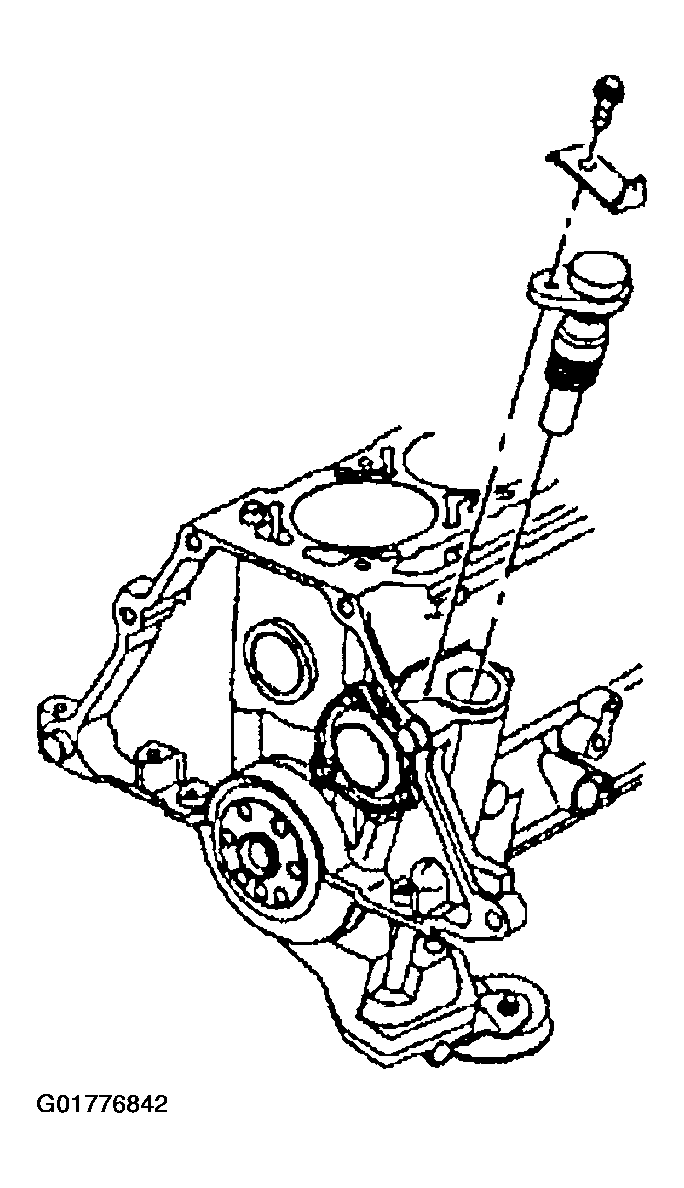

    2. Fig 1: Oil Pump Drive
    G01776842Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pump drive. Do this by lifting and turning the oil pump drive.

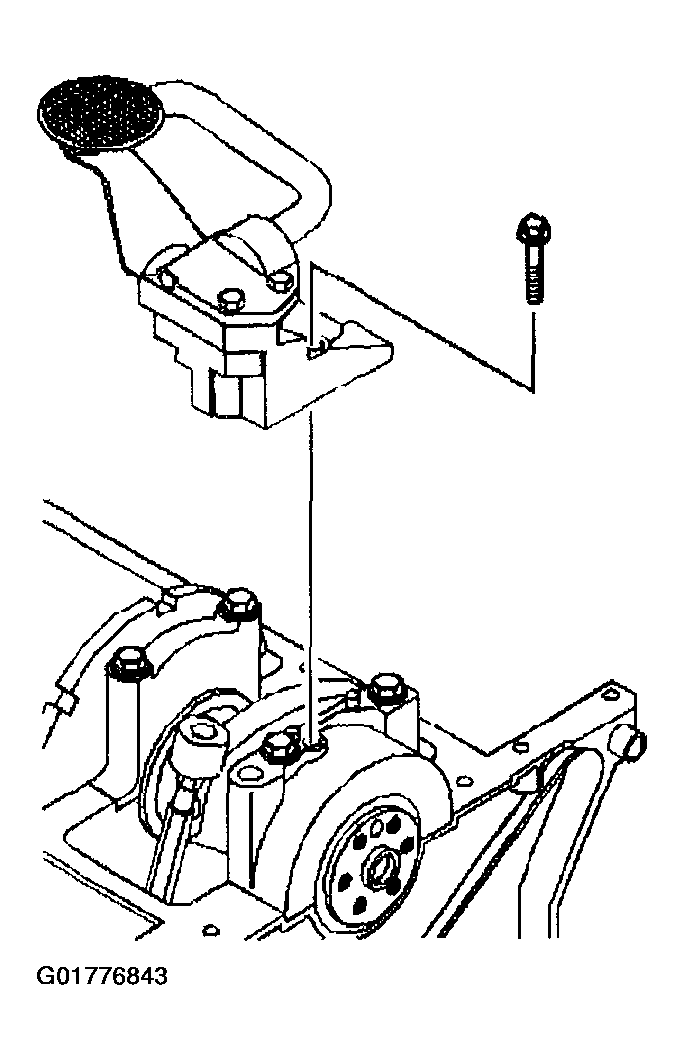

    Fig 2: Oil Pump
    G01776843Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt that attaches the oil pump to the rear main bearing cap.
  4. Remove the oil pump.

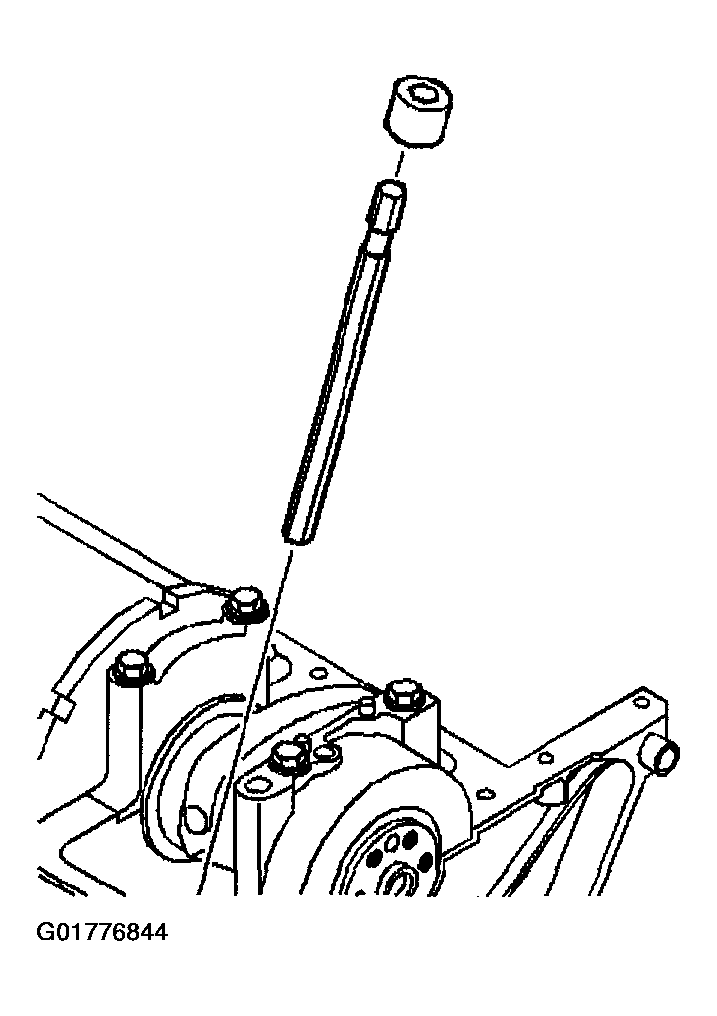

    Fig 3: Oil Pump Drive Shaft
    G01776844Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil pump drive shaft.

    Important:  Do not crack the oil pump drive shaft retainer.

  6. Remove the oil pump drive shaft retainer.

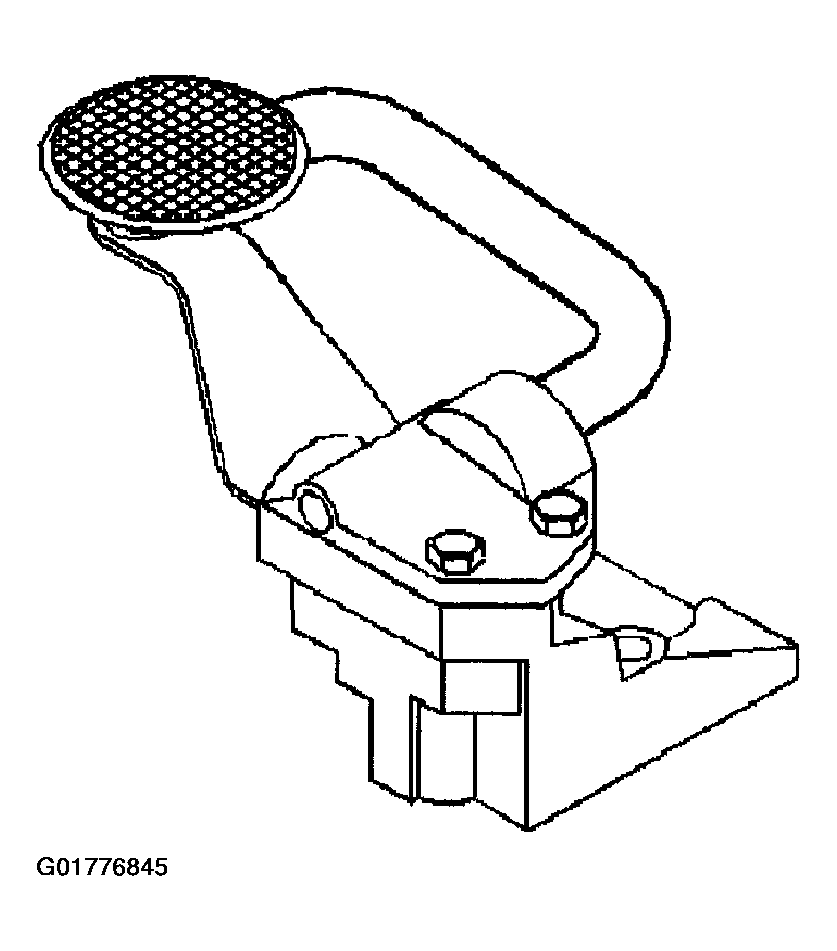

    Fig 4: Oil Pump Assembly
    G01776845Courtesy of GENERAL MOTORS CORP.

    Important:  A loose oil pump tube can cause an air leak and a loss of oil pressure.

  7. Inspect the oil pump pickup tube for looseness.
