Oil Pan - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil pan bolts.

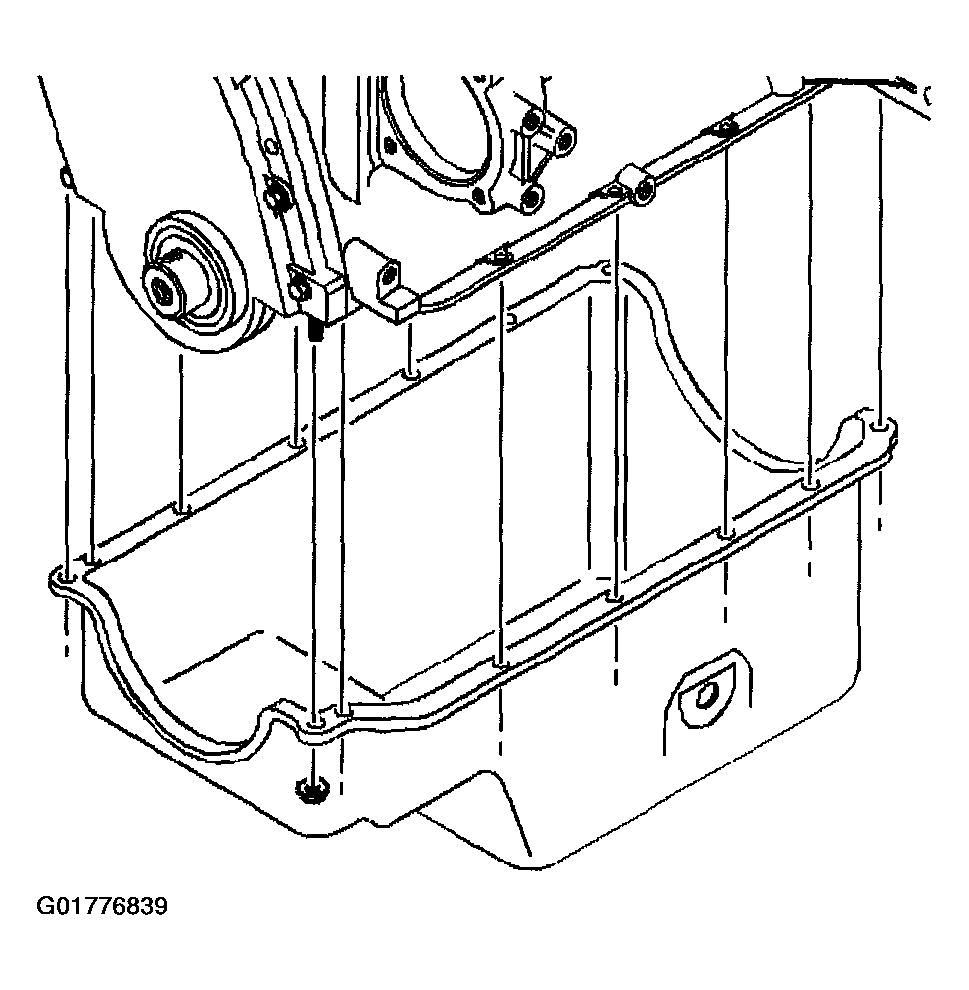

Fig 1: Oil Pan
Courtesy of GENERAL MOTORS CORP.
Remove the oil pan nuts.
Remove the oil pan. Use a narrow putty knife in order to separate the oil pan from the engine block.

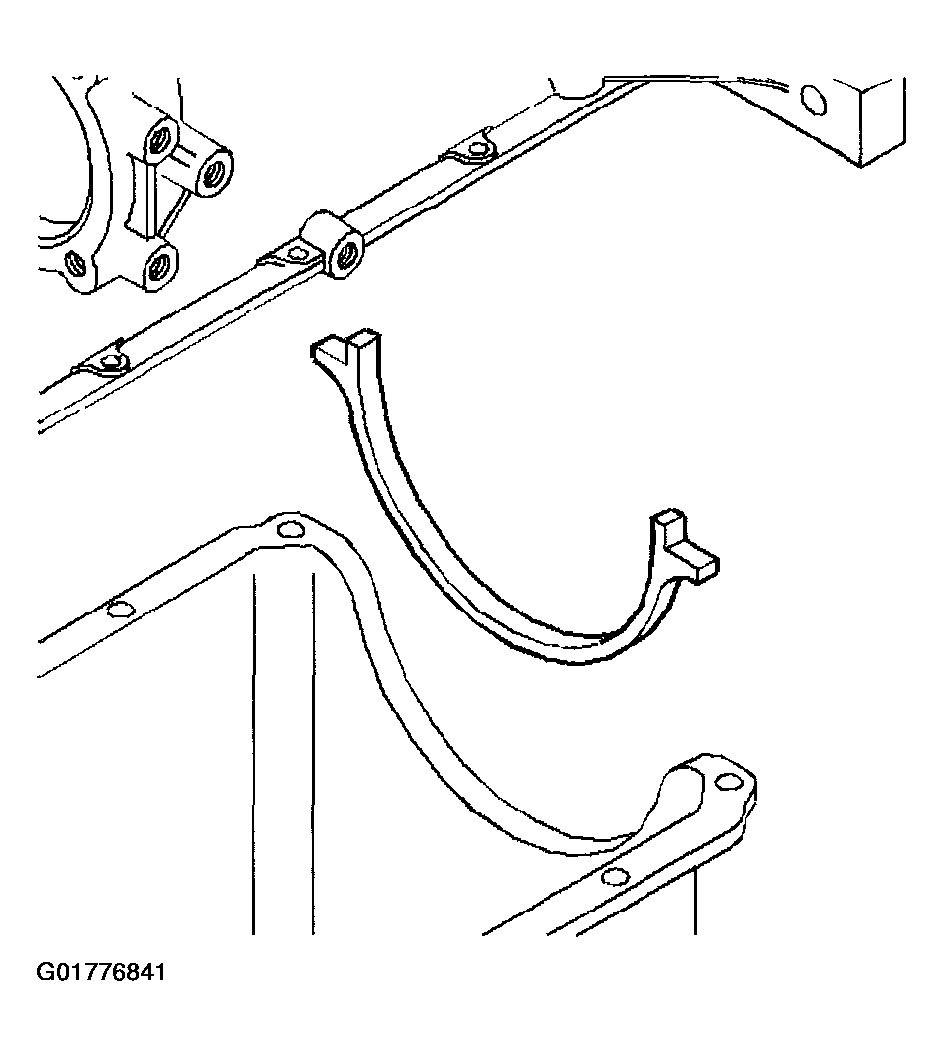

Fig 2: Oil Pan Rear Oil Seal
Courtesy of GENERAL MOTORS CORP.
Remove the oil pan rear oil seal.
