Oil Pan - Cleaning & Inspection

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pan mating surface.
  2. Clean the oil pan. Remove all sludge and oil deposits.
  3. Inspect the threads for the engine oil drain plug.
  4. Inspect the oil pan for dents or distortion.
  5. Repair or replace the oil pan if necessary.

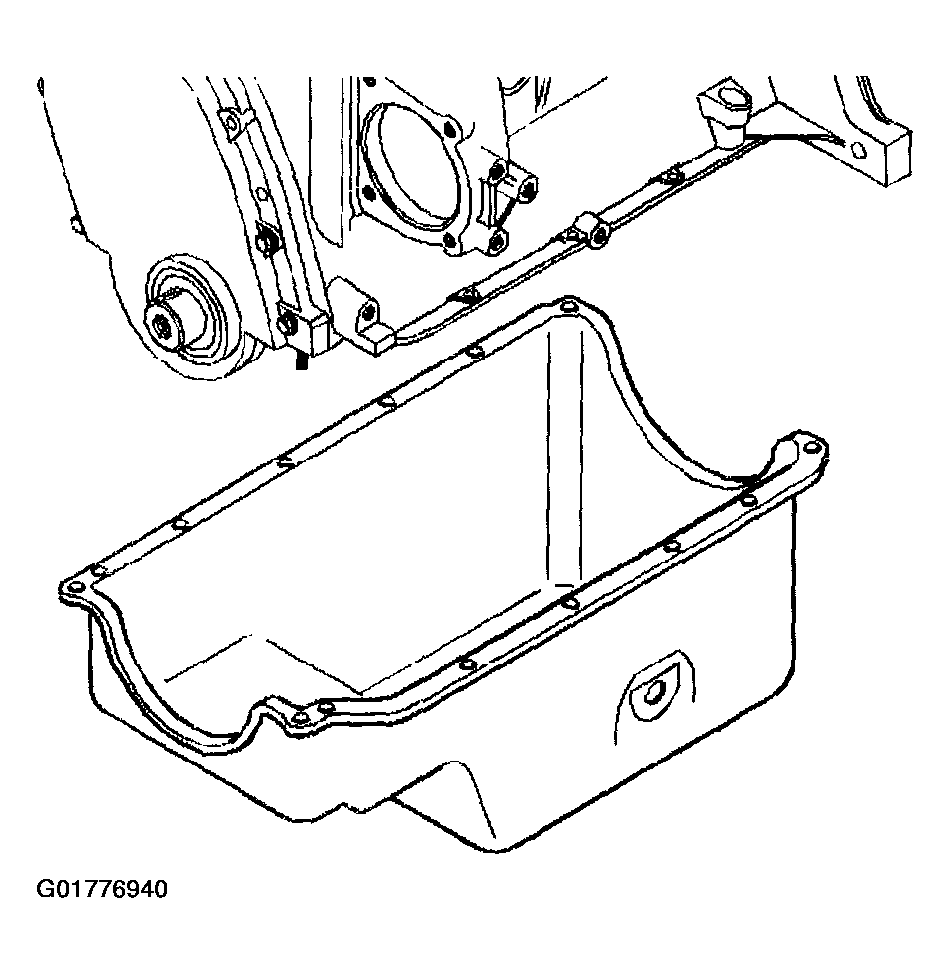

    Fig 1: Oil Pan Assembly
    G01776940Courtesy of GENERAL MOTORS CORP.
