Intake Manifold Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle cable support bracket and throttle body.
  2. Remove the throttle body.

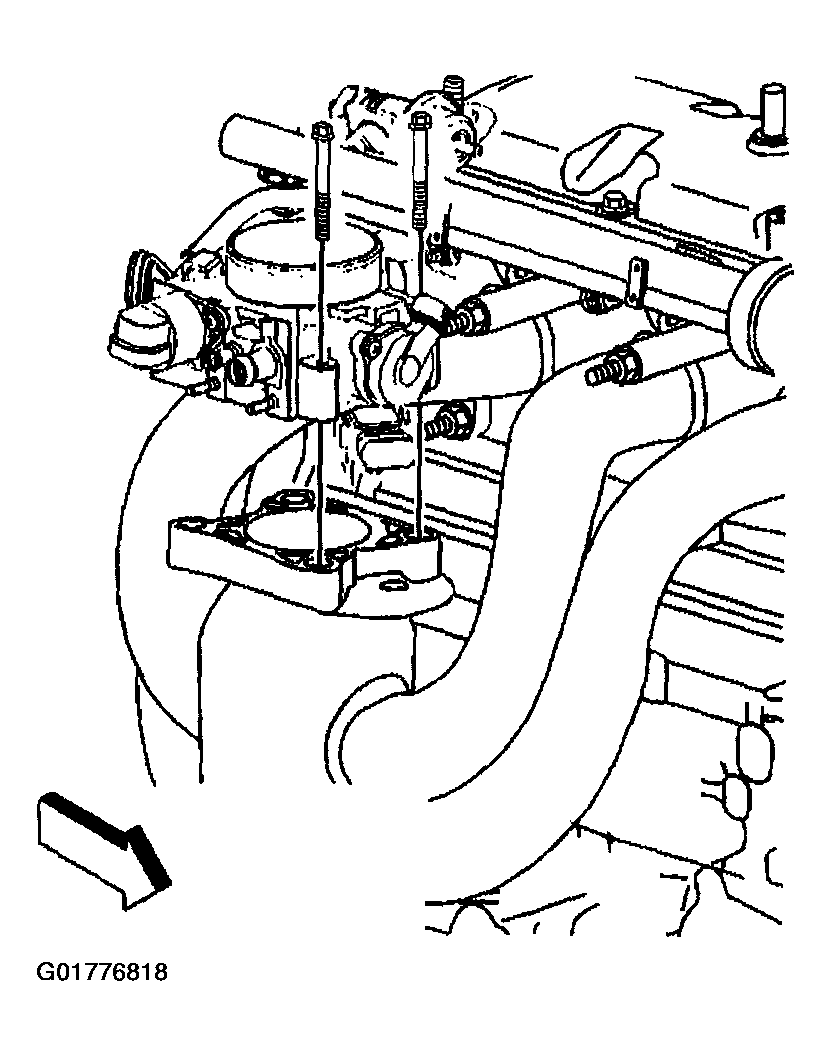

    Fig 1: Throttle Body
    G01776818Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake manifold bolts.

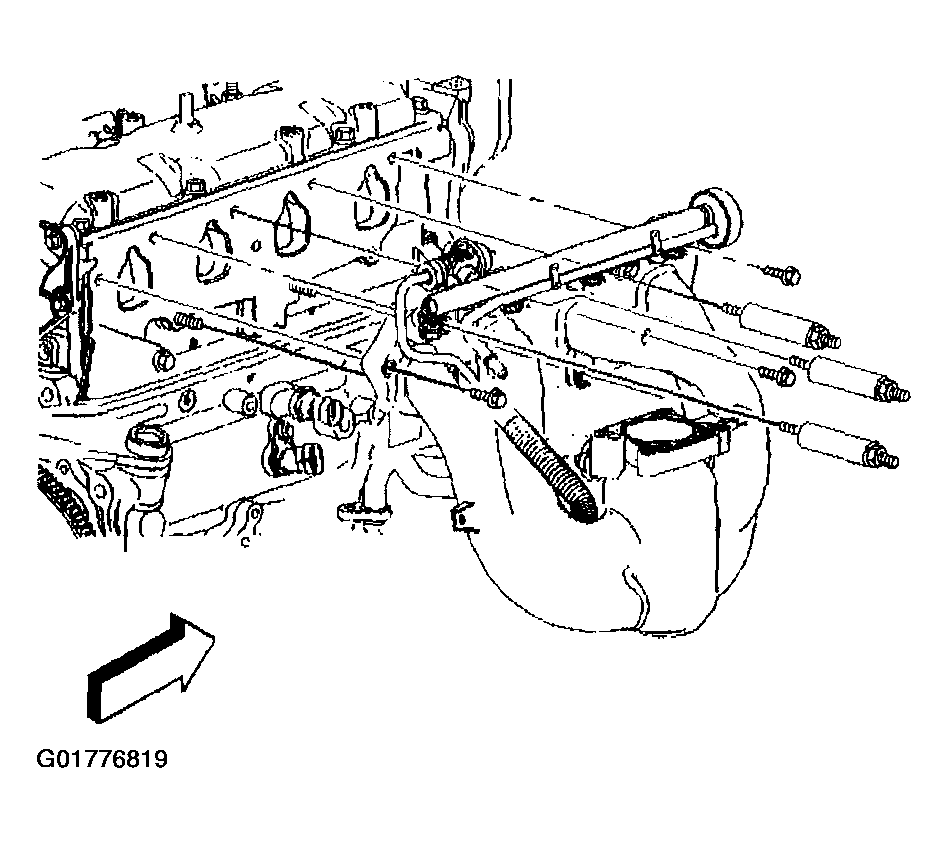

    4. Fig 2: Intake Manifold Bolts
    G01776819Courtesy of GENERAL MOTORS CORP.
  4. Remove the fuel rail bracket.
  5. Remove the intake manifold nuts.
  6. Remove the intake manifold.
