Intake Manifold - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intake manifold gasket.
  2. Install the intake manifold.

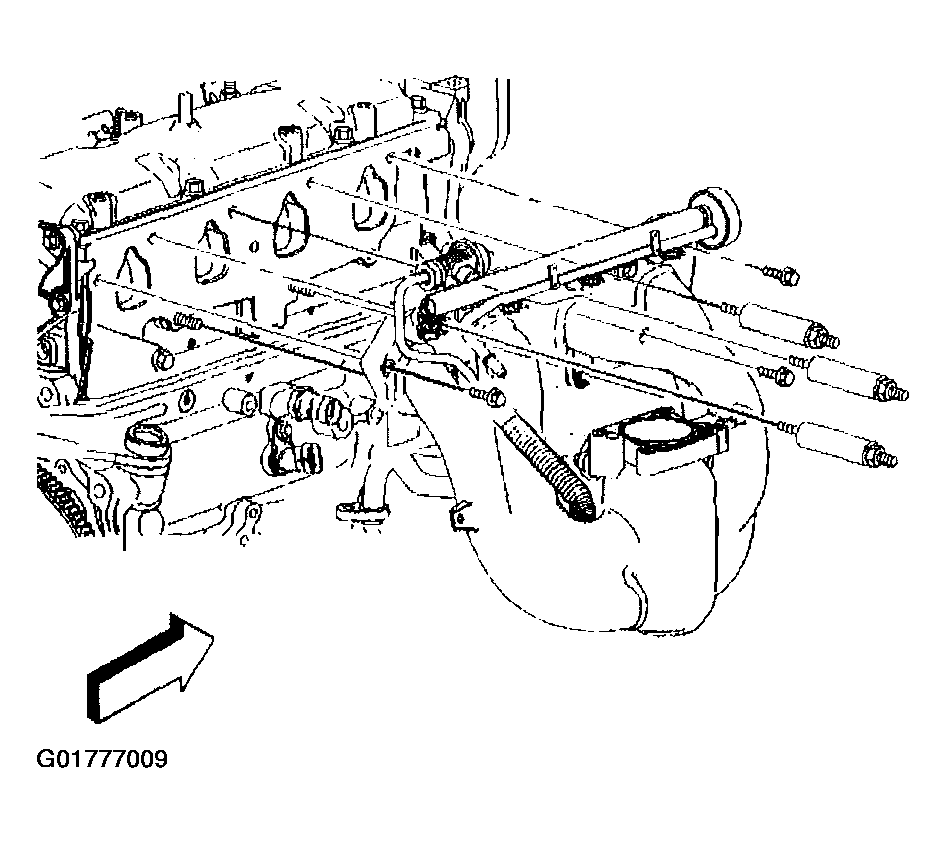

    Fig 1: Intake Manifold Assembly
    G01777009Courtesy of GENERAL MOTORS CORP.
  3. Install the intake manifold bolts. Tighten the bolts in sequence to 24 N.m (17 ft lbs).
    Fig 2: Intake Manifold Bolt Tightening Sequence
    G01777010Courtesy of GENERAL MOTORS CORP.
  4. Install the throttle body to the intake manifold. Tighten the throttle body to intake manifold bolts to 10 N.m (89 in lbs).

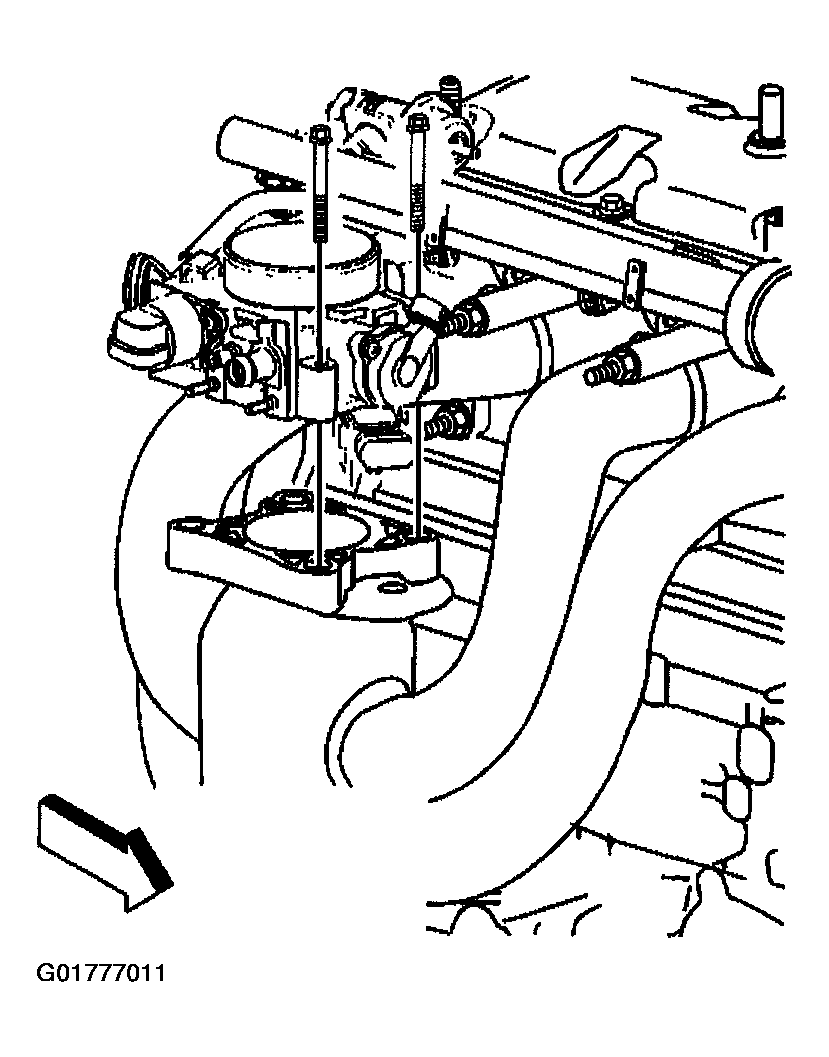

    Fig 3: Throttle Body Assembly
    G01777011Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel rail bracket.
