Exhaust Manifold - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oxygen sensor from the exhaust manifold to prevent damage to the sensor.

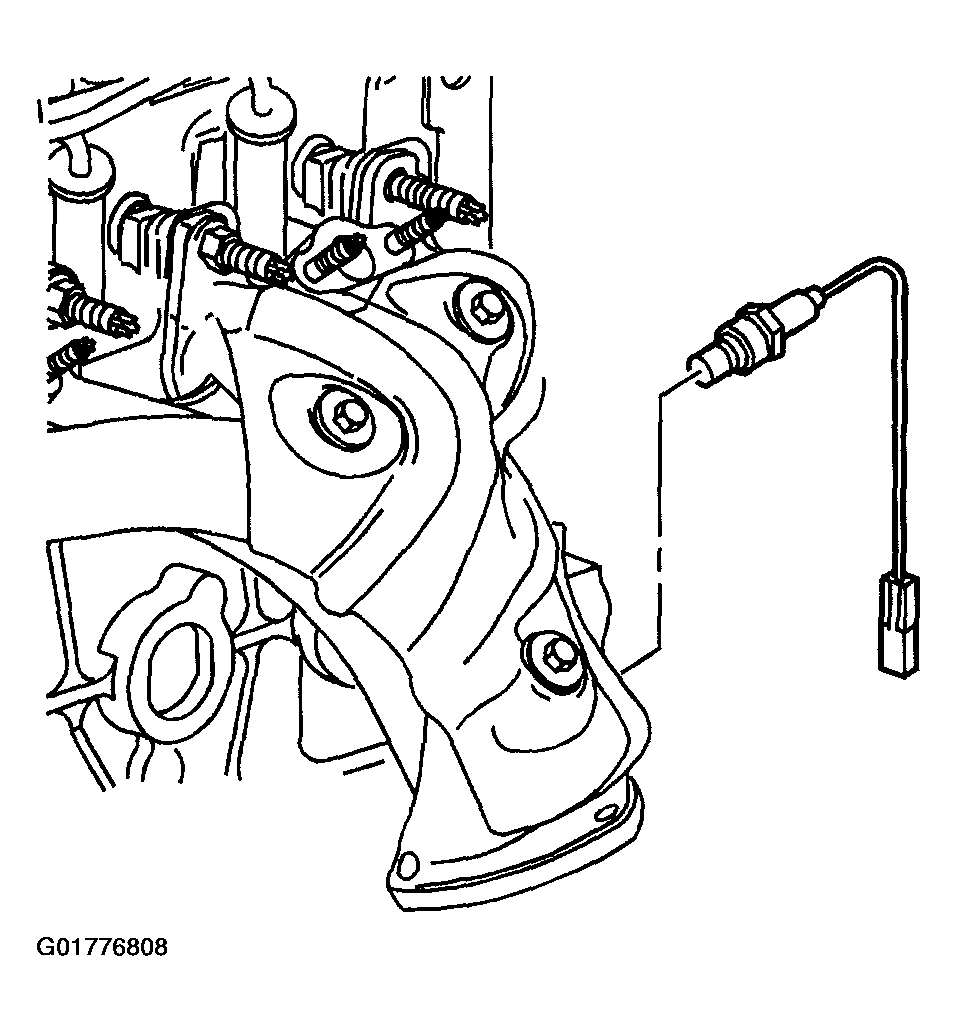

    2. Fig 1: Oxygen Sensor
    G01776808Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold nuts.

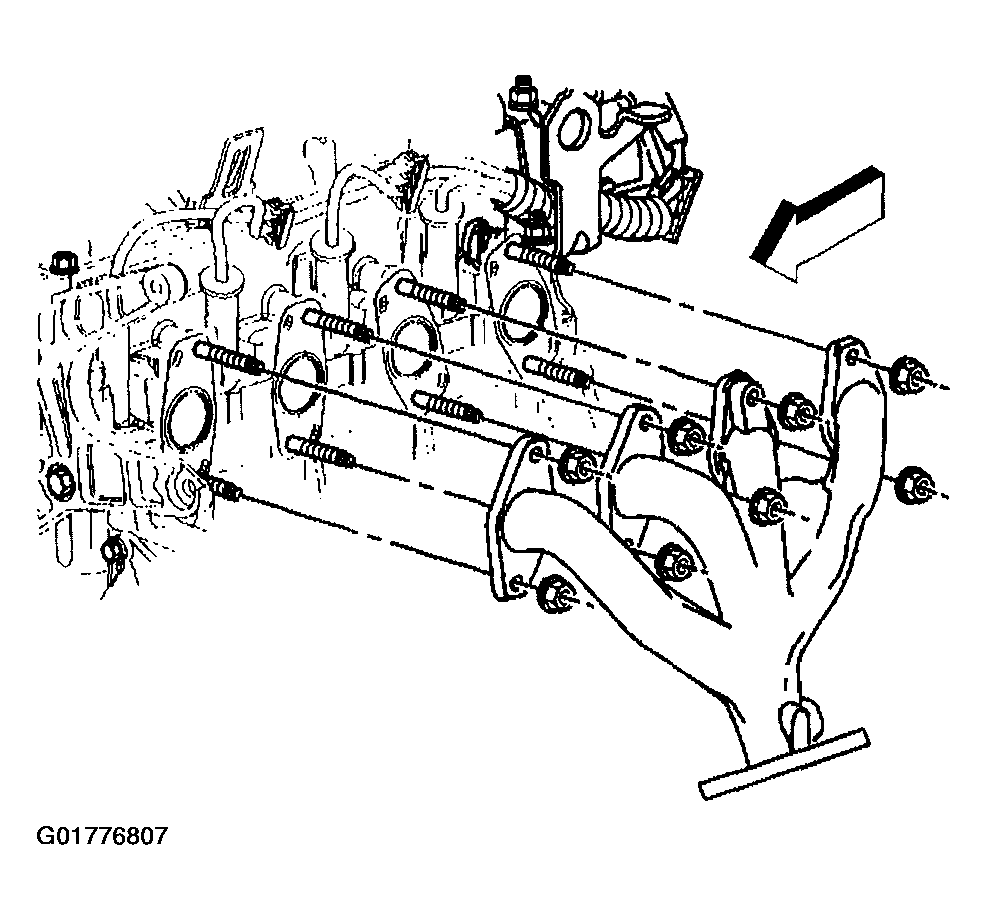

    3. Fig 2: Exhaust Manifold Nuts
    G01776807Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold.
  4. Remove the exhaust manifold nuts gasket.
