Exhaust Manifold - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold gasket and exhaust manifold.
  2. Install the exhaust manifold nuts. Tighten the exhaust manifold nuts to 13 N.m (118 in lbs).

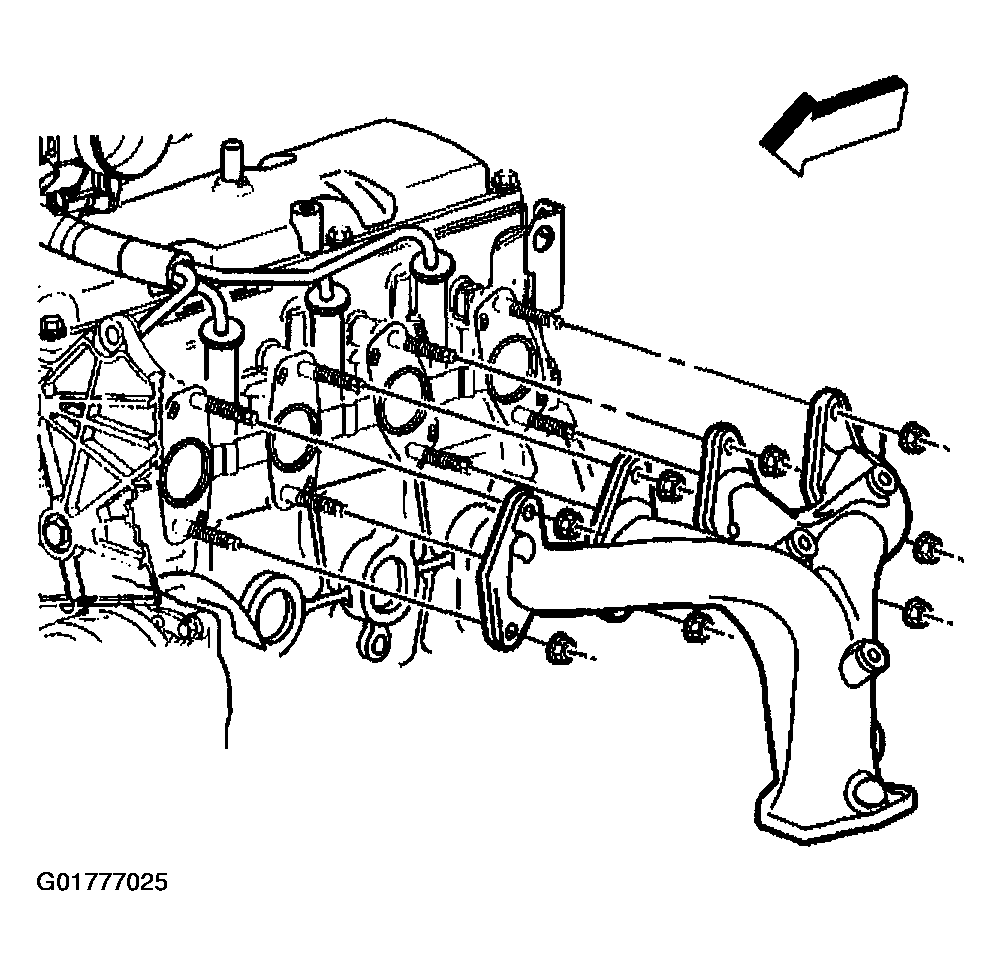

    Fig 1: Exhaust Manifold Assembly
    G01777025Courtesy of GENERAL MOTORS CORP.
