Engine Front Cover - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt tensioner and bolt.

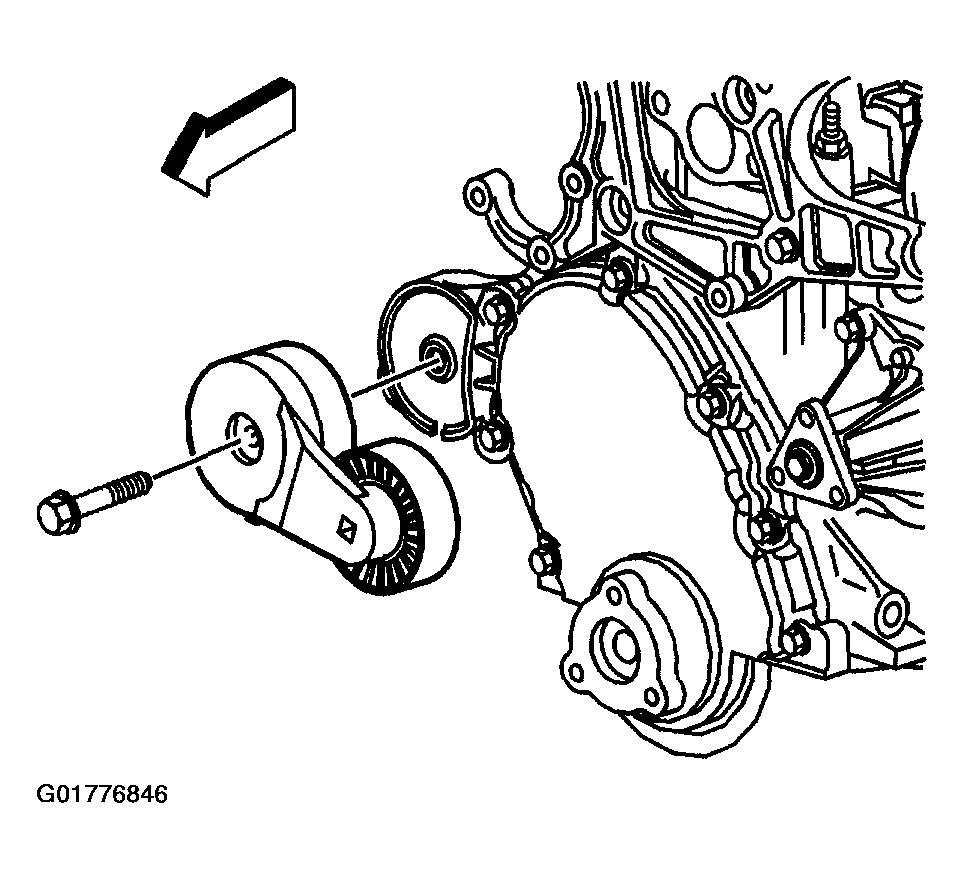

    Fig 1: Accessory Drive Belt Tensioner
    G01776846Courtesy of GENERAL MOTORS CORP.

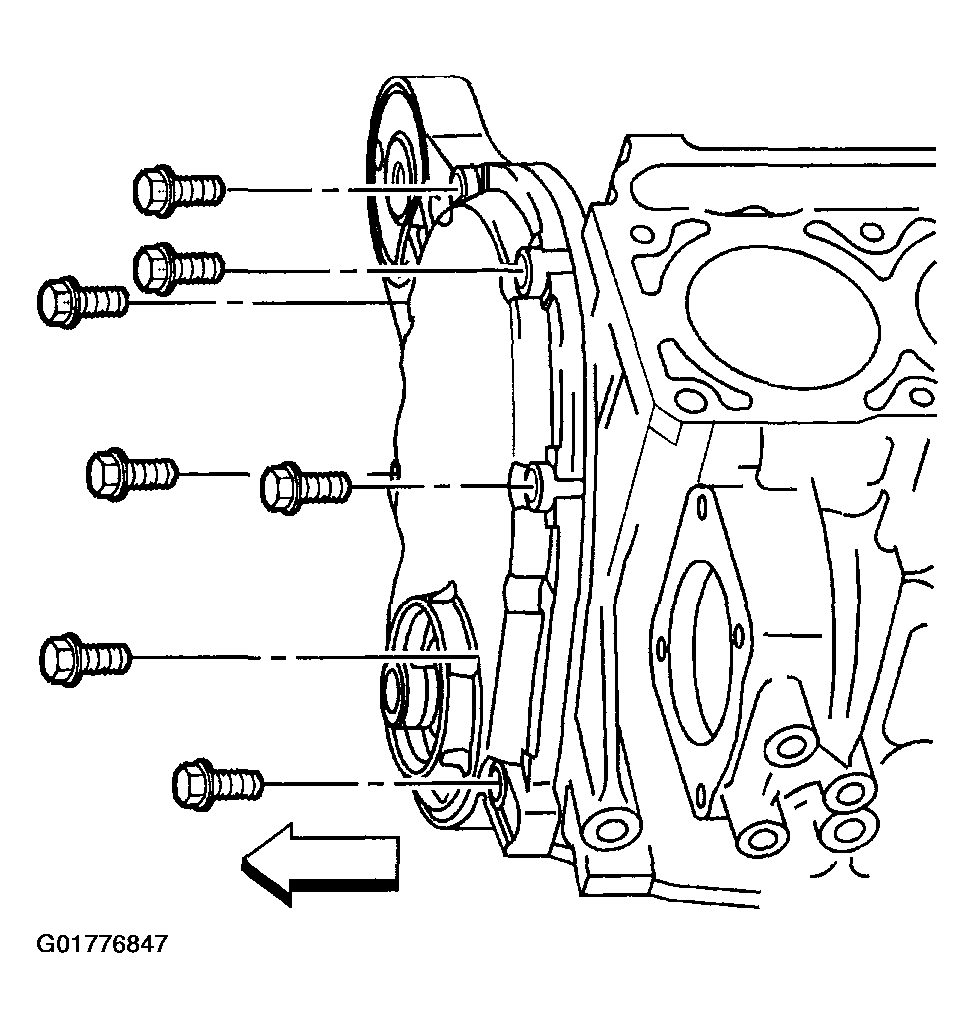

    Fig 2: Engine Front Cover Bolts
    G01776847Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine front cover bolts.

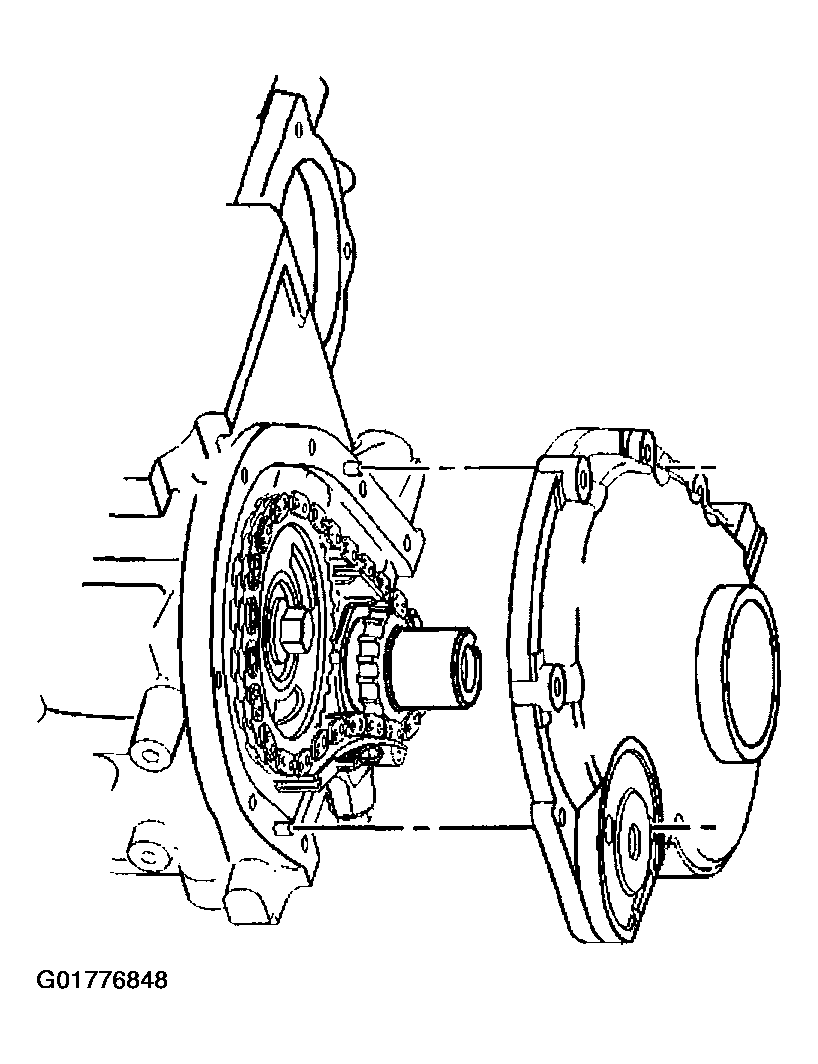

    Fig 3: Engine Front Cover & Gasket
    G01776848Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover and gasket.
