Engine Front Cover - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover to the engine block.
  2. Ensure that the engine front cover gasket is properly installed in the groove in the engine front cover.
  3. Install the engine front cover by hand and engage it fully on the alignment dowel pins.
  4. Install the engine front cover bolts. Tighten the engine front cover bolts to 11 N.m (97 in lbs).

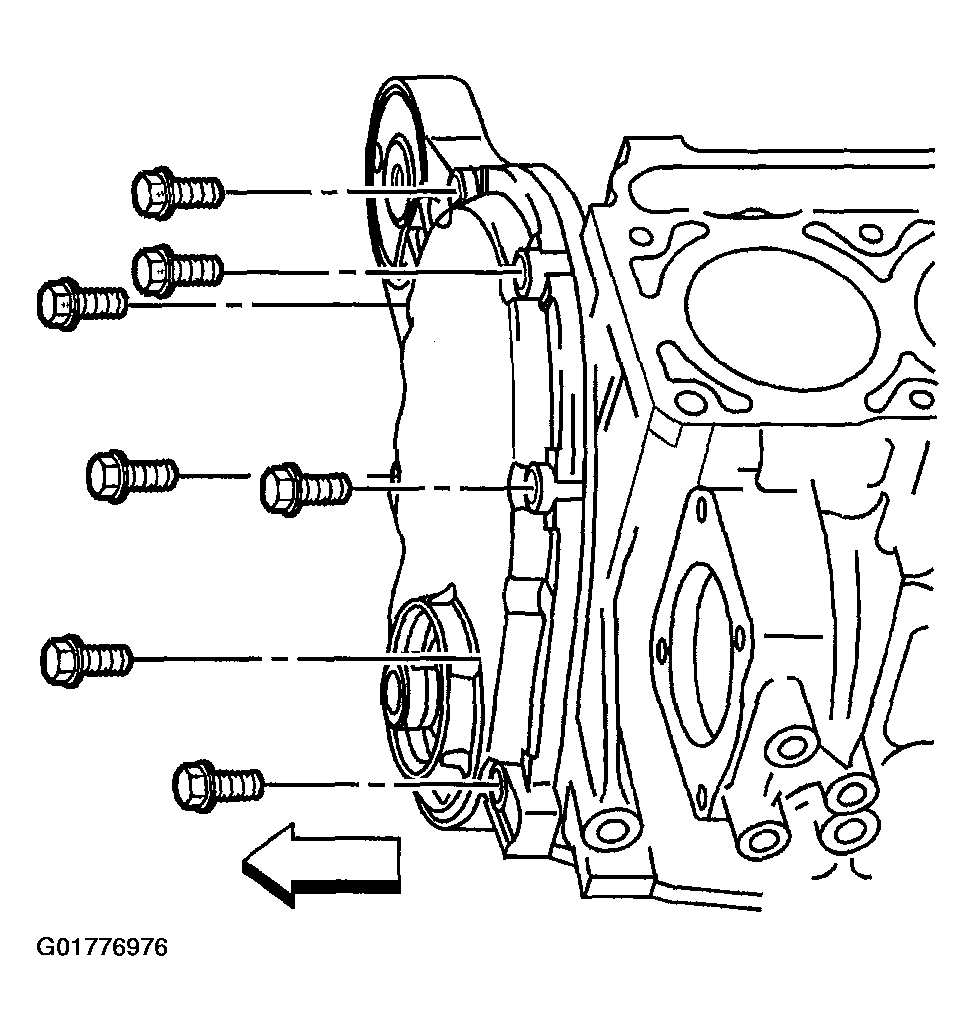

    Fig 1: Engine Front Cover Bolts
    G01776976Courtesy of GENERAL MOTORS CORP.
  5. Install the accessory drive belt tensioner and bolt. Tighten the accessory drive belt tensioner bolt to 50 N.m (37 ft lbs).

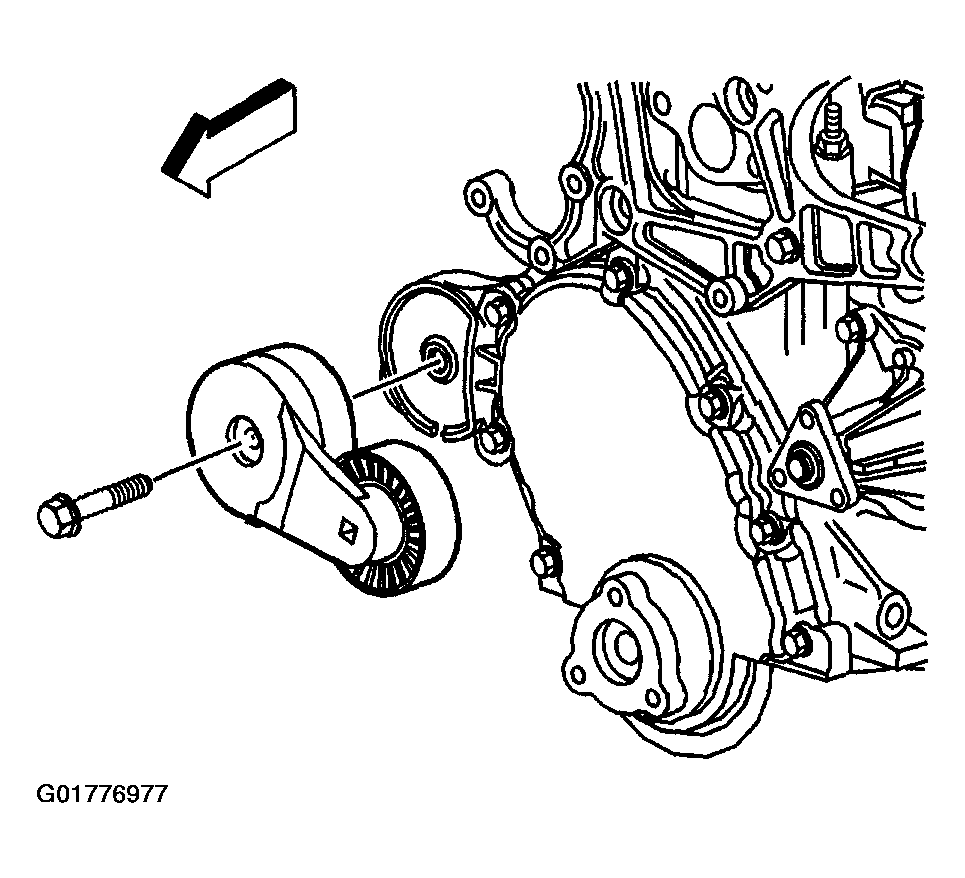

    Fig 2: Accessory Drive Belt Tensioner
    G01776977Courtesy of GENERAL MOTORS CORP.
