Engine Flywheel - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel bolts.

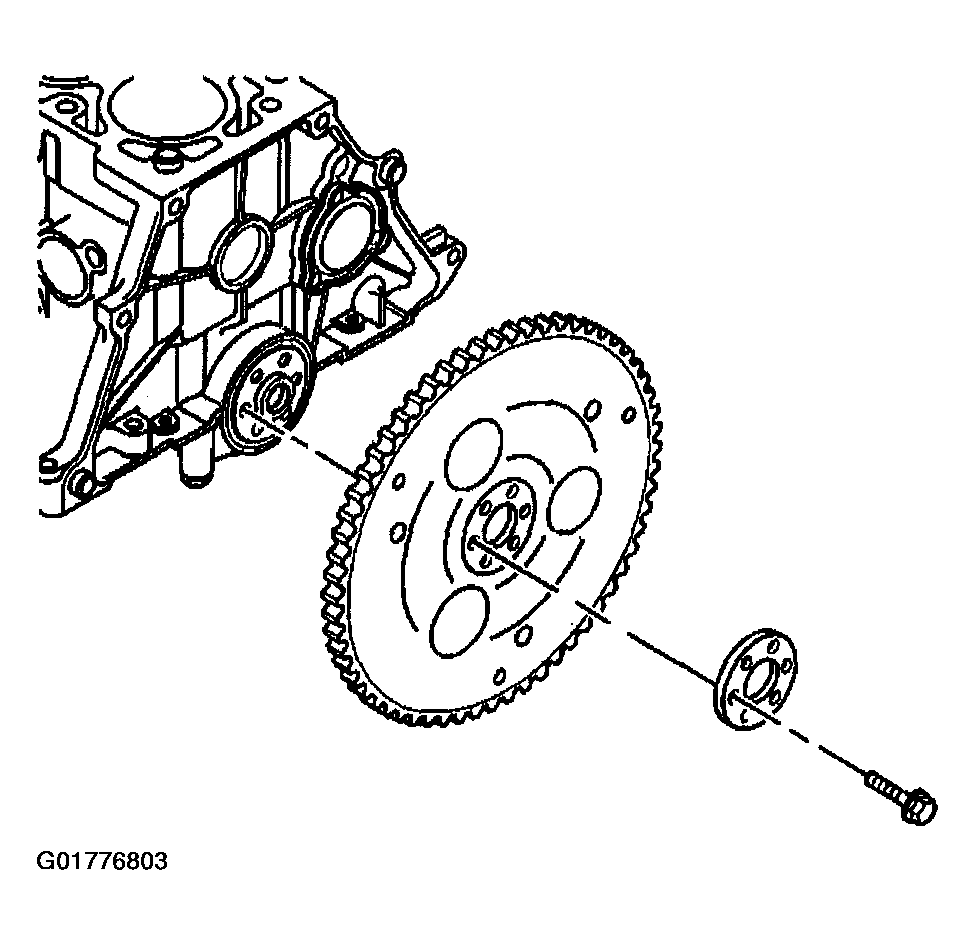

  2. Fig 1: Flywheel Bolts
    G01776803Courtesy of GENERAL MOTORS CORP.
  3. Remove the flywheel spacer if a flywheel spacer is used.

    Important:  If the flywheel is cracked or damaged replace the flywheel.

  4. Remove the flywheel.
