Engine Block Plug - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling jacket core plugs.
1. 1.1. Use a suitable self-threading screw.
2. 1.2. Drill a hole into the cooling jacket plug.
3. 1.3. Install the self-threading screw.
4. 1.4. Pry out the cooling jacket plug.

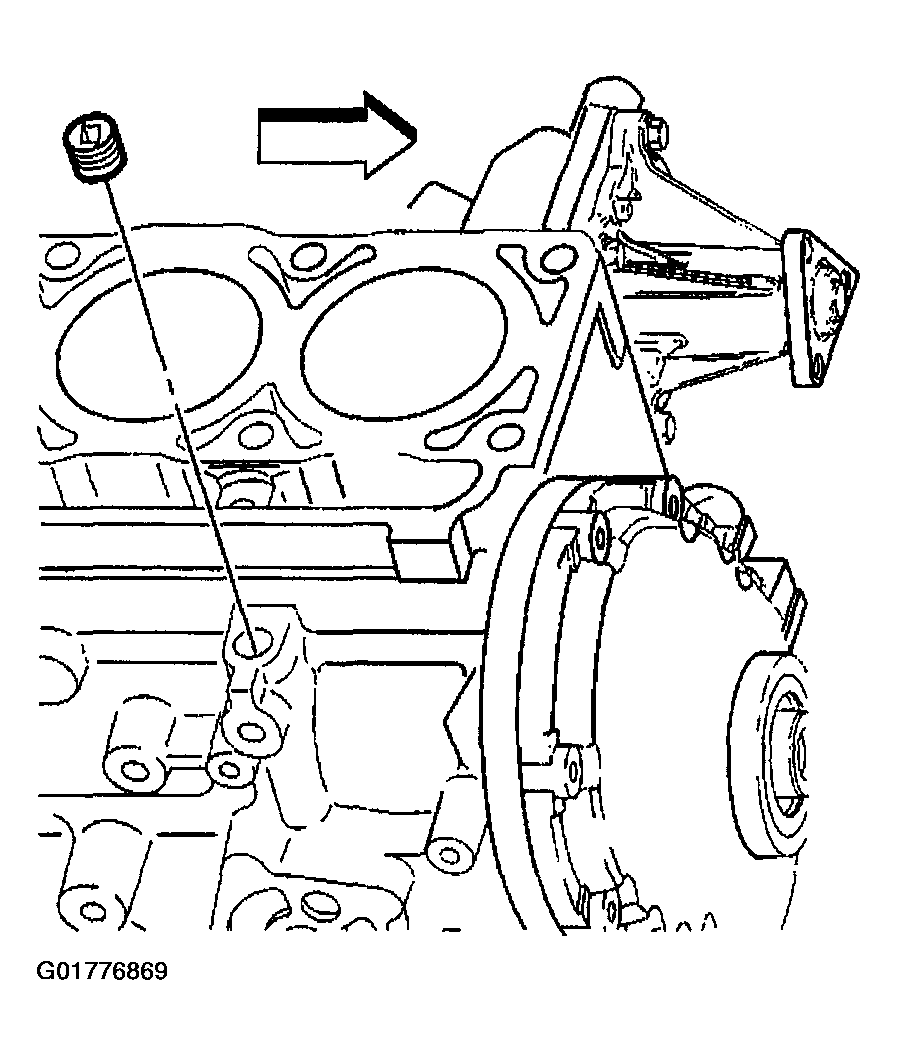

Fig 1: Cooling Jacket Drain Plug
Courtesy of GENERAL MOTORS CORP.
Remove the cooling jacket drain plug.

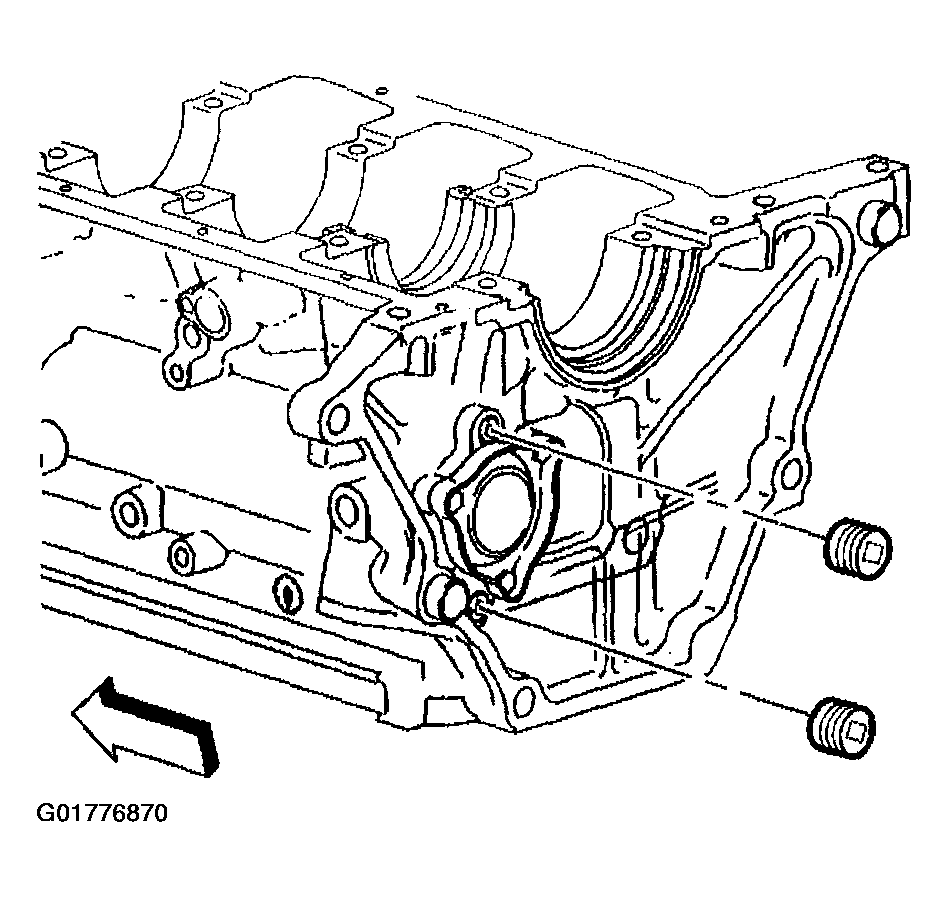

Fig 2: Right Side Oil Passage Plug
Courtesy of GENERAL MOTORS CORP.
Remove the right side oil passage plug.

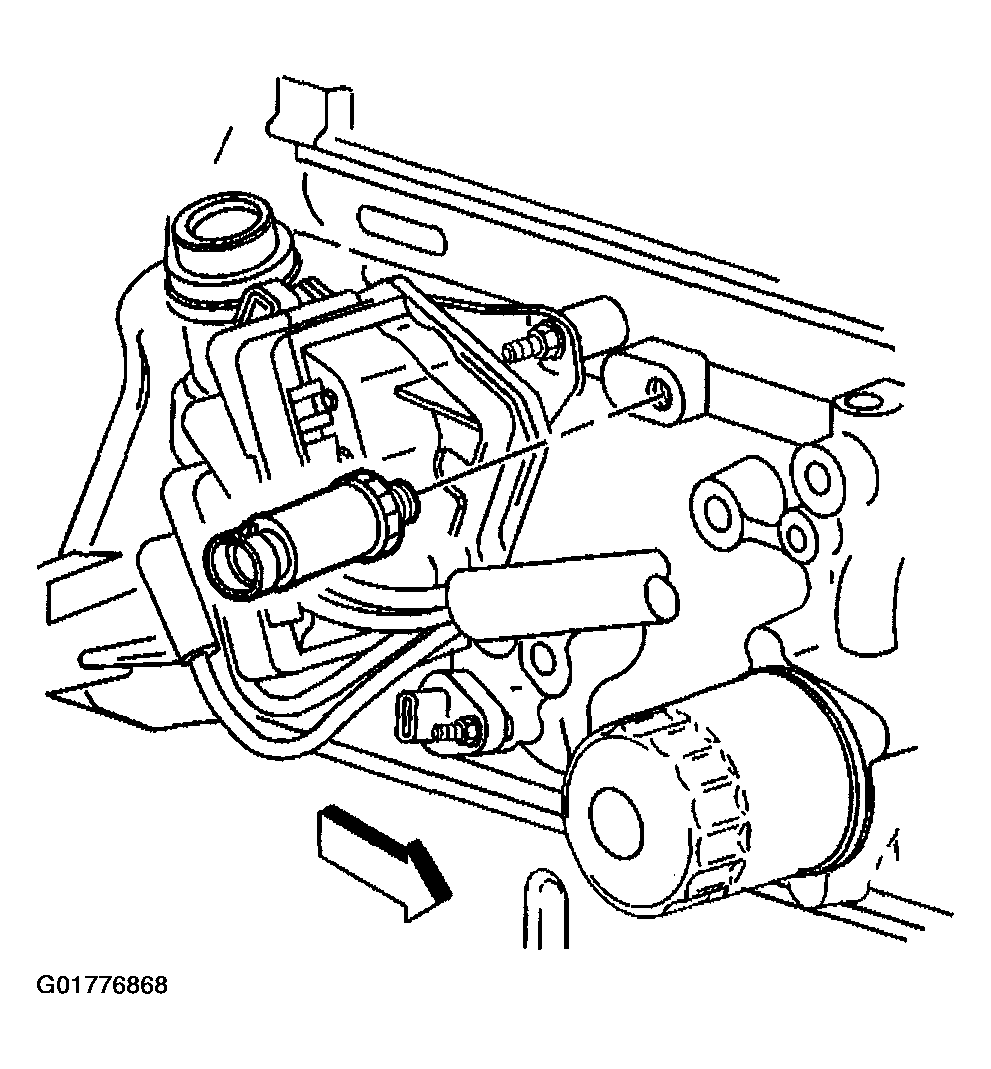

Fig 3: Oil Pressure Sender Or Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the oil pressure sender or switch assembly.

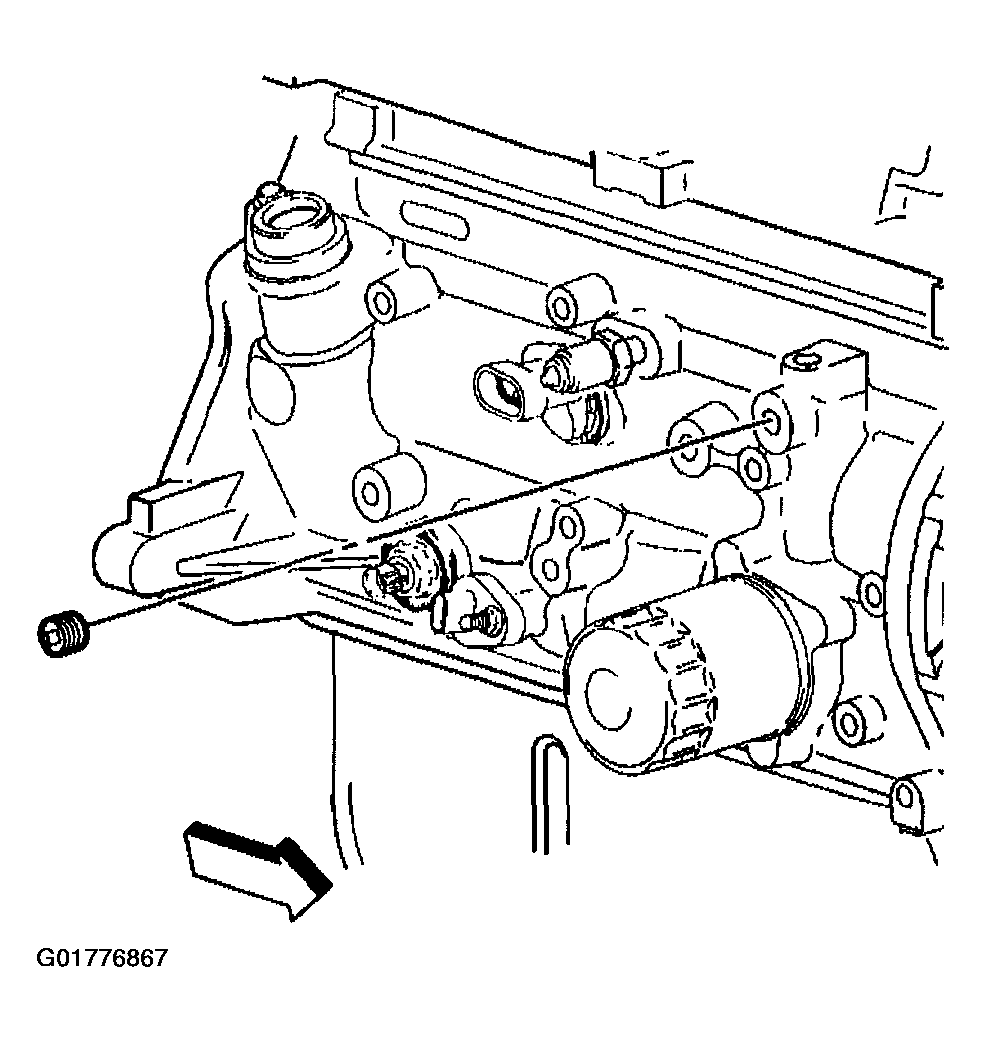

Fig 4: Upper Oil Passage Plug
Courtesy of GENERAL MOTORS CORP.
Remove the upper oil passage plug.

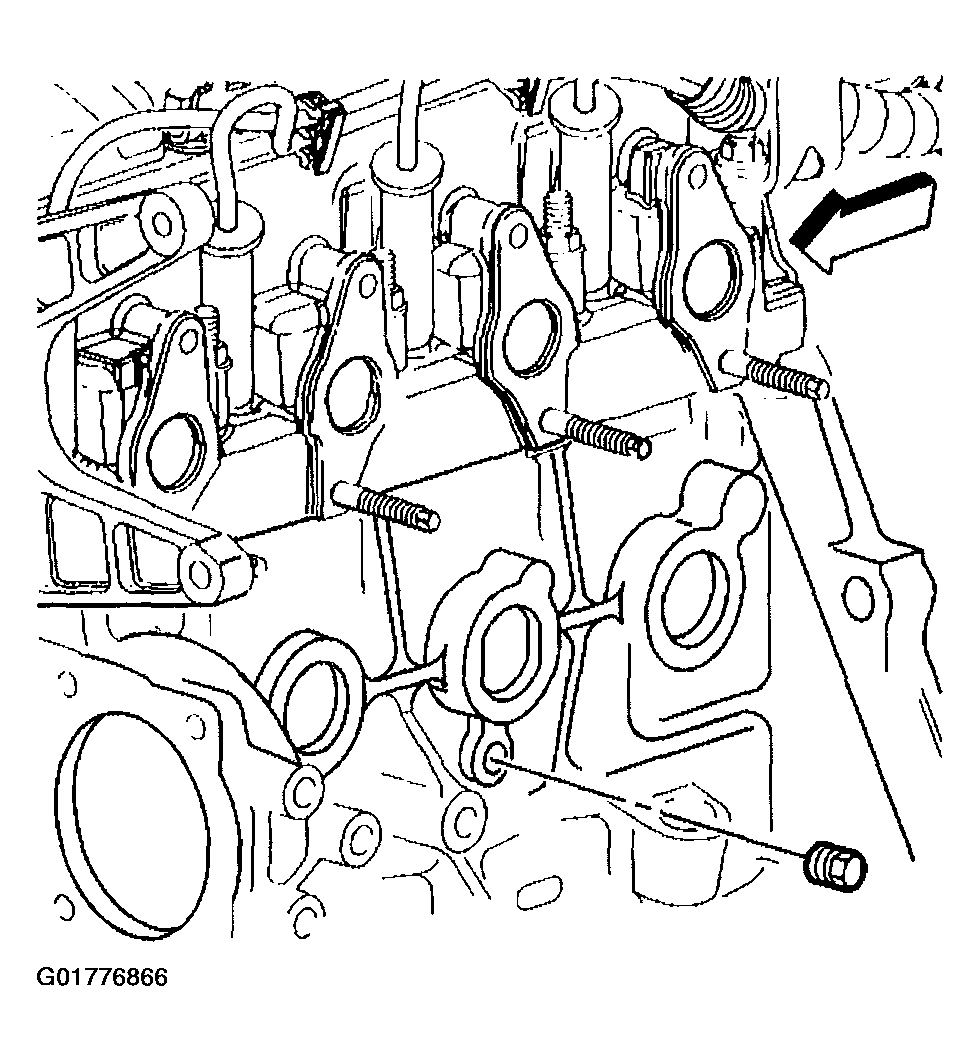

Fig 5: Rear Oil Passage Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the rear oil passage plugs.

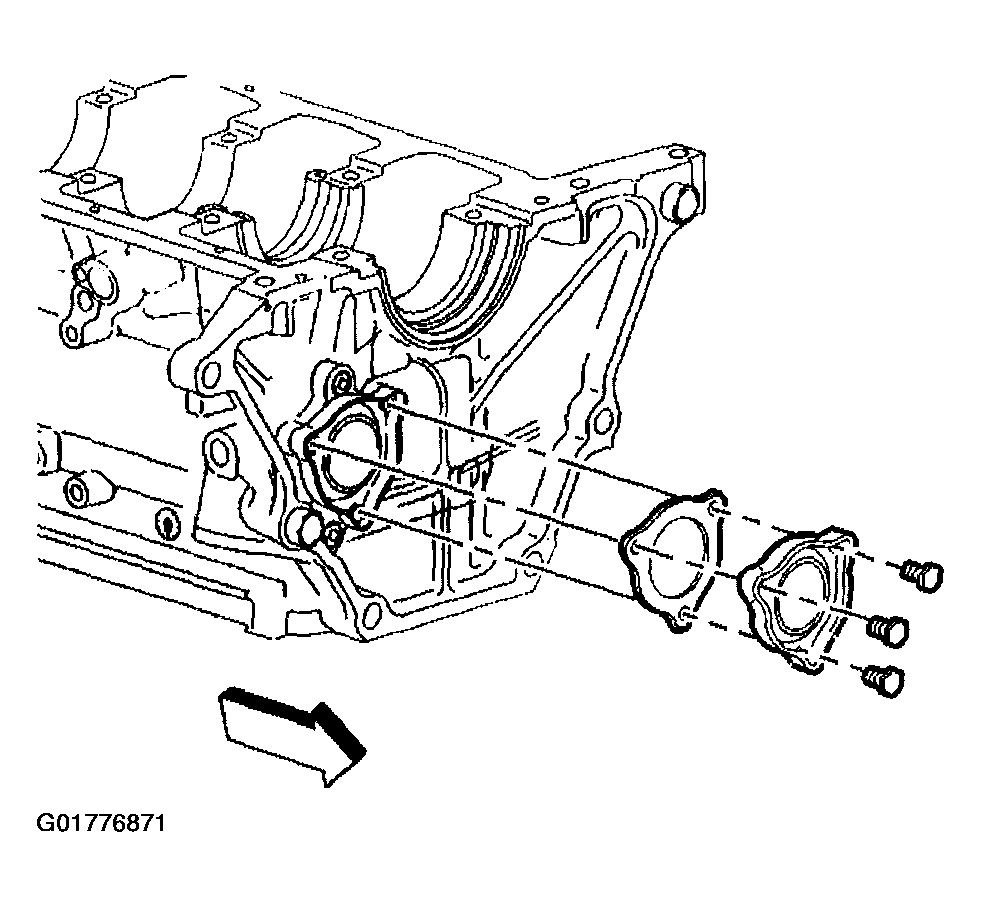

Fig 6: Camshaft Rear Cover
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft rear cover and gasket.

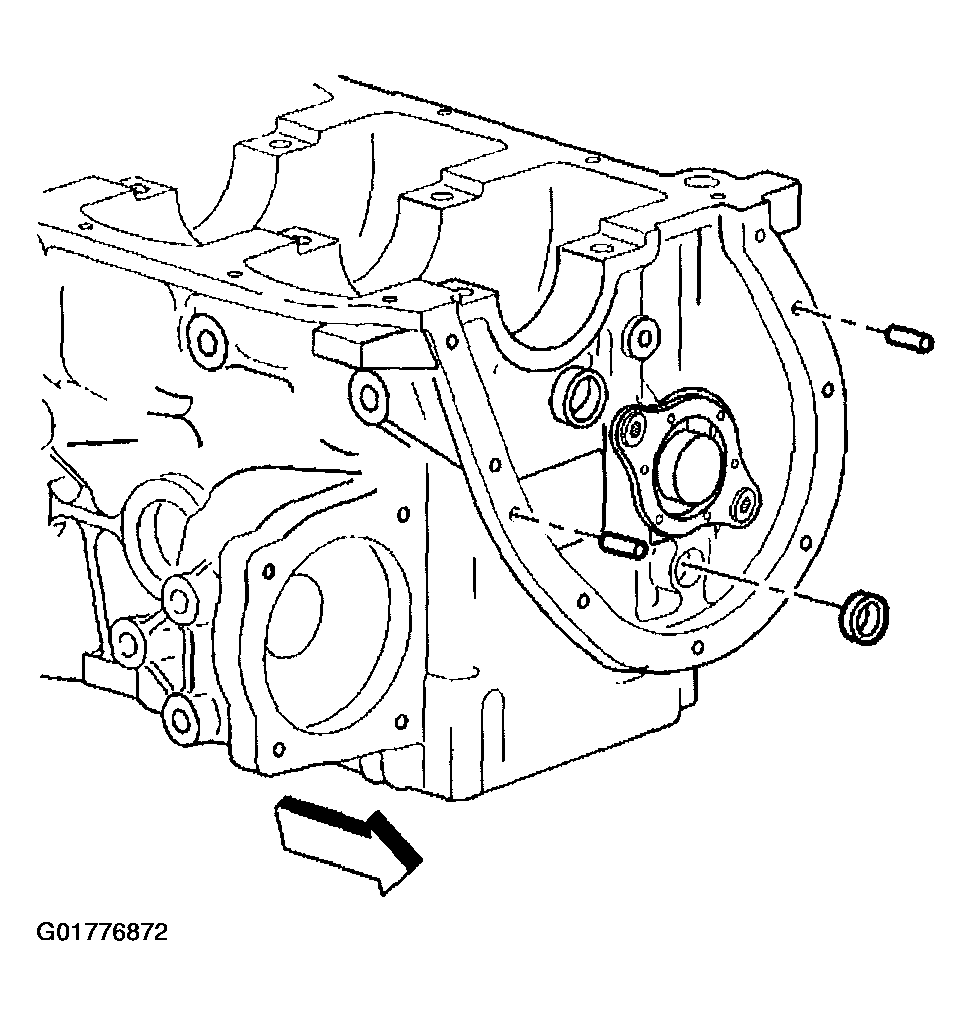

Fig 7: Engine Front Cover Alignment Pins
Courtesy of GENERAL MOTORS CORP.
Remove the engine front cover alignment pins.
Remove the front oil passage plug and discard.
