Crankshaft Pulley & Hub Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tool Required: J 24420-C Crankshaft Pulley Hub Puller

Remove the crankshaft pulley bolts and crankshaft hub bolt.

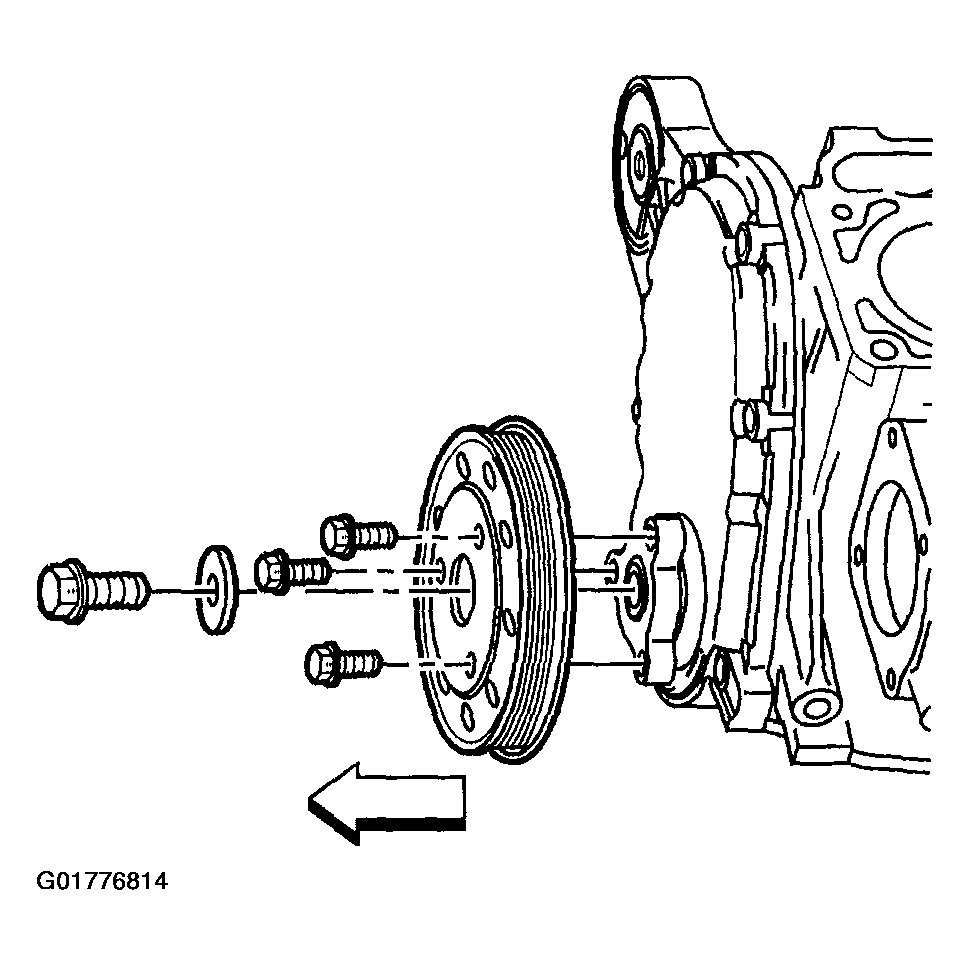

Fig 1: Crankshaft Pulley

Courtesy of GENERAL MOTORS CORP.

Remove the crankshaft pulley.

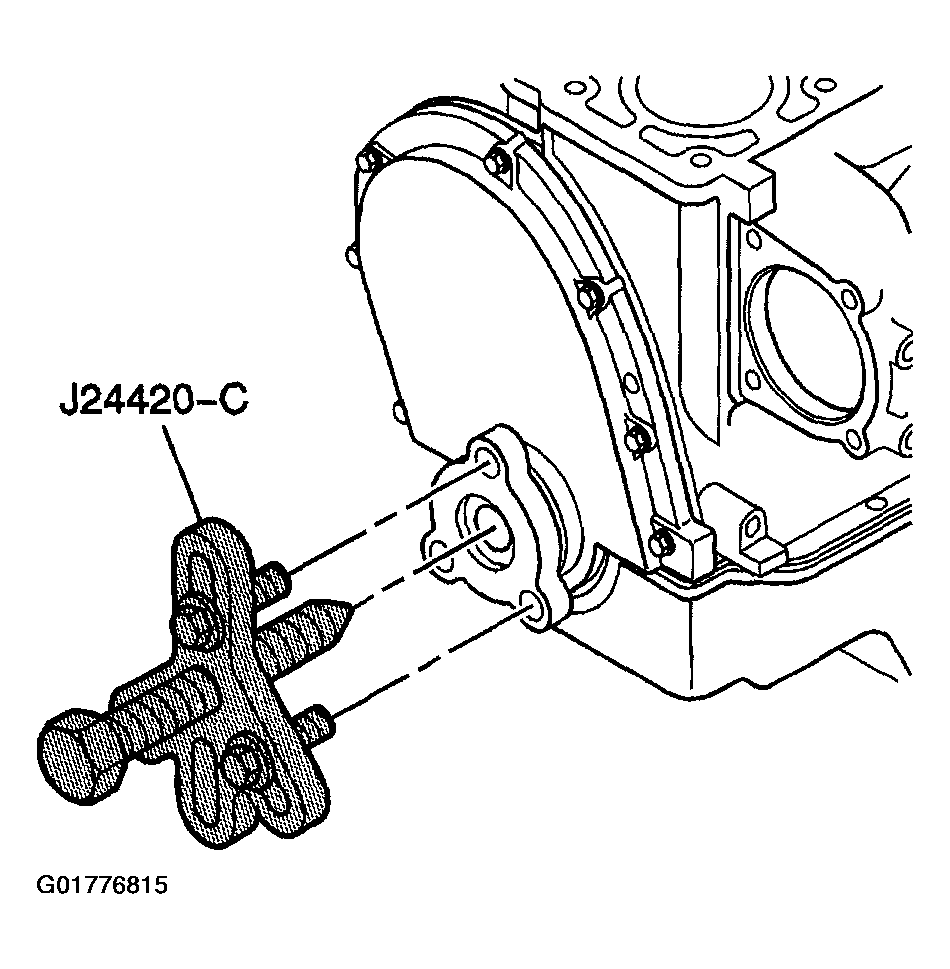

Fig 2: Removing Crankshaft Pulley Hub
Courtesy of GENERAL MOTORS CORP.
Position the J 24420-C onto the crankshaft pulley hub.
Using the J 24420-C, turn the puller screw clockwise.
Remove the hub from the crankshaft.
