Crankshaft Pulley & Hub - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 29113 Crankshaft Pulley Hub Installer

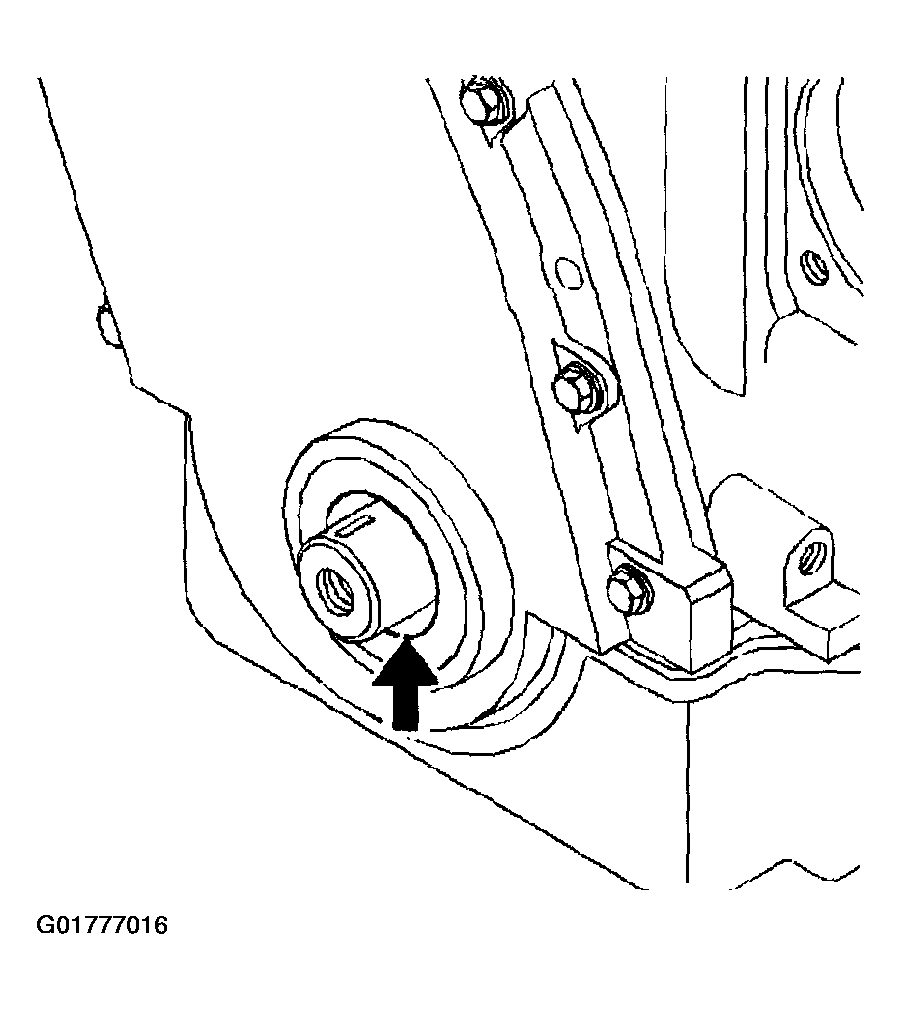

Coat the front cover seal contact area with engine oil.

Fig 1: Front Cover Seal
Courtesy of GENERAL MOTORS CORP.
Apply RTV sealer GM P/N United States 12346192, GM P/N Canada 10953476 to the keyway in the crankshaft.

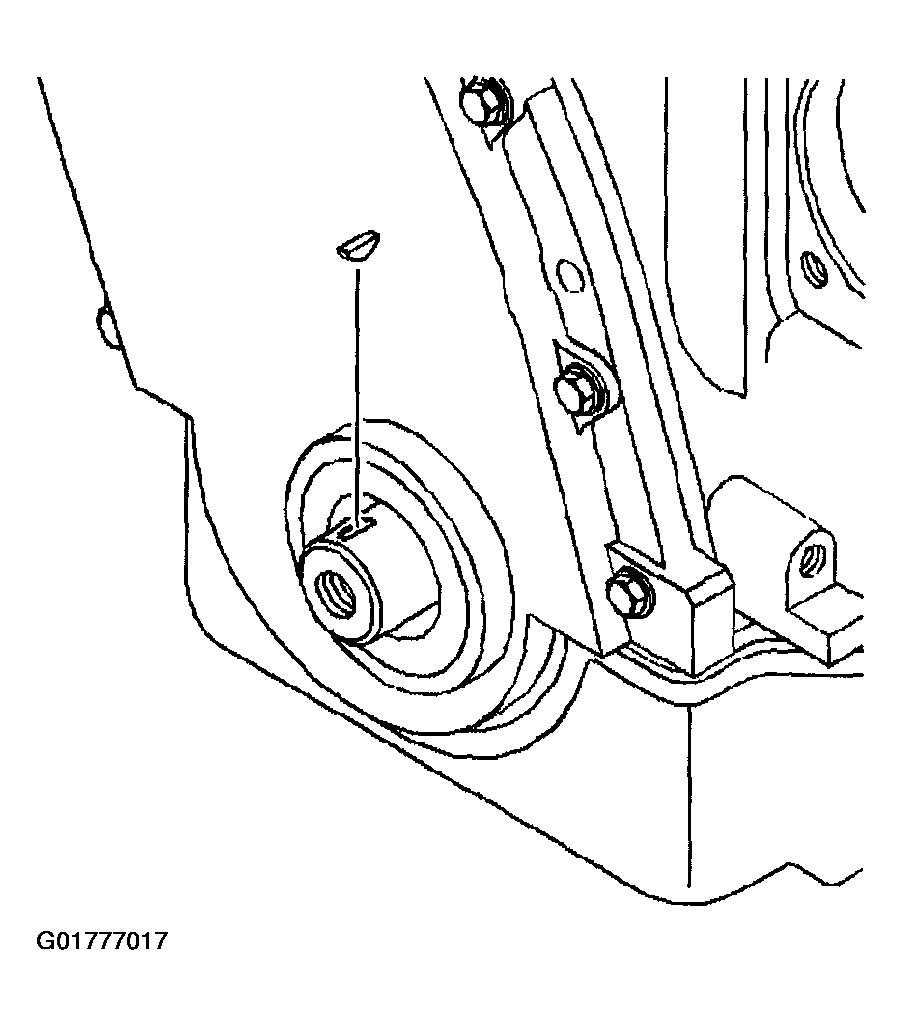

Install the key into the keyway on the crankshaft.

Fig 2: Crankshaft Pulley Key
Courtesy of GENERAL MOTORS CORP.

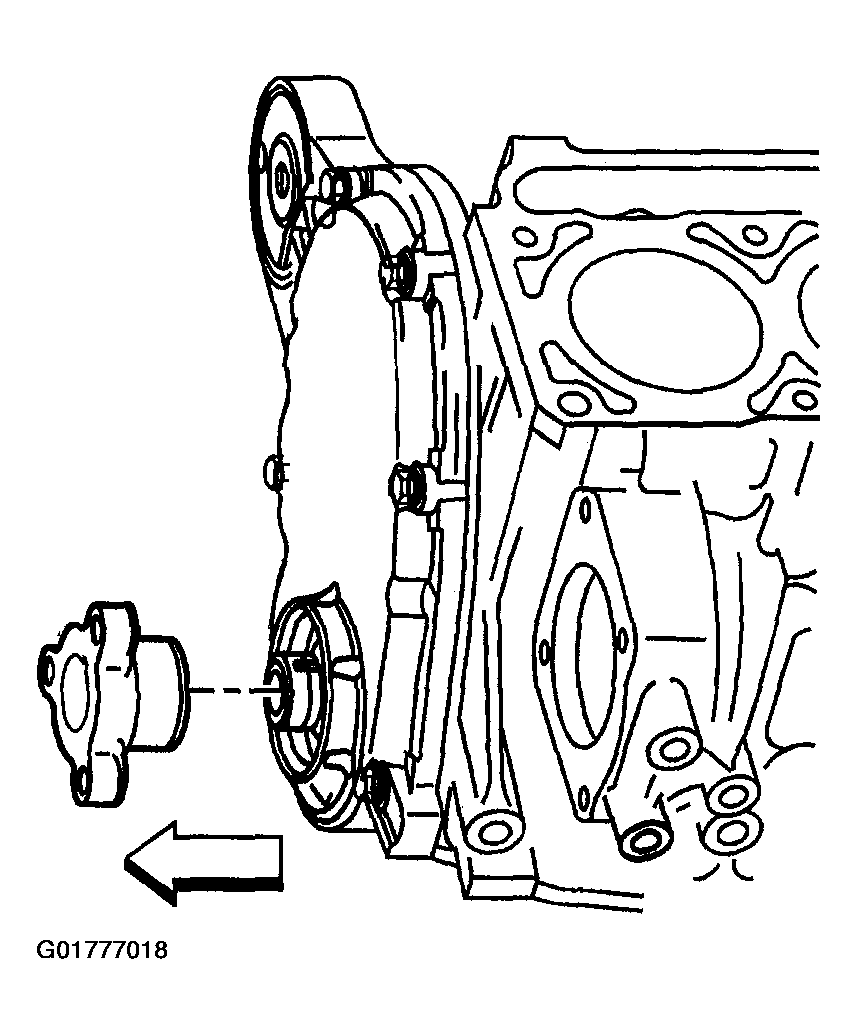

Install the pulley hub into position over the key on the crankshaft.

Fig 3: Crankshaft Pulley Hub
Courtesy of GENERAL MOTORS CORP.

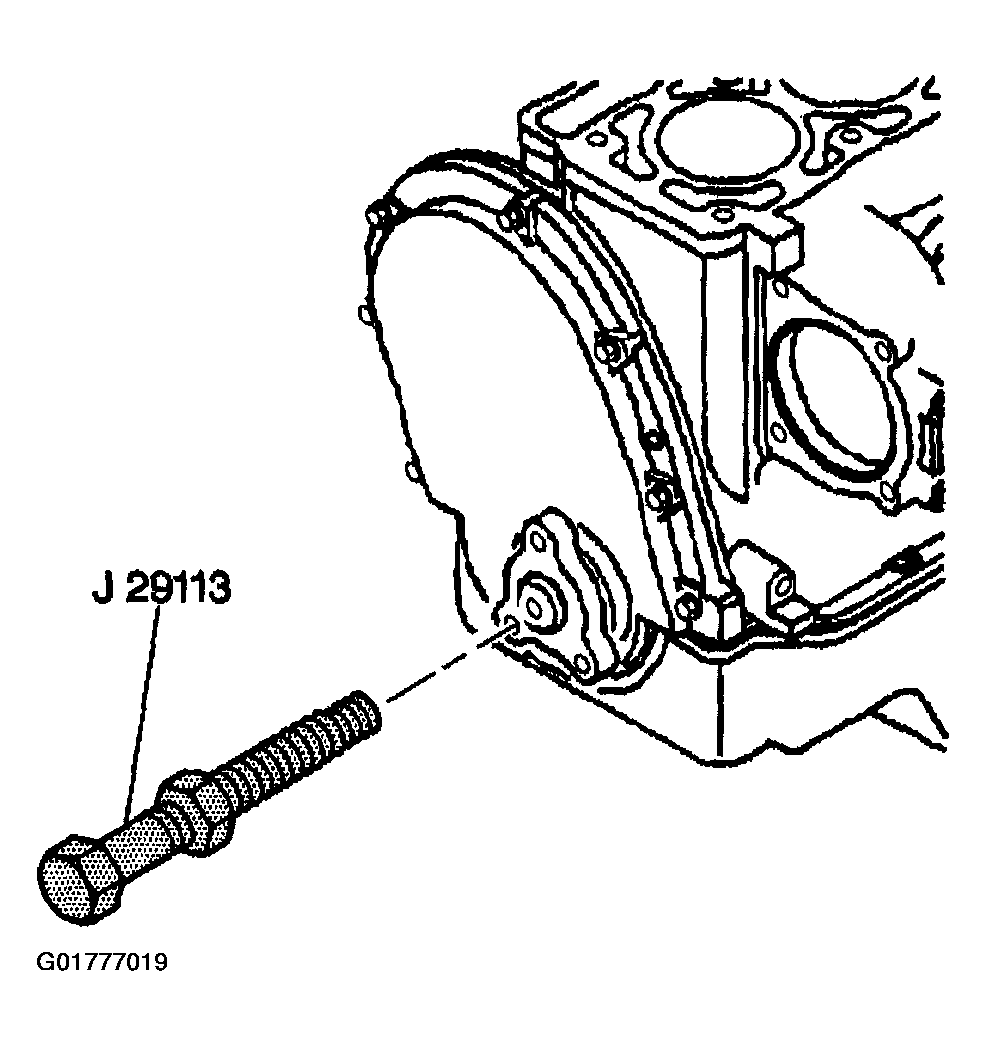

Install the J 29113 through the hub and into the crankshaft so that at least 6 mm (0.24 in) of thread are engaged.
Pull the crankshaft pulley hub into position against the J 29113 .
Remove the J 29113 from the crankshaft.
Make sure that the hub is seated against the crankshaft.

Fig 4: Crankshaft Pulley Hub Installer
Courtesy of GENERAL MOTORS CORP.
Position the crankshaft pulley over the crankshaft pulley hub.

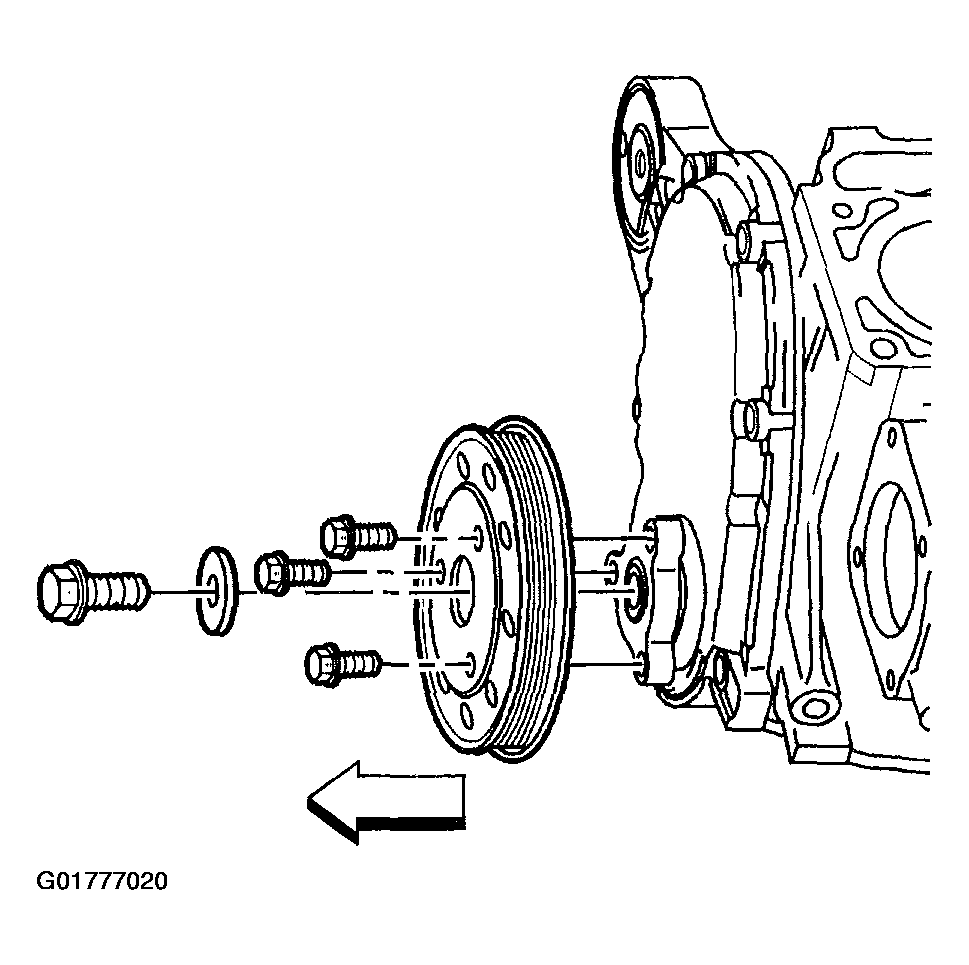

Install the crankshaft pulley bolts. Tighten the crankshaft pulley bolts to 50 N.m (37 ft lbs).
Install the crankshaft pulley to hub bolt. Tighten the crankshaft pulley to hub bolt to 105 N.m (77 ft lbs).

Fig 5: Crankshaft Pulley Hub Bolt
Courtesy of GENERAL MOTORS CORP.
