Camshaft - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft thrust plate bolts.

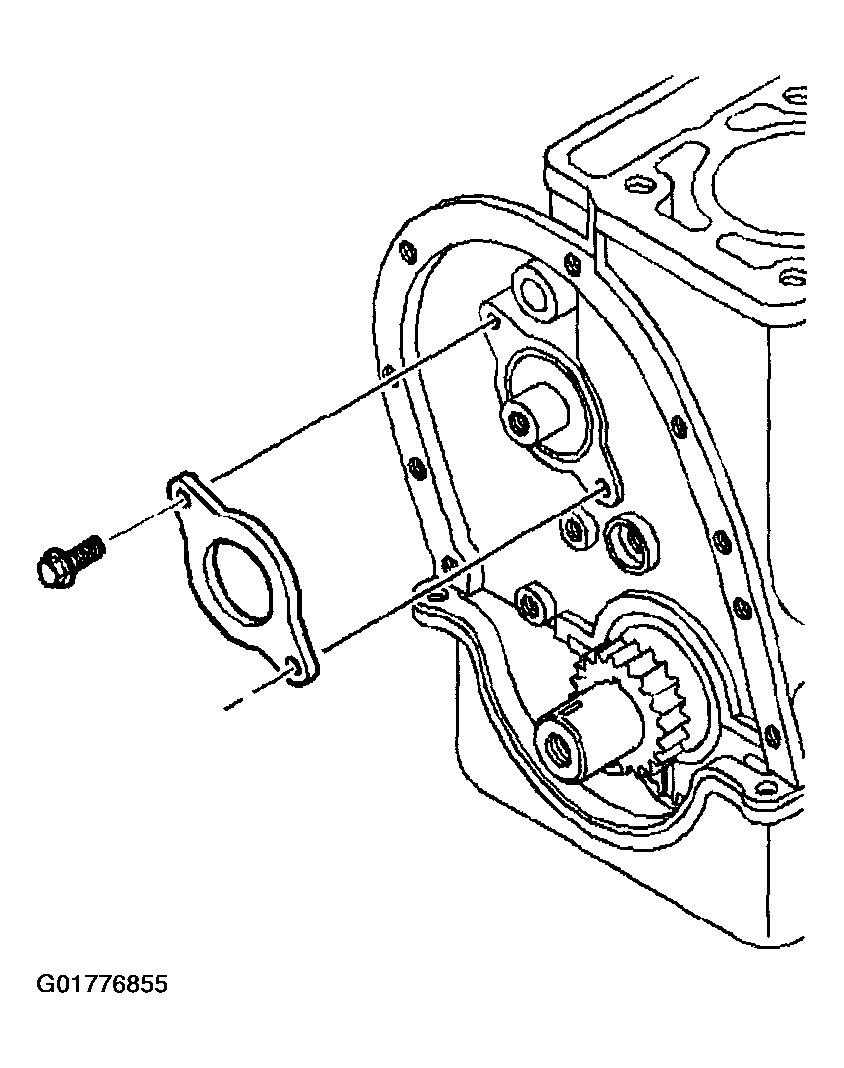

    Fig 1: Camshaft Thrust Plate
    G01776855Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft position sensor.

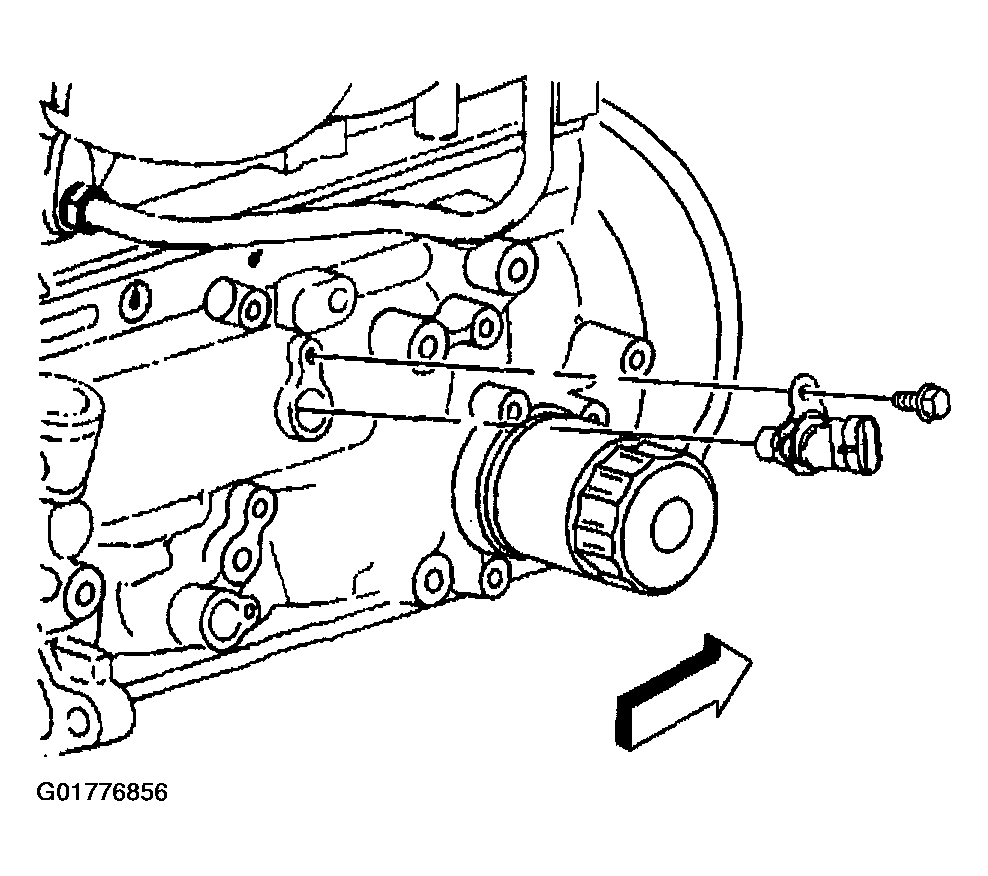

    Fig 2: Camshaft Position Sensor
    G01776856Courtesy of GENERAL MOTORS CORP.

    Important:  Do not damage the camshaft bearings while removing the camshaft.

  3. Remove the camshaft.

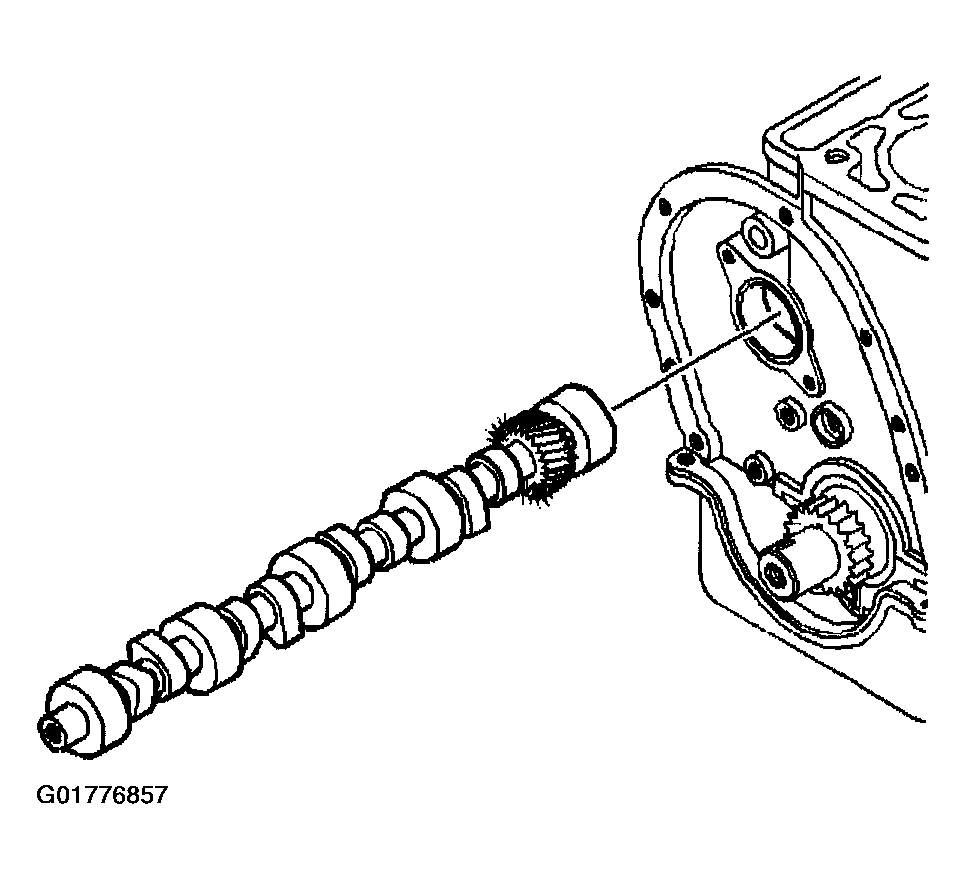

    Fig 3: Removing Camshaft
    G01776857Courtesy of GENERAL MOTORS CORP.
