Disassembled Views

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

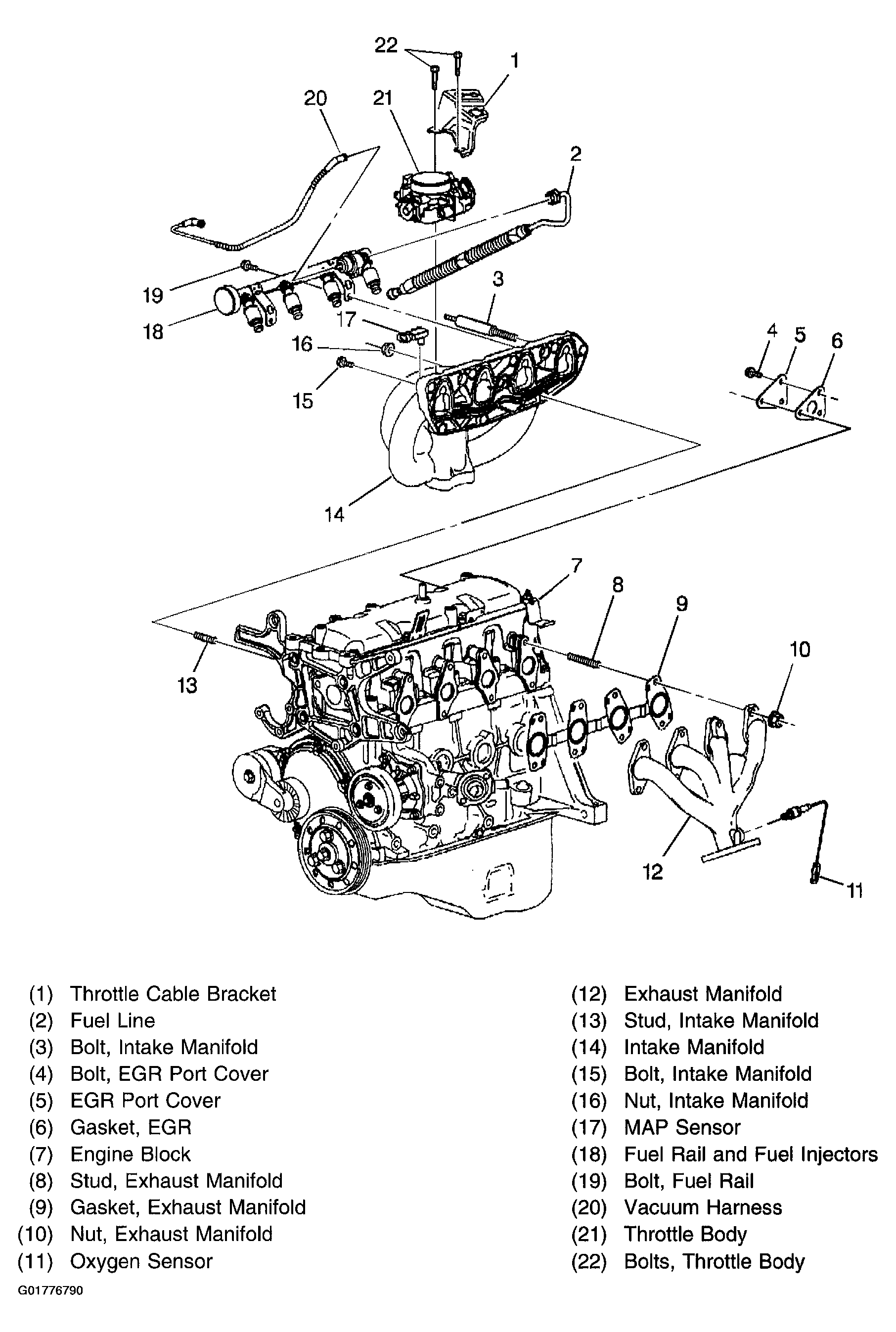

Fig 1: Locating Intake & Exhaust Manifold Components

Courtesy of GENERAL MOTORS CORP.

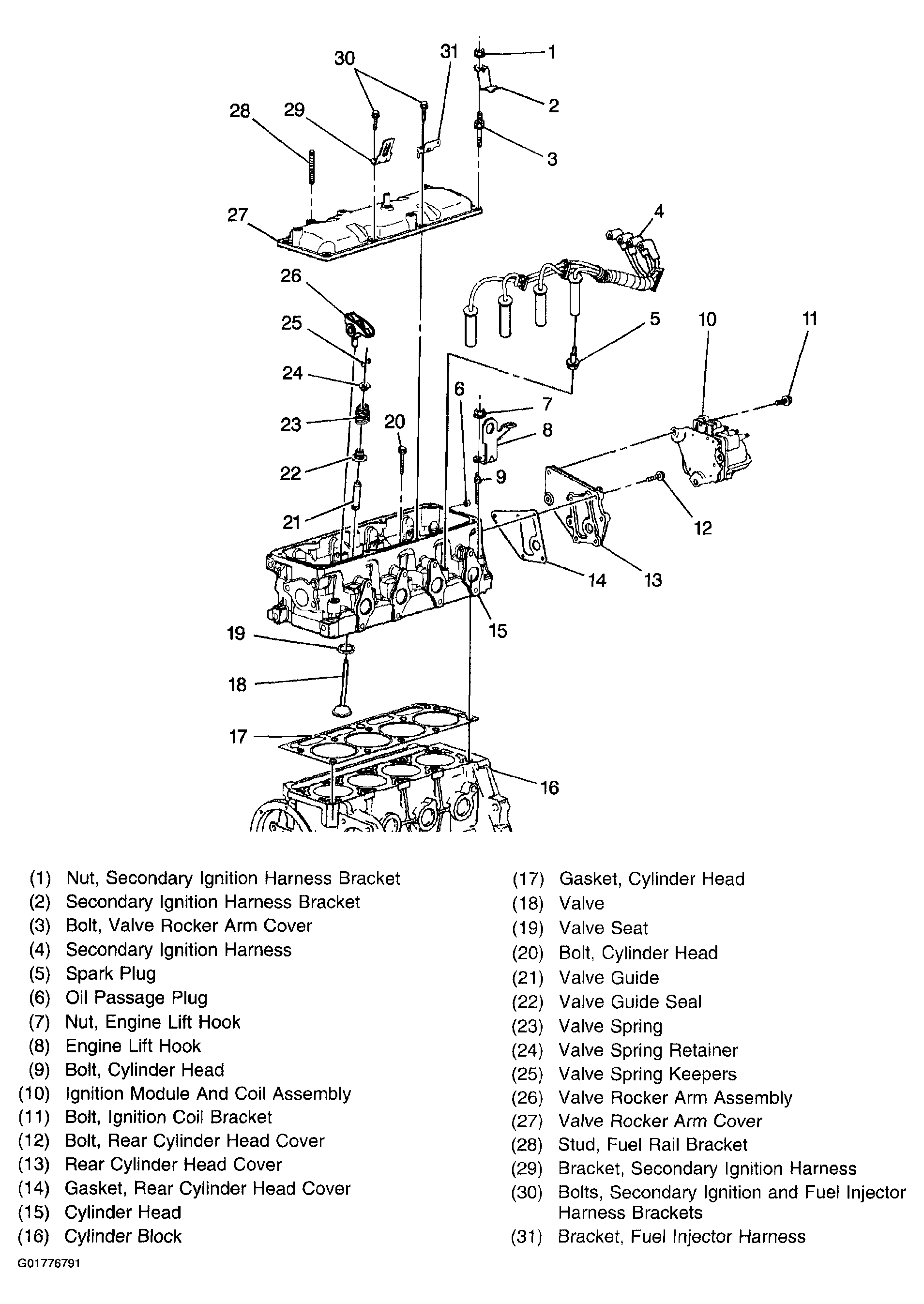

Fig 2: Locating Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

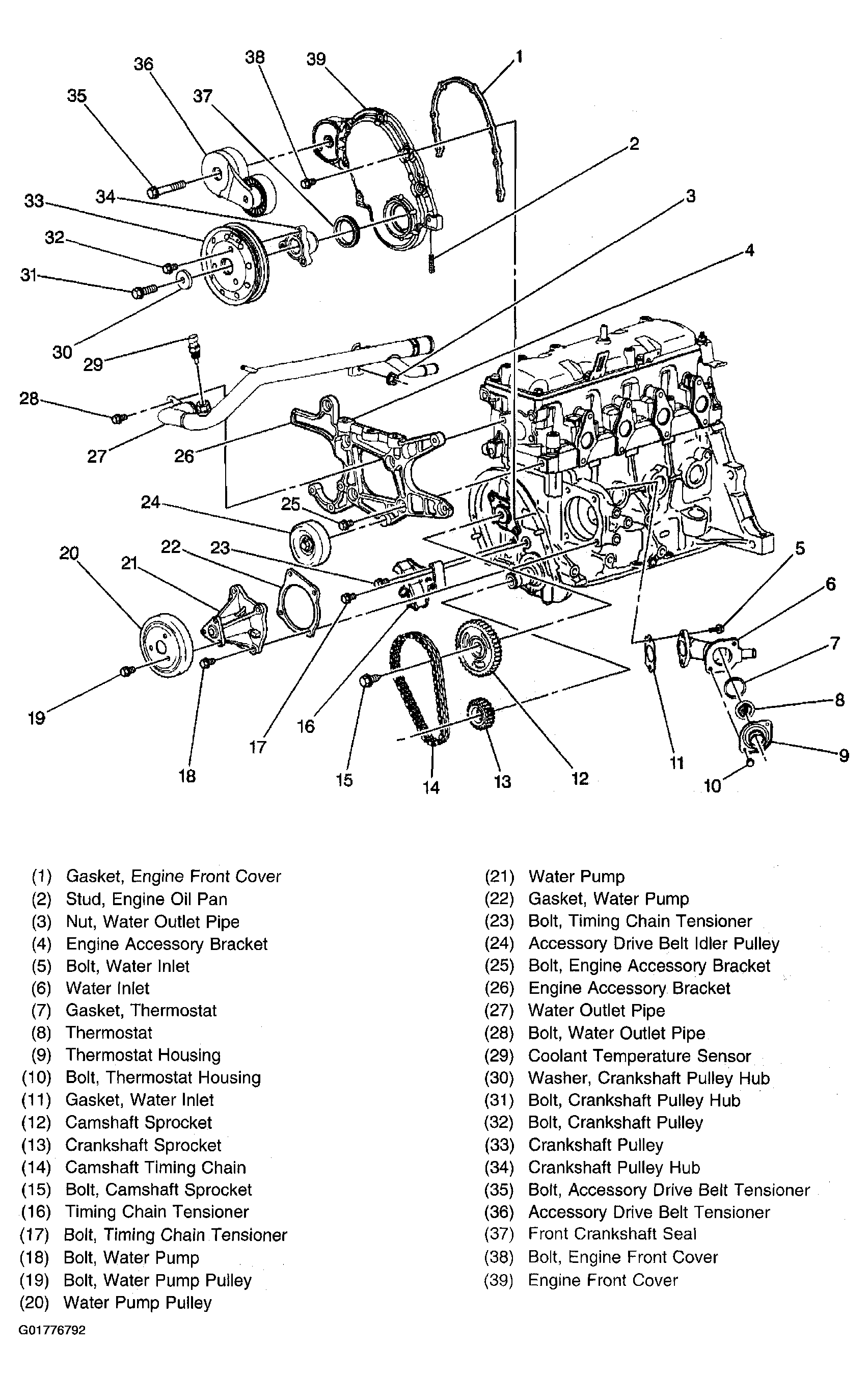

Fig 3: Locating Timing & Accessory Components

Courtesy of GENERAL MOTORS CORP.

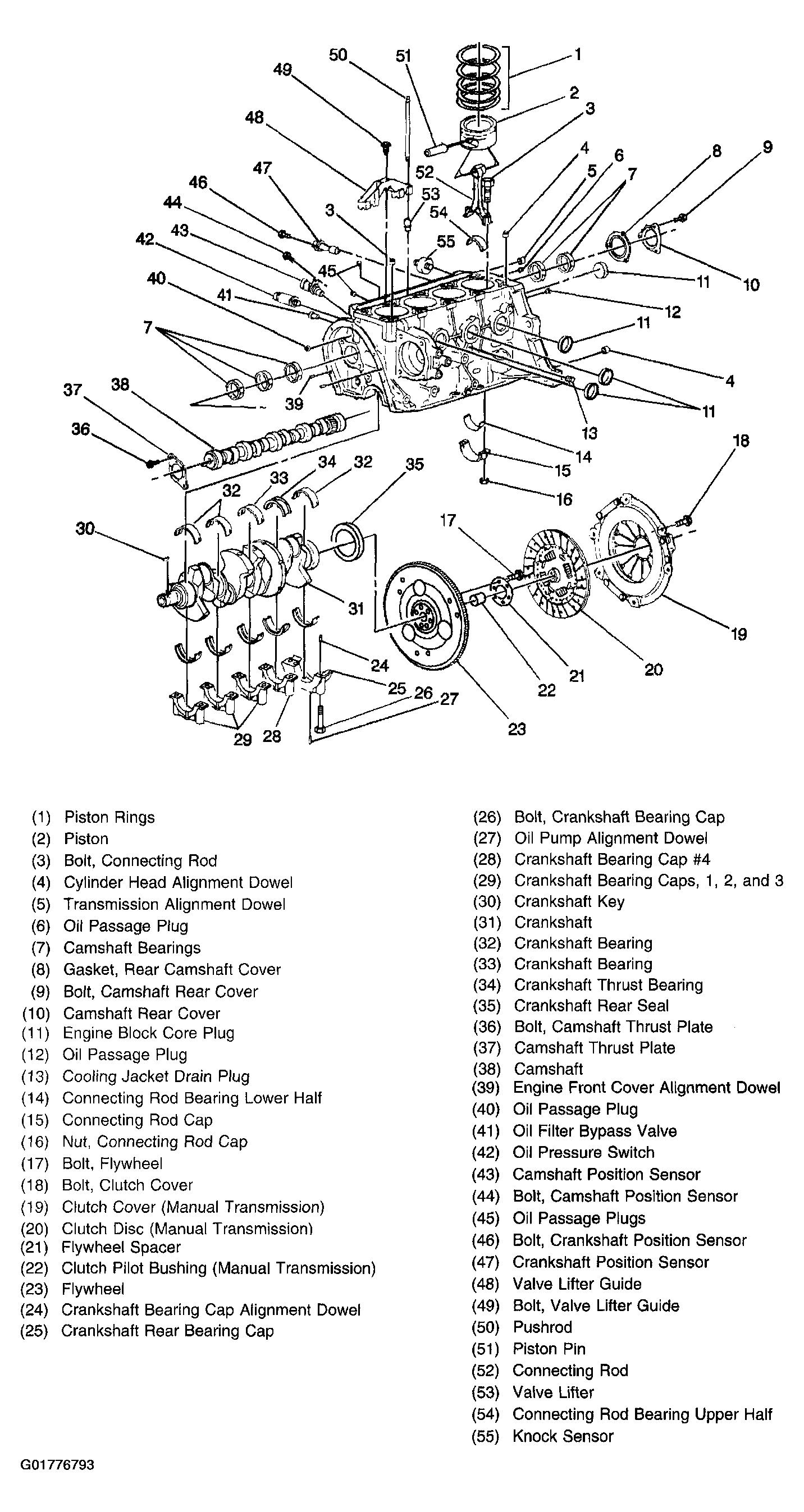

Fig 4: Locating Cylinder Block & Crankshaft Components

Courtesy of GENERAL MOTORS CORP.

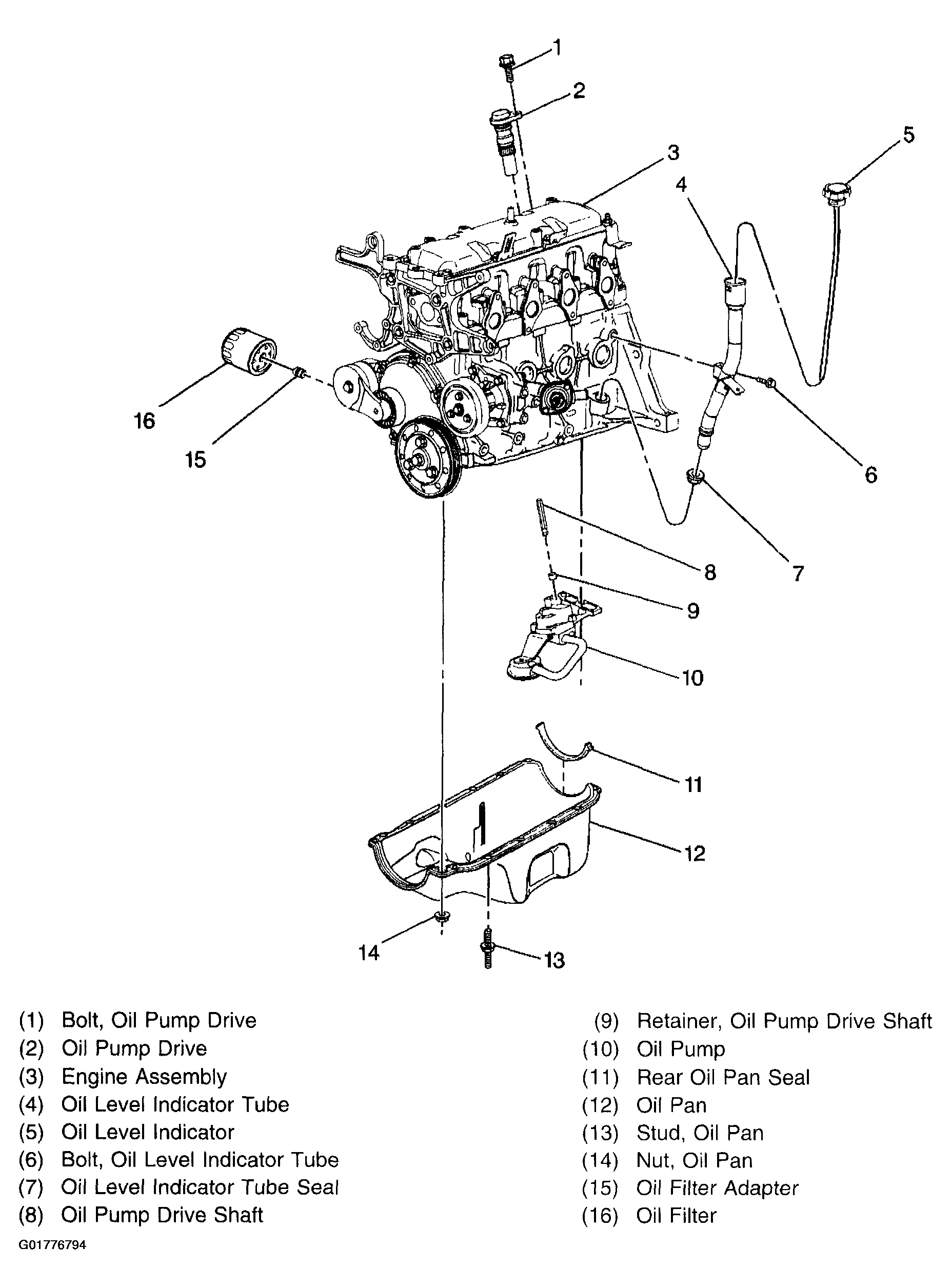

Fig 5: Locating Oil Pump & Oil Pan Components

Courtesy of GENERAL MOTORS CORP.
