Engine Block - Left Side View

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

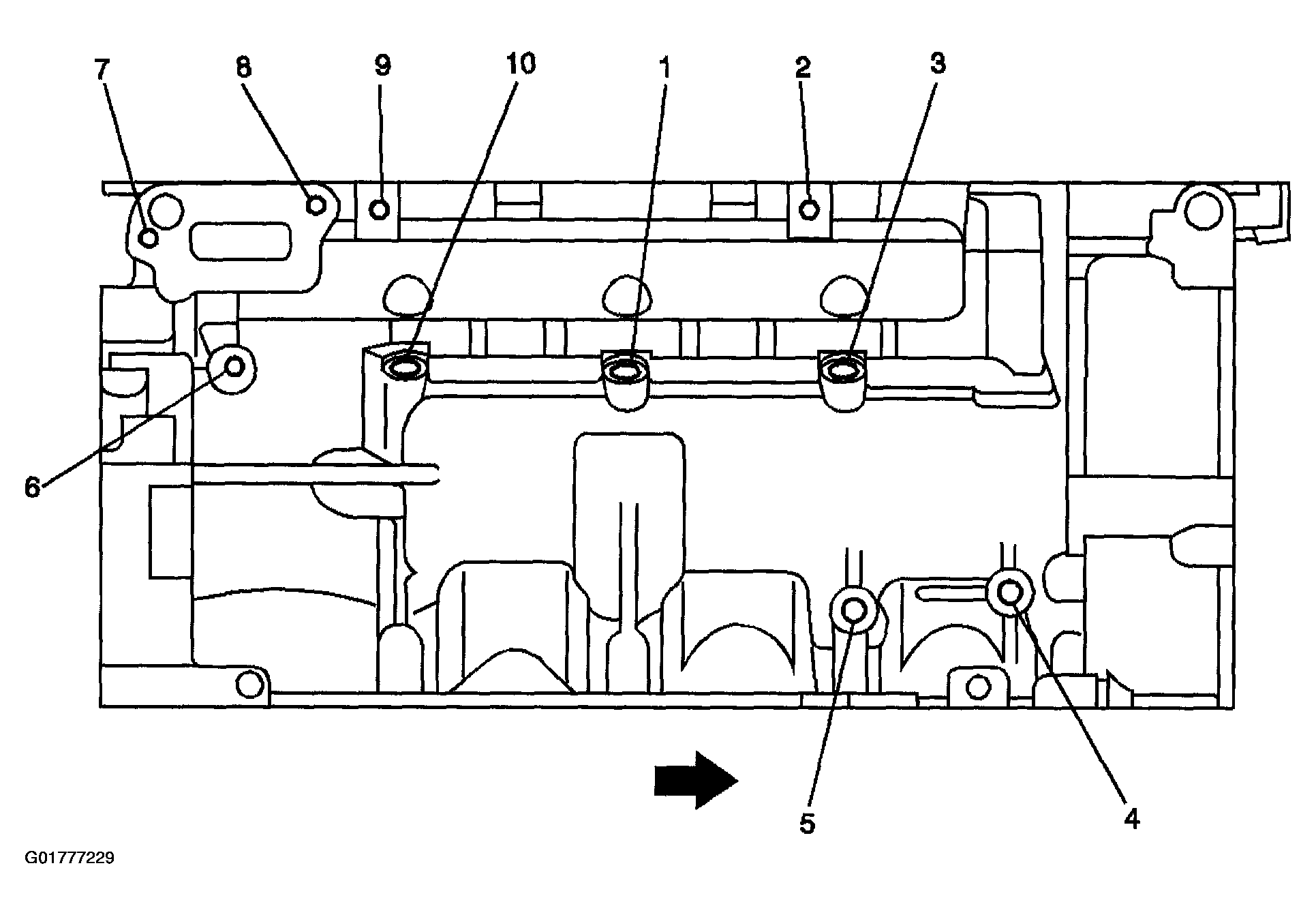

Fig 1: Engine Block - Left Side View (1 Of 2)
G01777229Courtesy of GENERAL MOTORS CORP.

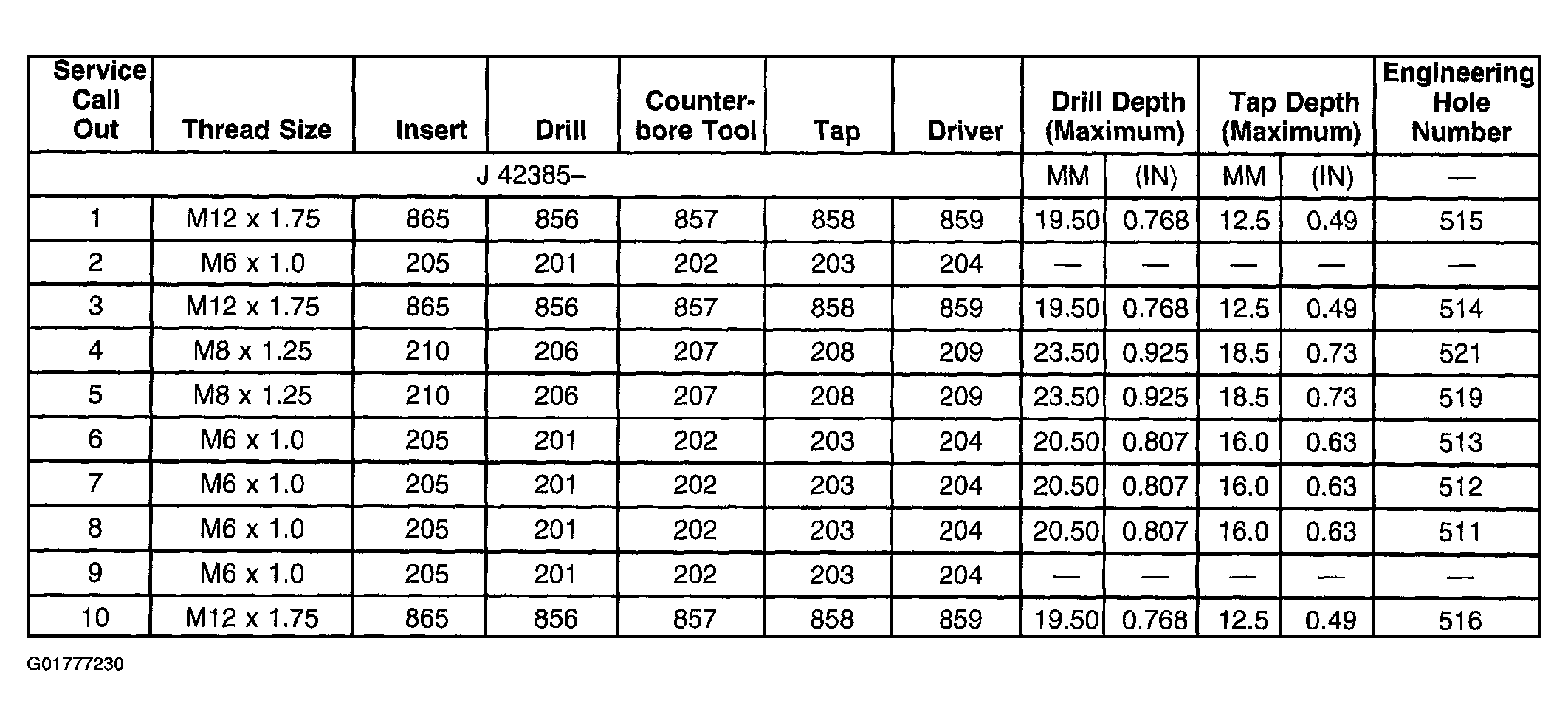

Fig 2: Engine Block - Left Side View (2 Of 2)
G01777230Courtesy of GENERAL MOTORS CORP.
