Engine Block - Bottom View

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

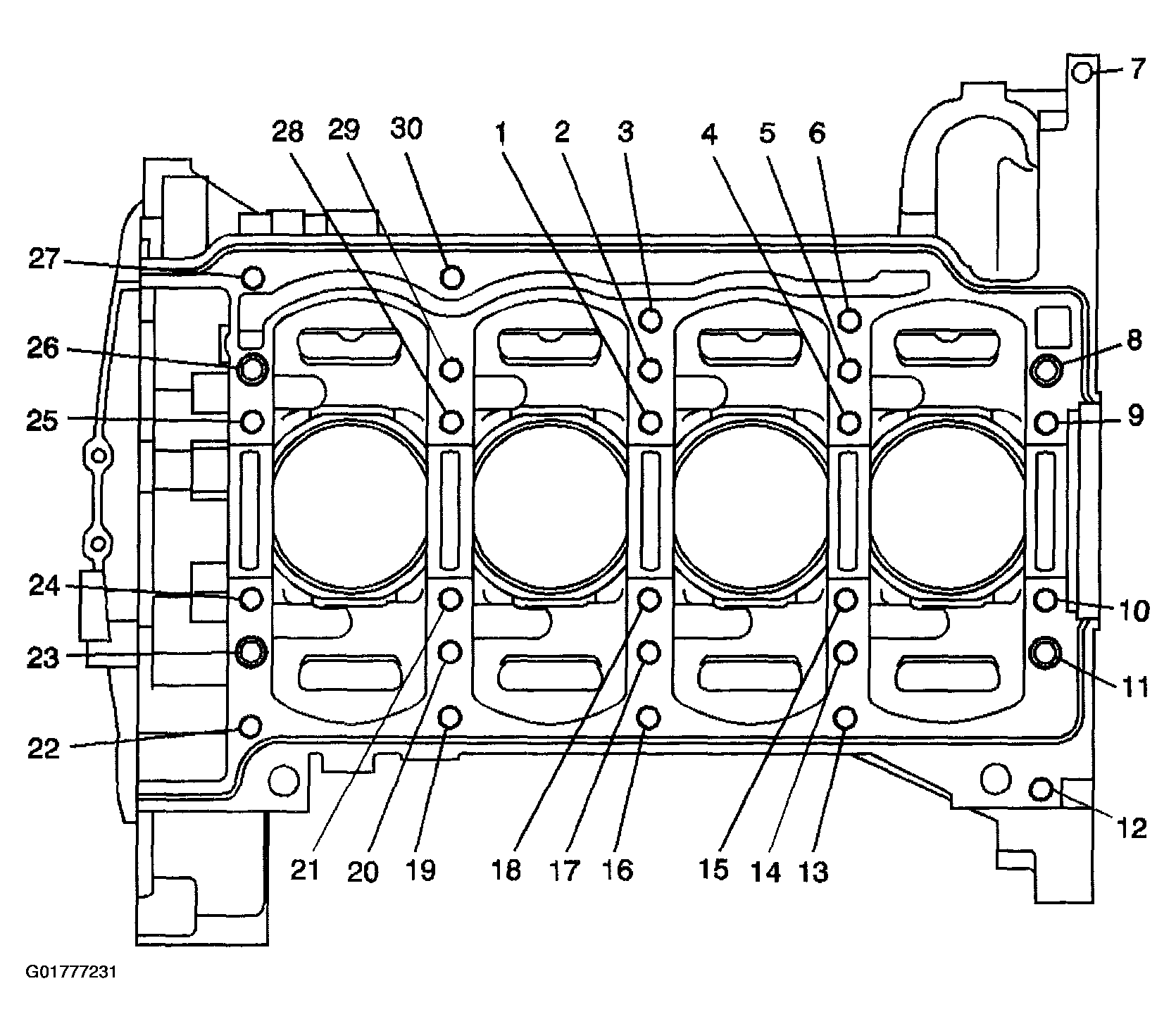

Fig 1: Engine Block - Bottom View (1 Of 3)
G01777231Courtesy of GENERAL MOTORS CORP.

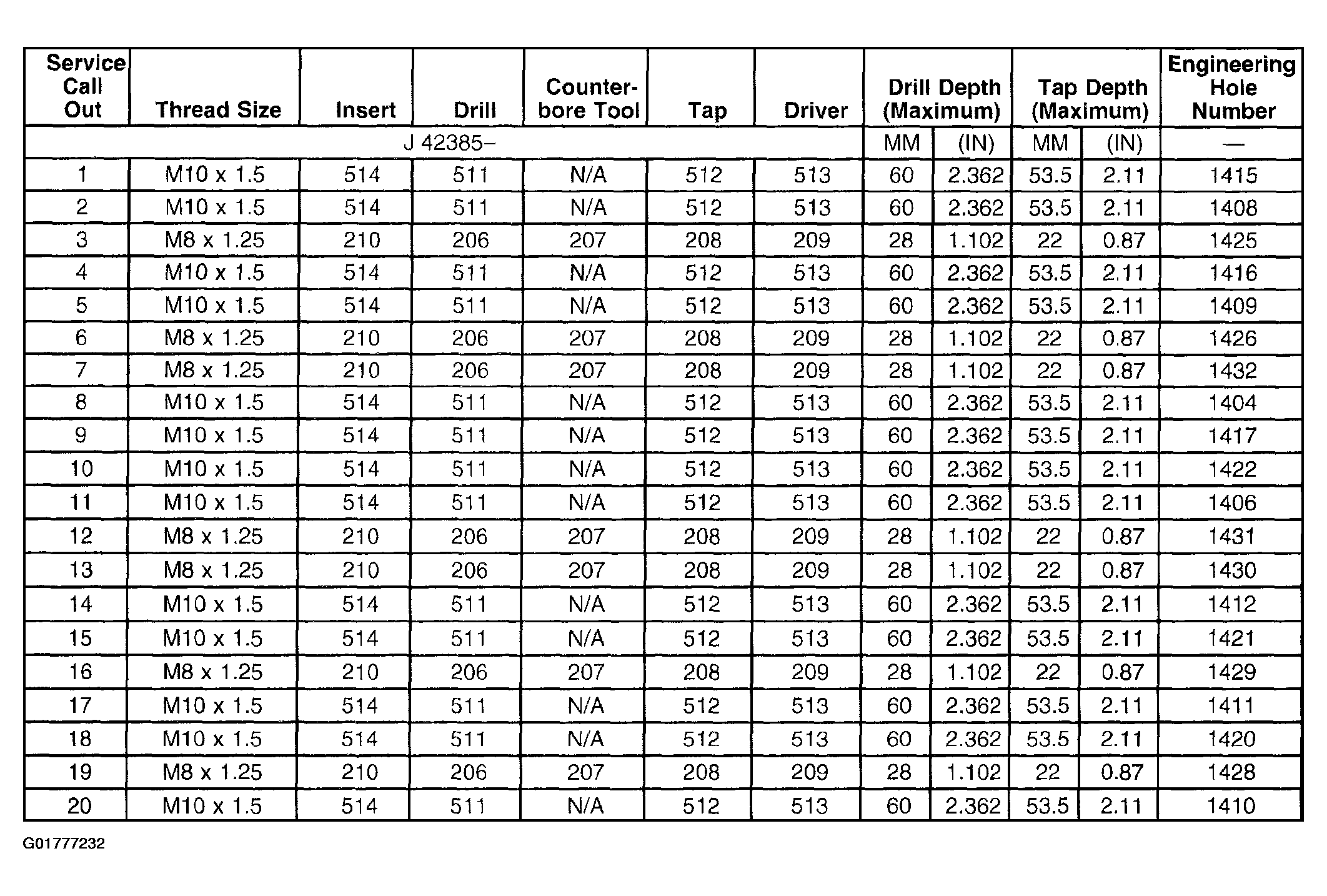

Fig 2: Engine Block - Bottom View (2 Of 3)
G01777232Courtesy of GENERAL MOTORS CORP.

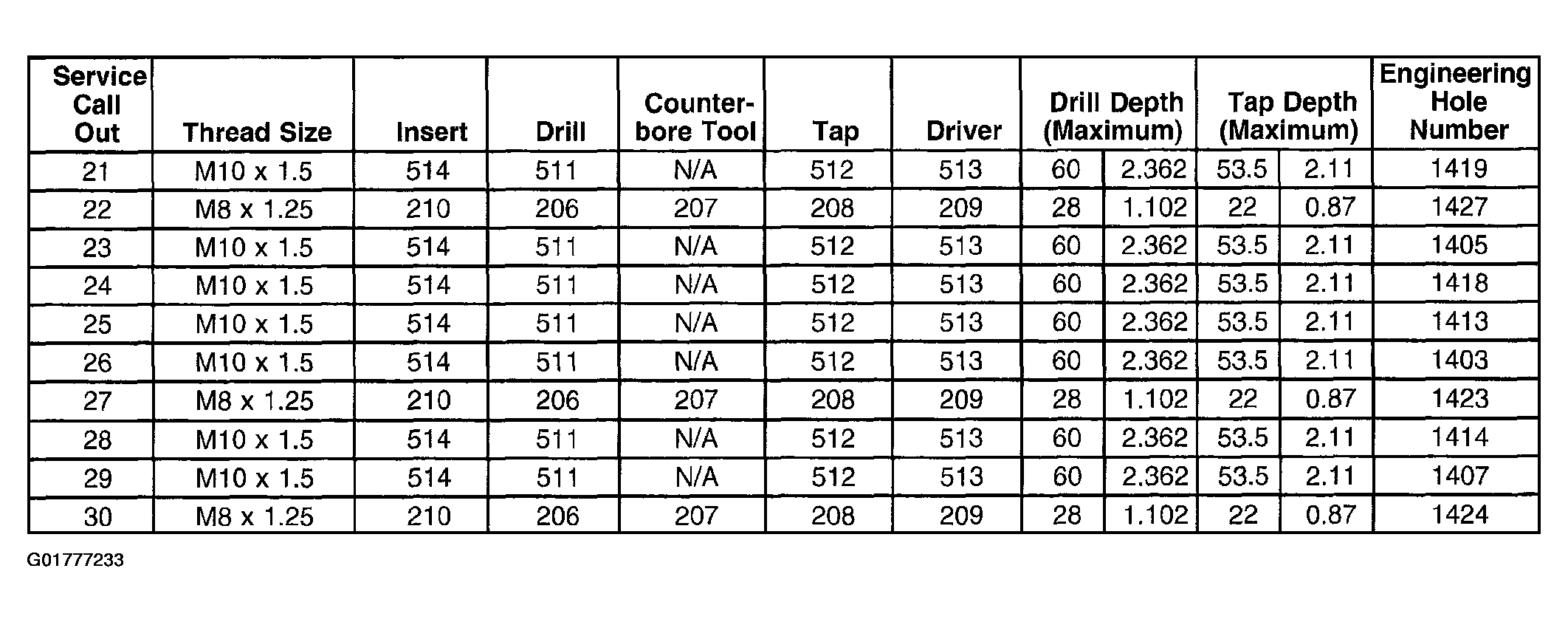

Fig 3: Engine Block - Bottom View (3 Of 3)
G01777233Courtesy of GENERAL MOTORS CORP.
