Cylinder Head - Top View

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

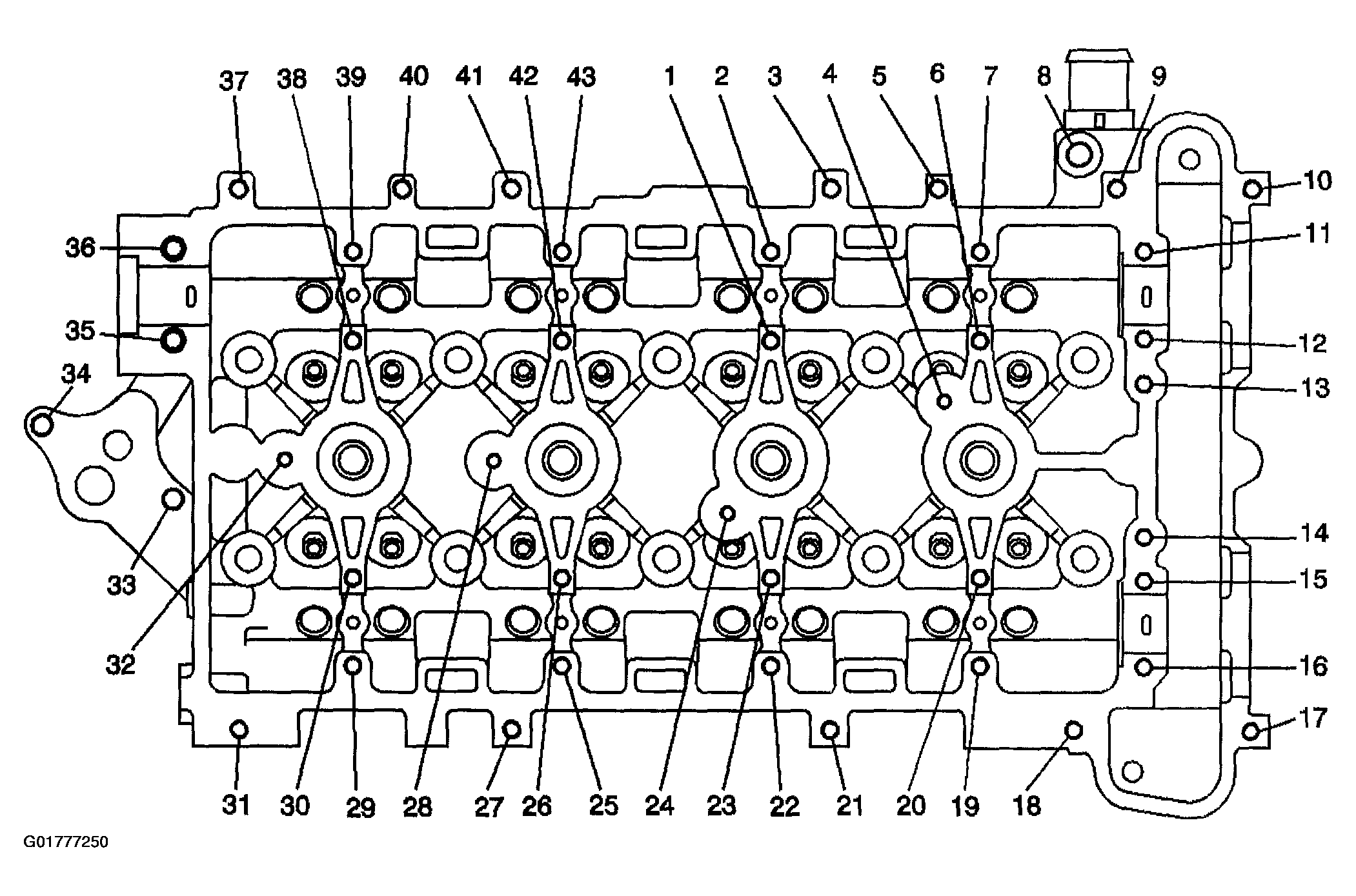

Fig 1: Cylinder Head - Top View (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

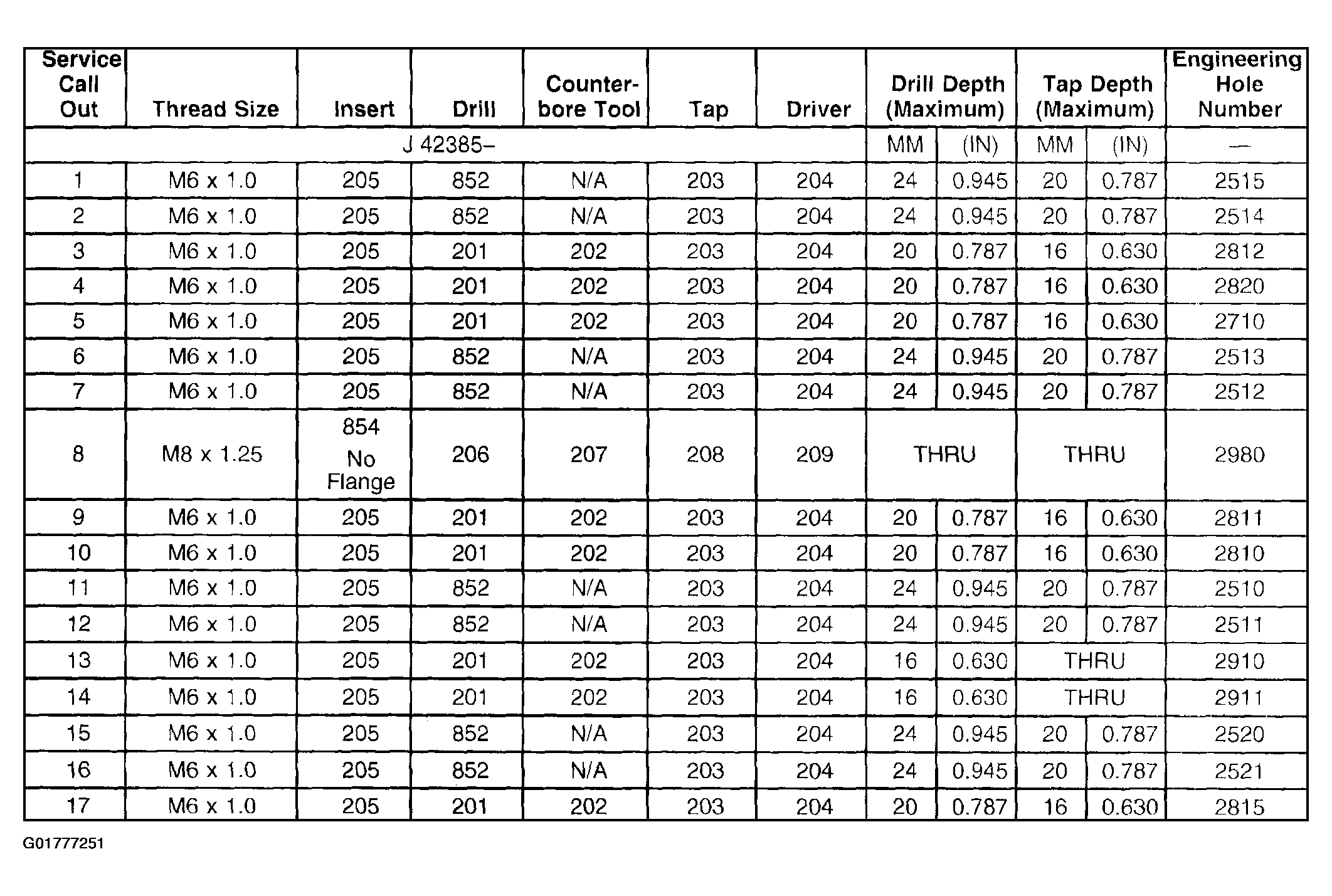

Fig 2: Cylinder Head - Top View (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

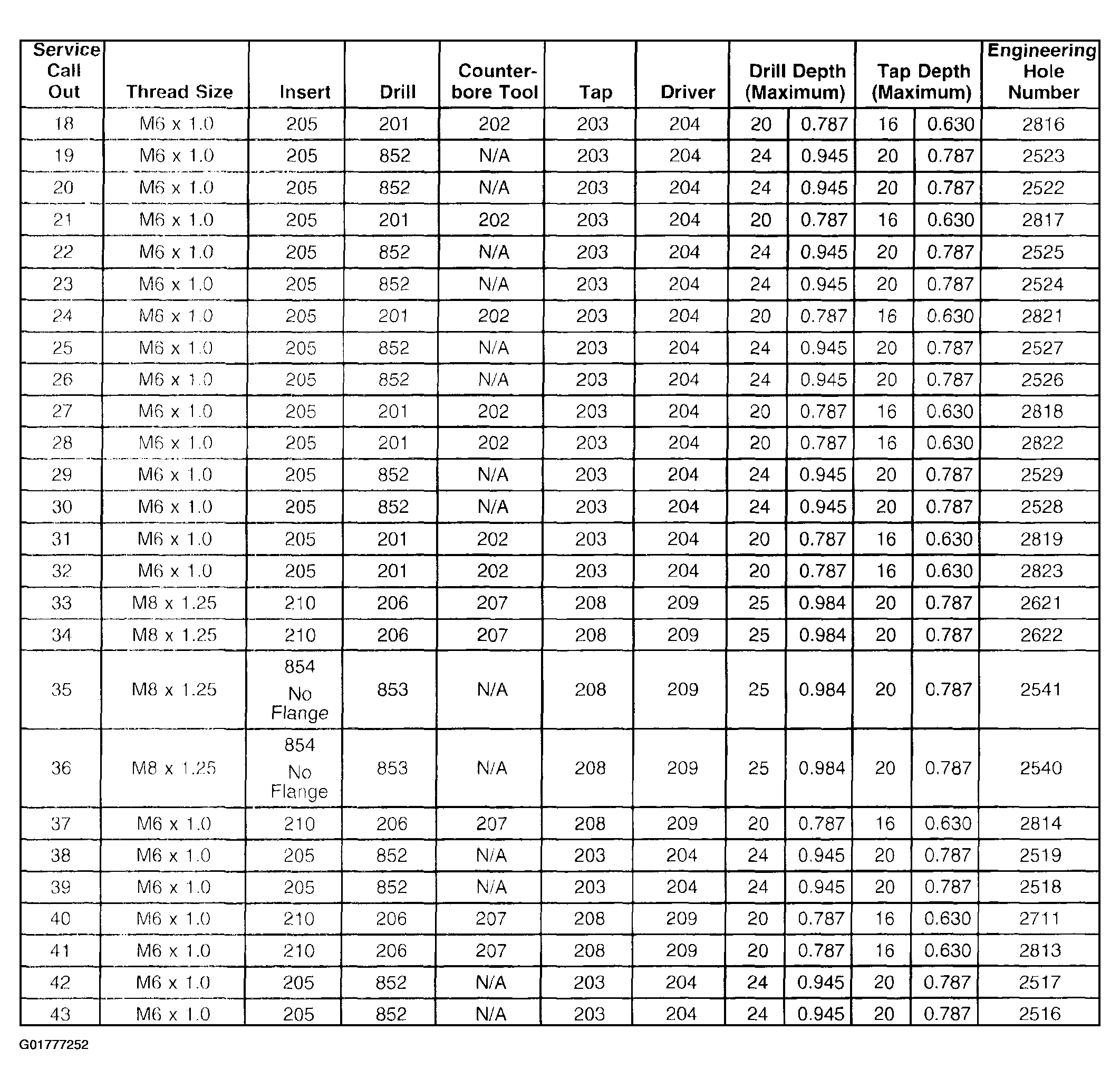

Fig 3: Cylinder Head - Top View (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
