Cylinder Head - Back View

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

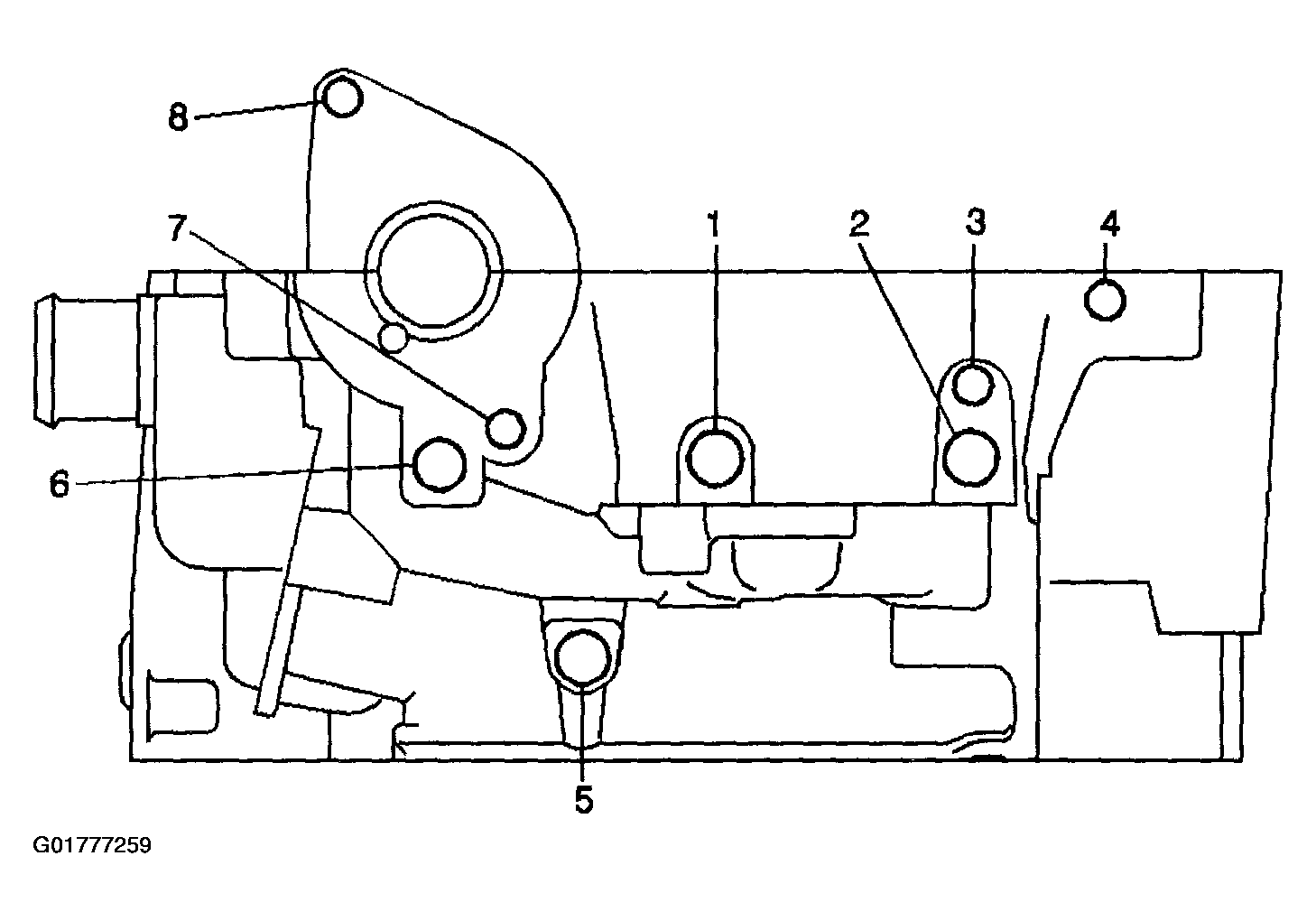

Fig 1: Cylinder Head - Back View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

NOTE: 1, 2, 5, 6 holes are oil passages.

Fig 2: Cylinder Head - Back View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
