Water Pump Installation

Prior to installing the water pump read the entire procedure. Pay special attention to avoid part damage and to ensure proper sealing.

1. Install the water pump assembly.
2. Install the water pump bolts. Finger tighten the bolts.
3. Tighten the water pump bolts.

   Tighten

   Tighten the bolts to 25 N.m (18 lb ft).

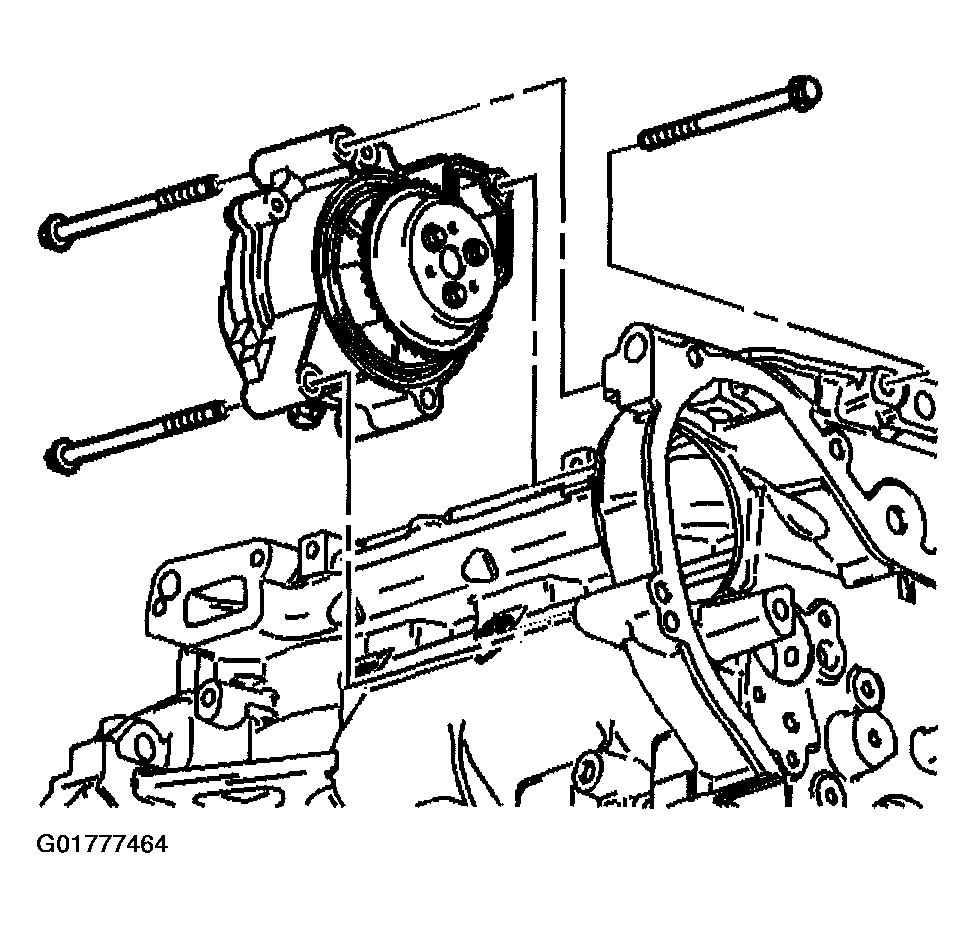

   Fig 1: Water Pump

   Courtesy of GENERAL MOTORS CORP.
4. Install the water feed tube.
5. Lubricate the feed tube O-Ring with silicone gel lubricant GM P/N 12345579 (Canadian P/N 1974984) or equivalent.
6. Install the water feed tube by twisting and pushing toward the water pump. Take care not to tear or damage the O-Ring.
7. Install the thermostat housing to block bolts.

   Tighten

   Tighten the bolts to 10 N.m (89 lb in).

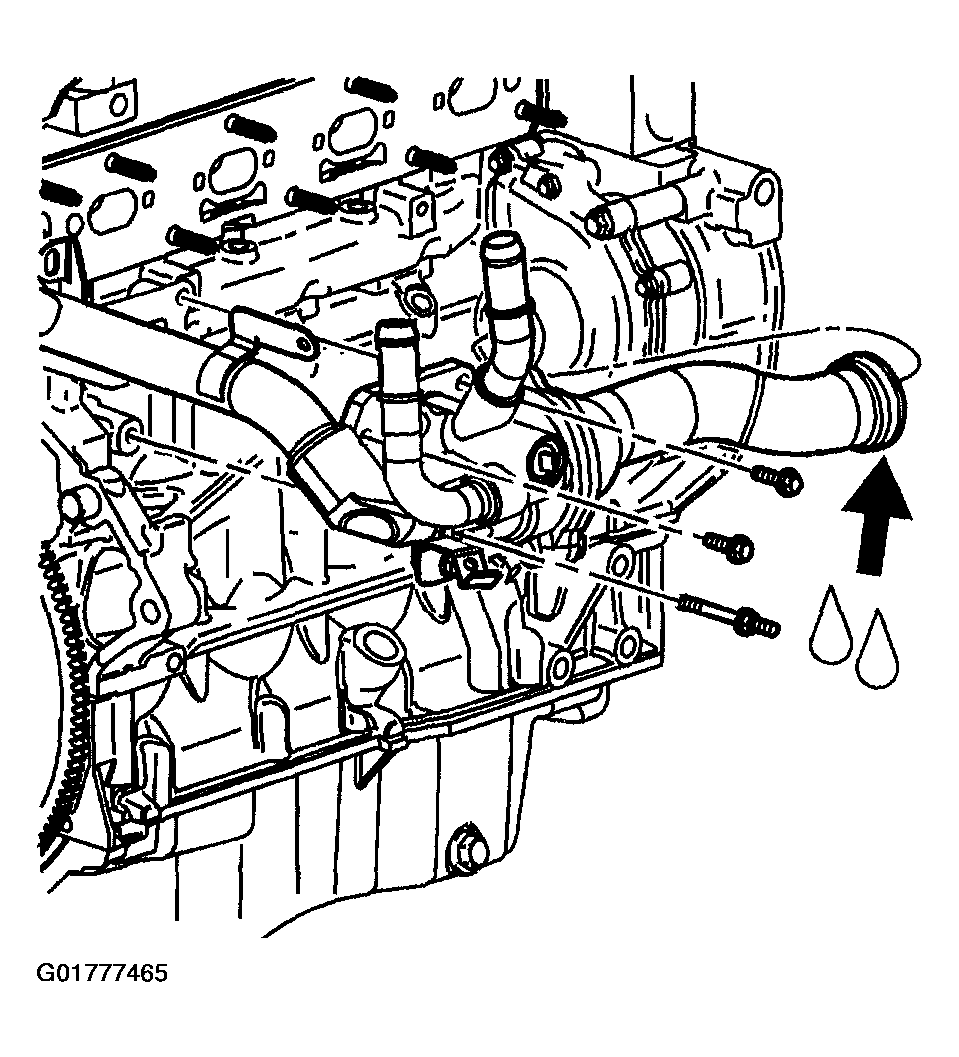

   Fig 2: Thermostat Housing

   Courtesy of GENERAL MOTORS CORP.
8. Install the water pipe support bracket and bolts.

   Tighten

   Tighten the bolts to 10 N.m (89 lb in).

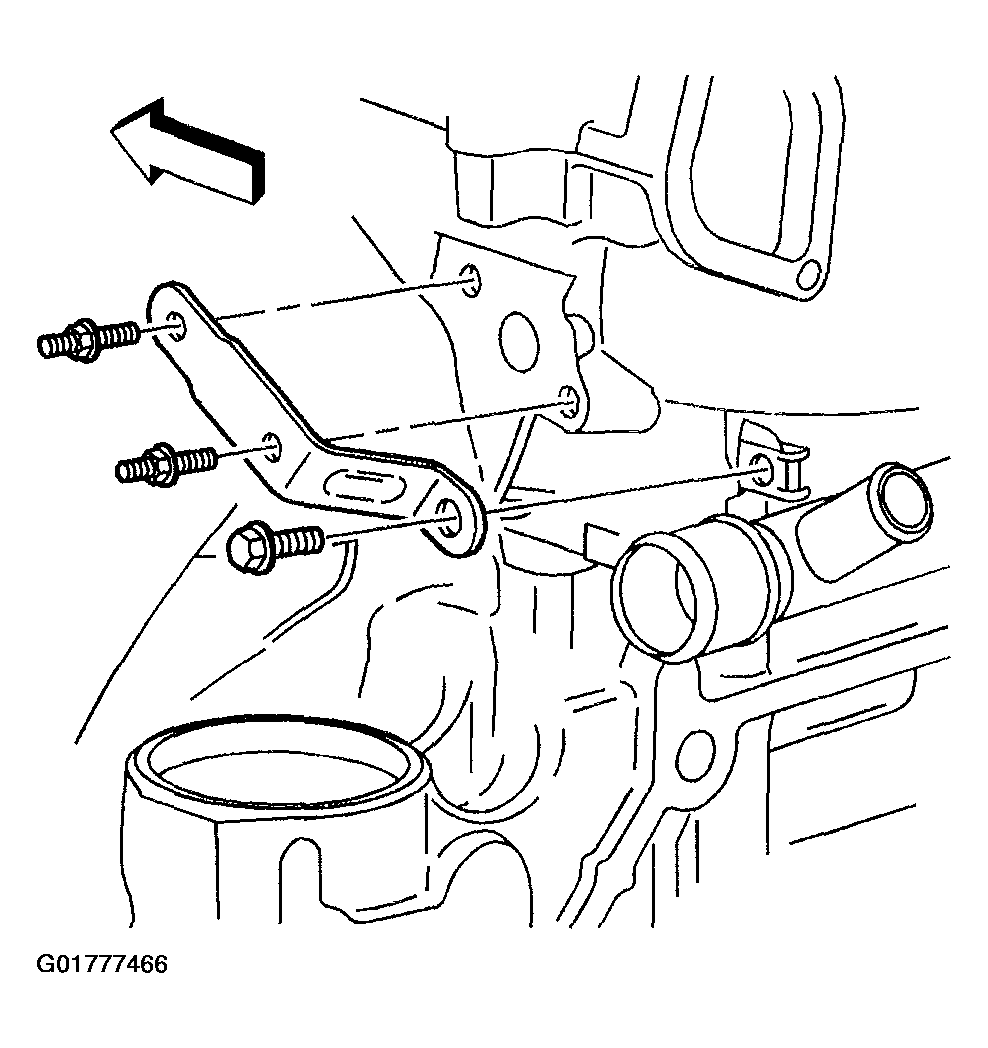

   Fig 3: Water Pipe Support Bracket

   Courtesy of GENERAL MOTORS CORP.
9. Install the engine coolant temperature sensor by hand.
10. Tighten the engine coolant temperature sensor.

    Tighten

    Tighten the engine coolant temperature sensor to 20 N.m (15 lb ft).

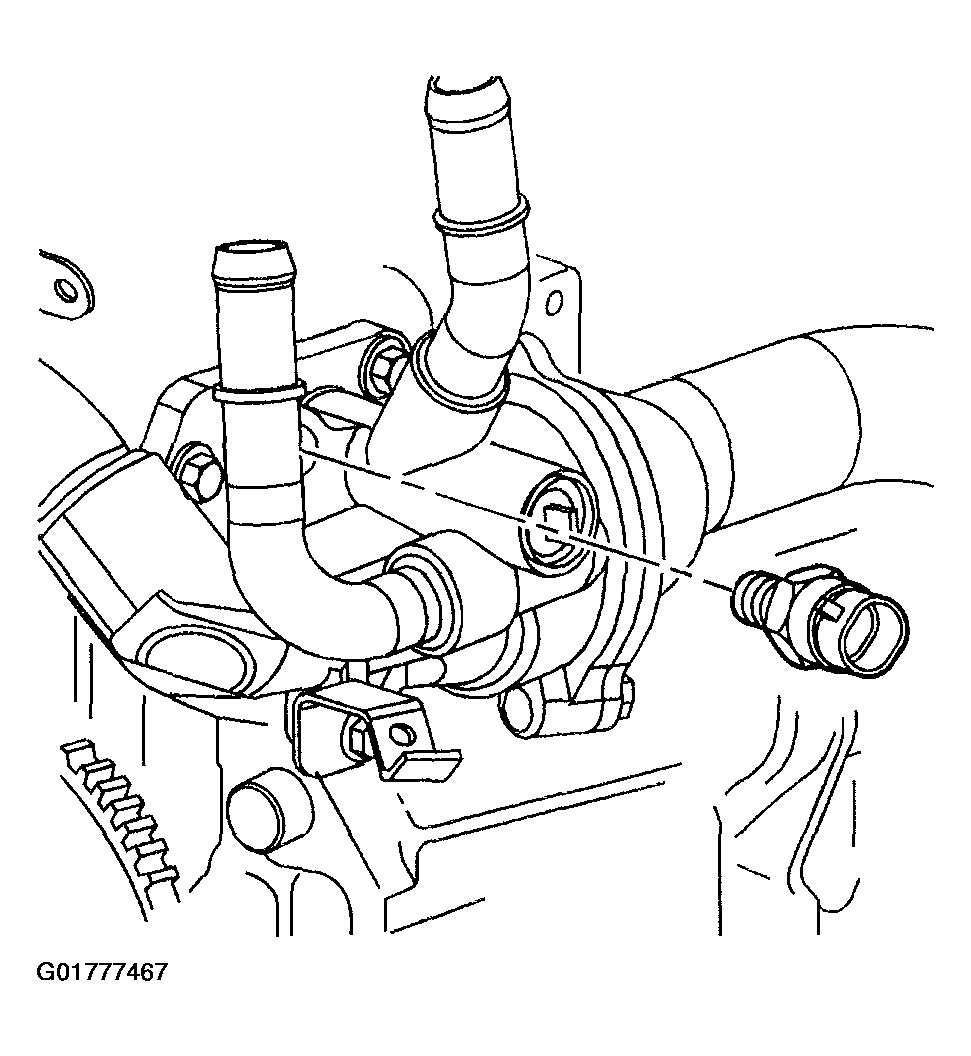

    Fig 4: Engine Coolant Temperature

    Courtesy of GENERAL MOTORS CORP.
