Oil Pump Assemble

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate all oil pump parts with engine oil.
  2. Install the oil pump gerotor cover and bolts.

    Tighten

    Tighten the oil pump gerotor bolts to 6 N.m (53 lb in).

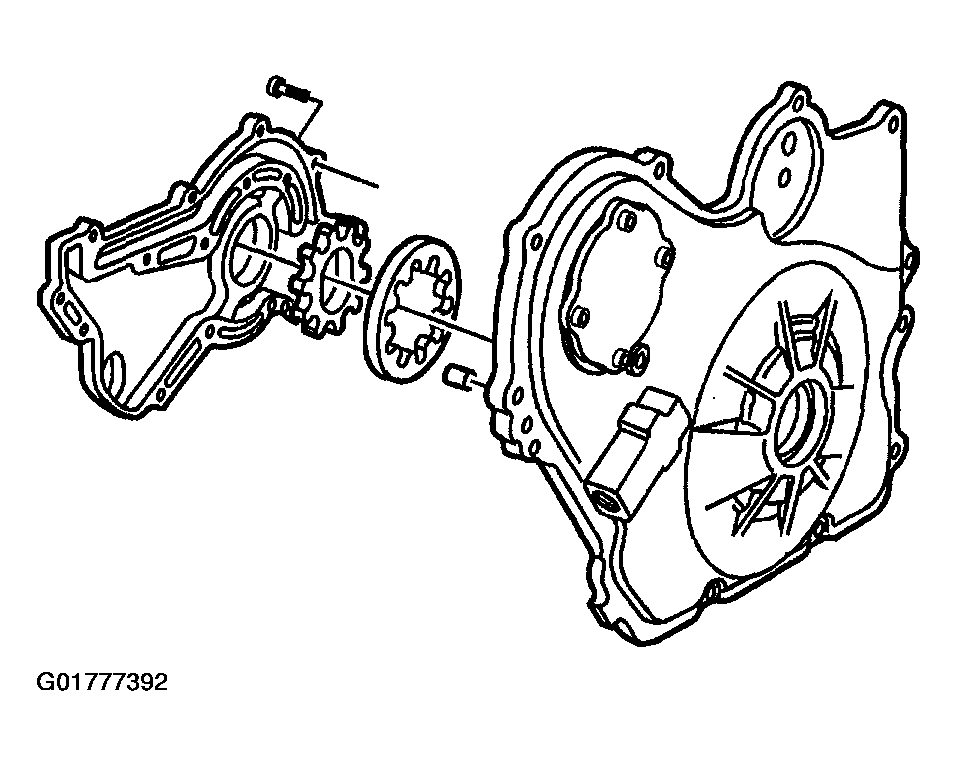

    Fig 1: Oil Pump Assembly
    G01777392Courtesy of GENERAL MOTORS CORP.
  3. Install the pressure relief valve piston.
  4. Install the pressure relief valve spring.

    Tighten

    Tighten the pressure relief valve plug to 40 N.m (30 lb ft).

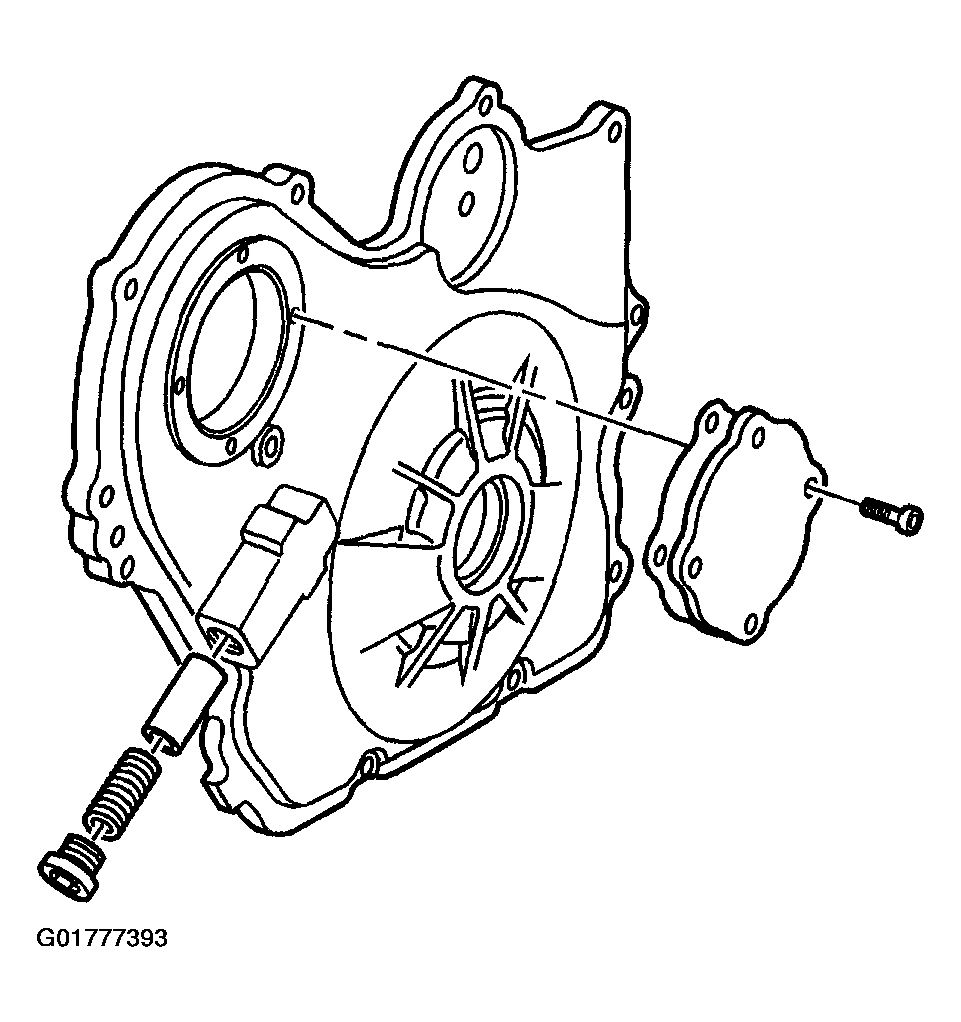

    Fig 2: Pressure Relief Valve
    G01777393Courtesy of GENERAL MOTORS CORP.
