Oil Pan Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that the oil pan and mounting surface on the lower crankcase are free of all oil and debris.
  2. Apply a 2 mm bead of RTV GM P/N United States 12346286, GM P/N Canada 10953472 around the perimeter of the oil pan and the oil suction port opening. Do not over apply the RTV. More than a 2 mm bead is not required.

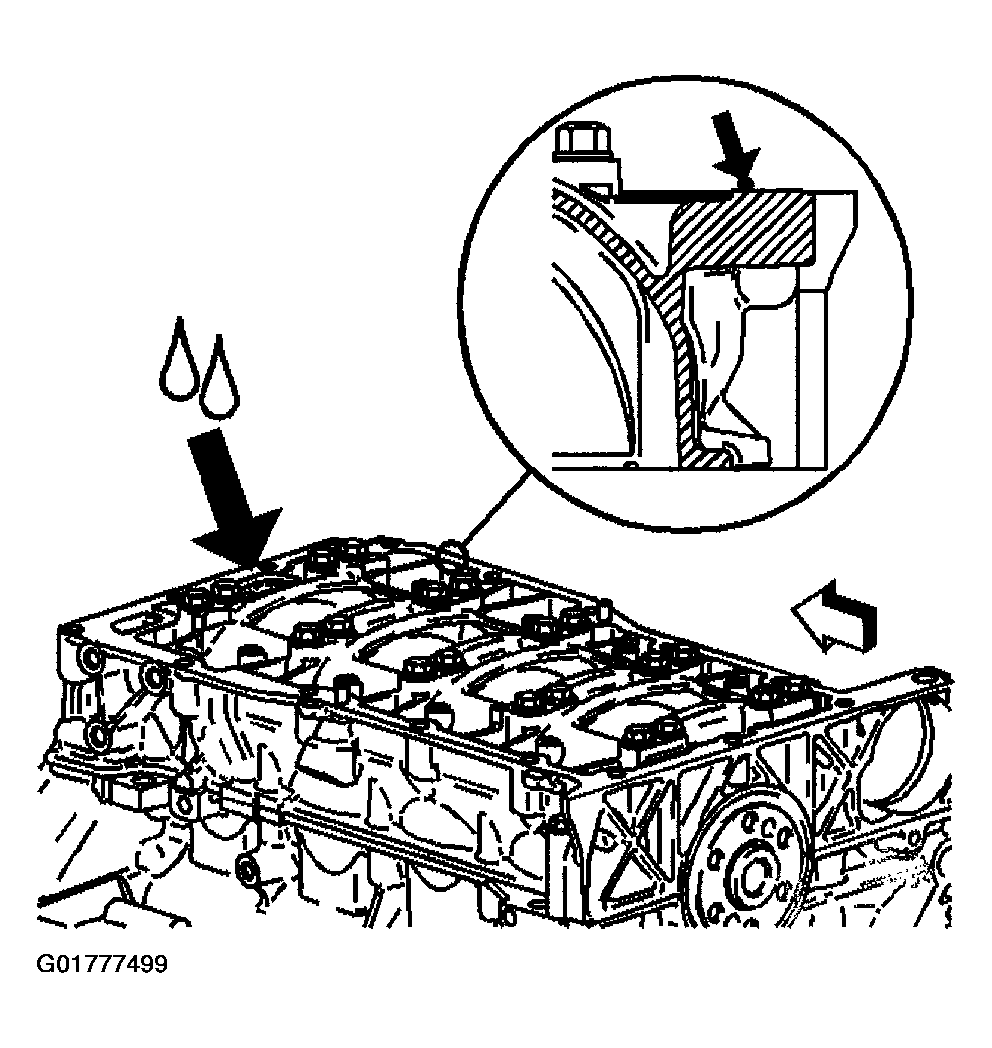

    Fig 1: Lower Crankcase
    G01777499Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pan.

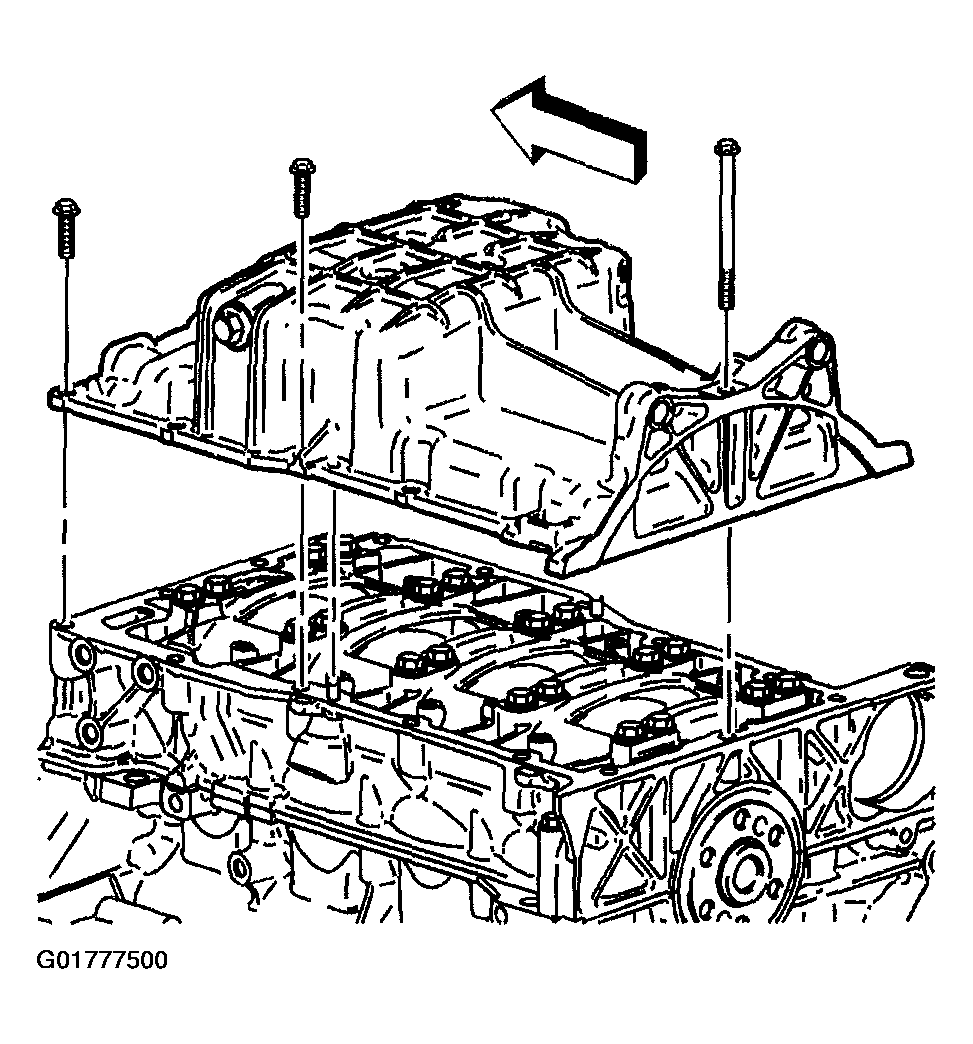

    Fig 2: Oil Pan
    G01777500Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan bolts hand tight.

    Tighten

    Tighten the oil pan bolts to 25 N.m (18 lb ft) in sequence.

    Fig 3: Oil Pan Bolt Tightening Sequence
    G01777501Courtesy of GENERAL MOTORS CORP.
