Oil Level Indicator & Tube Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove knock sensor connector from the oil level indicator tube.
  2. Remove the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bracket to the intake manifold bolt.
  4. Remove the oil level indicator and the oil level indicator tube from the oil pan.

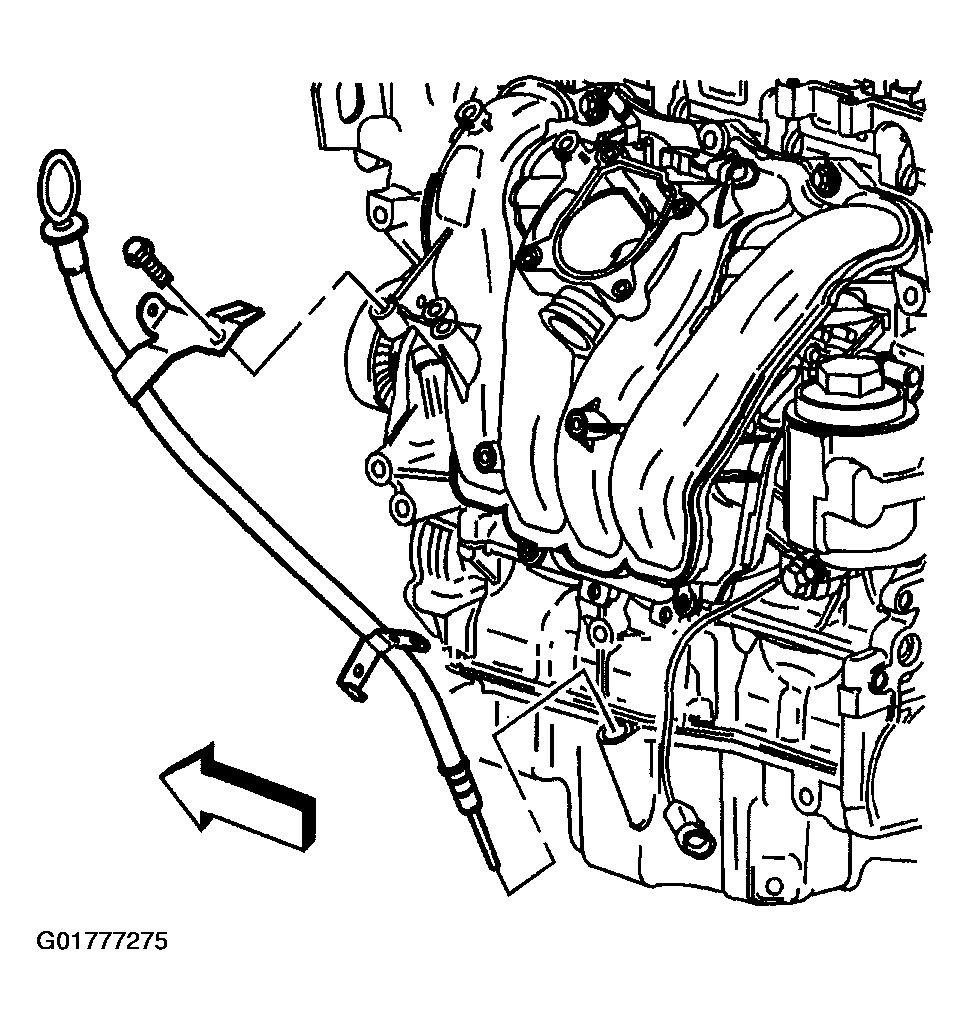

    Fig 1: Oil Level Indicator Tube
    G01777275Courtesy of GENERAL MOTORS CORP.
