Intake Camshaft, Follower & Adjuster Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.

  1. Mark bearing caps to ensure they are installed in the same position.
  2. Remove the intake camshaft bearing cap bolts.
  3. Remove the camshaft bearing caps.
  4. Remove the intake camshaft.

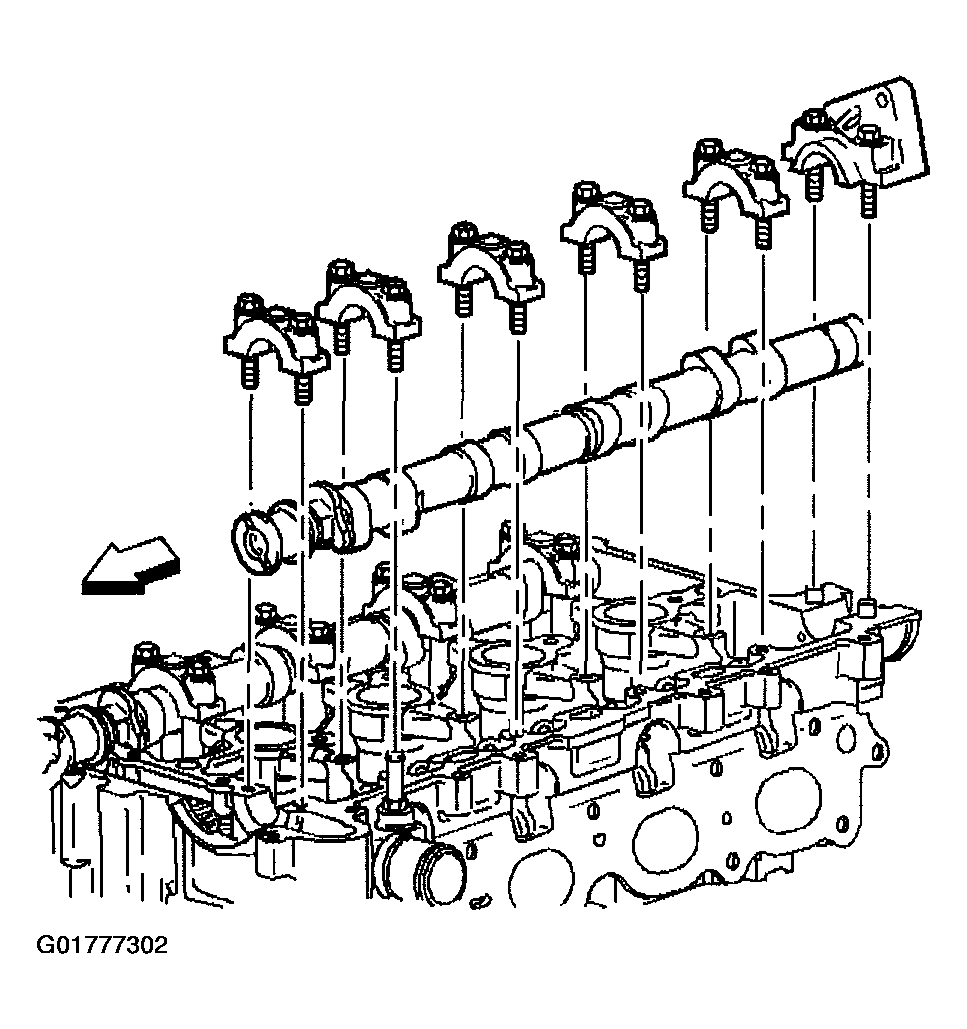

    Fig 1: Intake Camshaft
    G01777302Courtesy of GENERAL MOTORS CORP.

    Important:  Keep all of the roller finger followers and hydraulic element adjusters in order so that they can be reinstalled in their respective locations.

  5. Remove the intake camshaft roller finger followers.

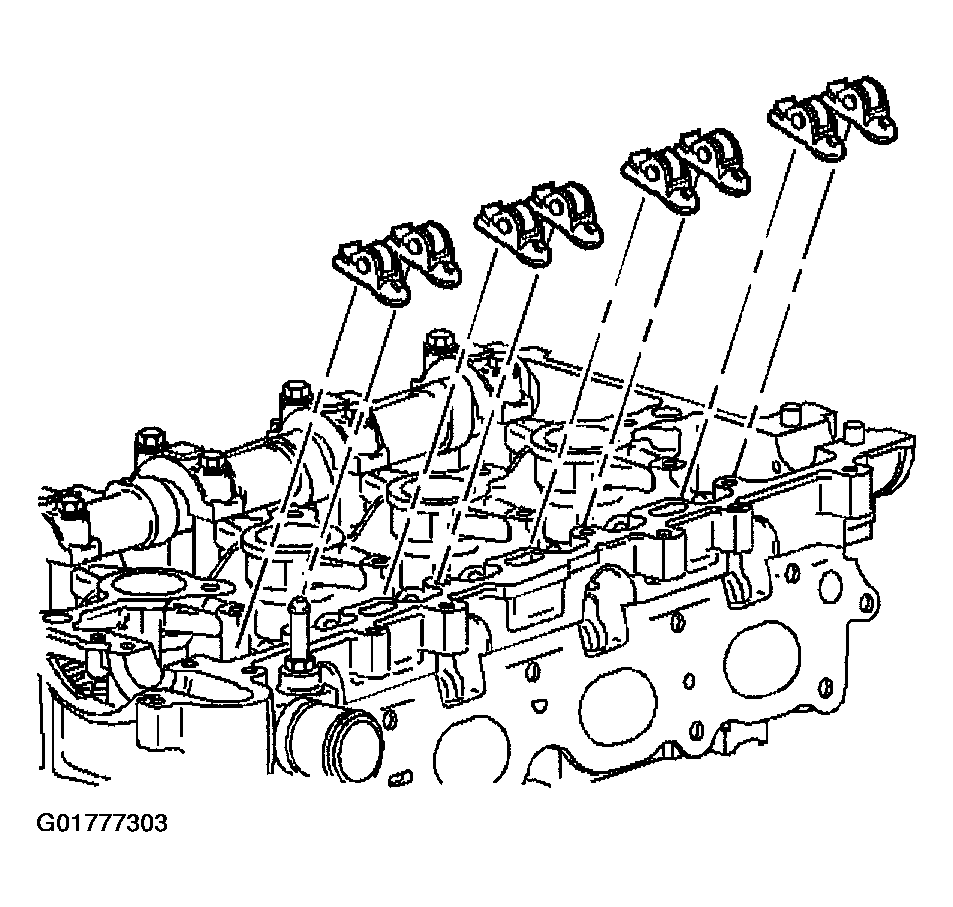

    Fig 2: Intake Camshaft Roller Finger Followers
    G01777303Courtesy of GENERAL MOTORS CORP.
  6. Remove the hydraulic element adjusters.

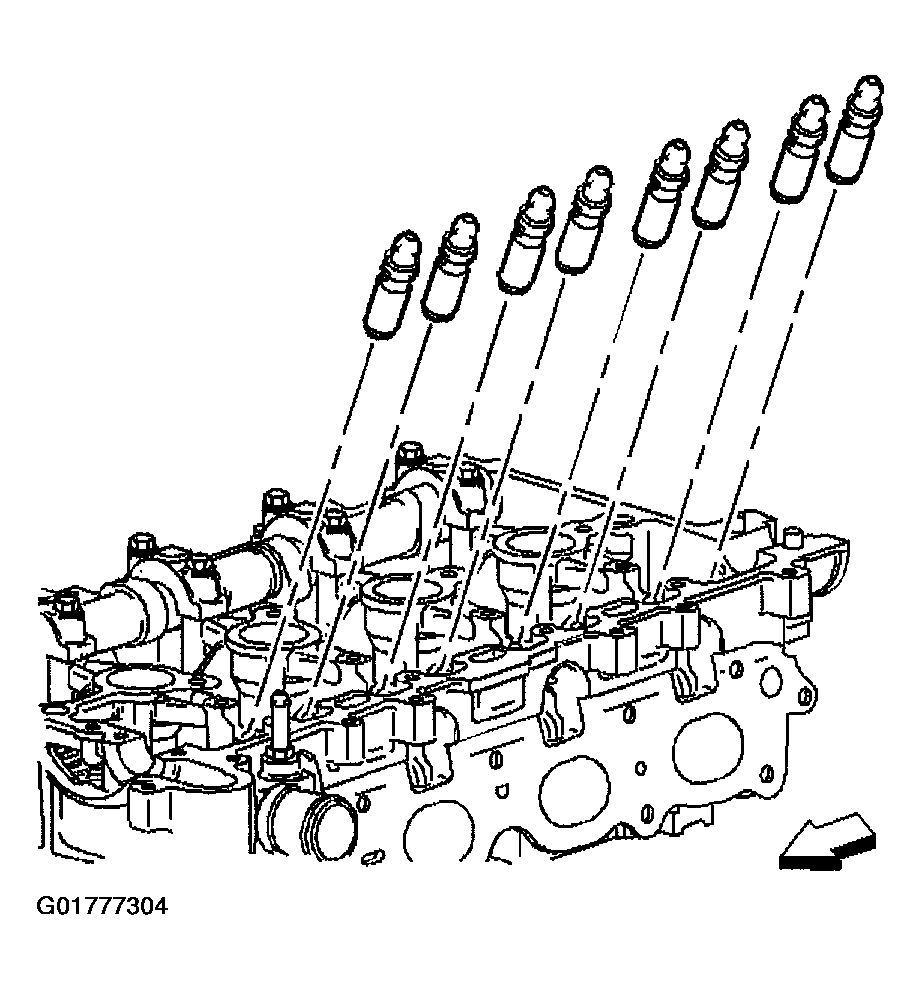

    Fig 3: Hydraulic Element Adjusters
    G01777304Courtesy of GENERAL MOTORS CORP.
