Exhaust Manifold Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield.

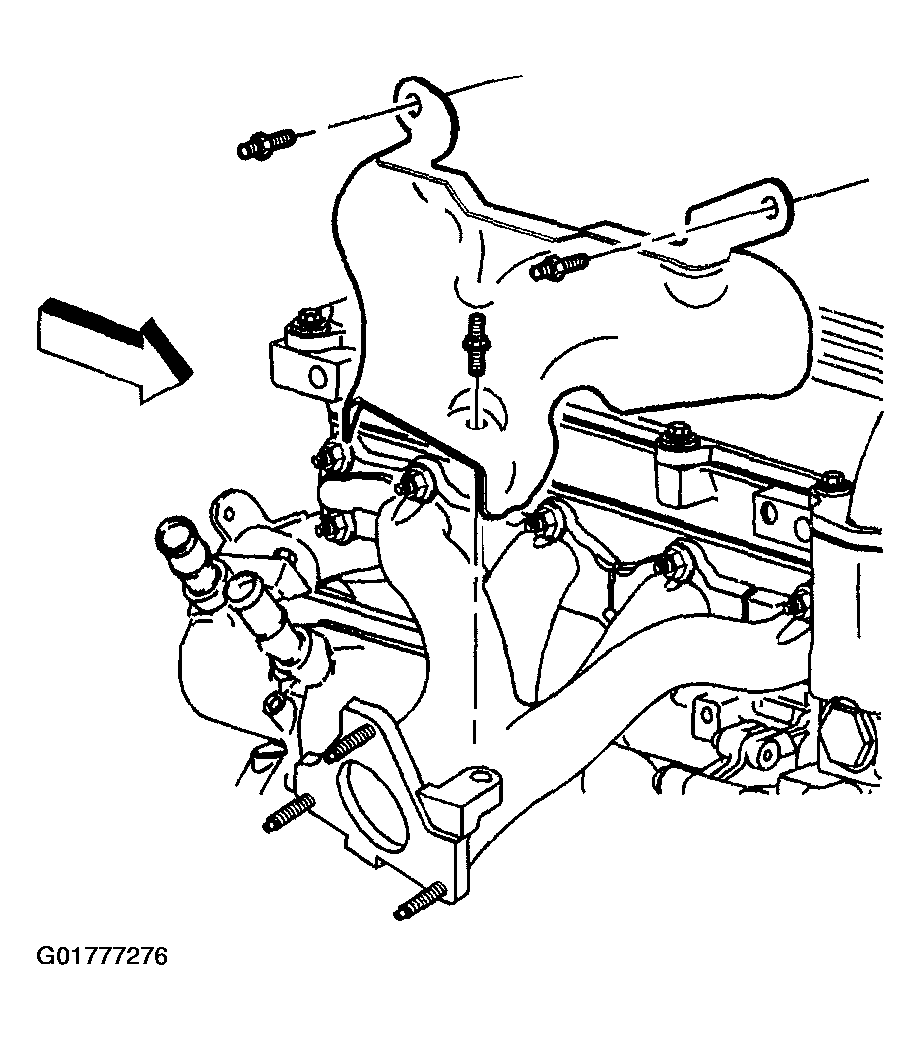

    Fig 1: Exhaust Manifold Heat Shield
    G01777276Courtesy of GENERAL MOTORS CORP.
  2. Remove the block heater if equipped.

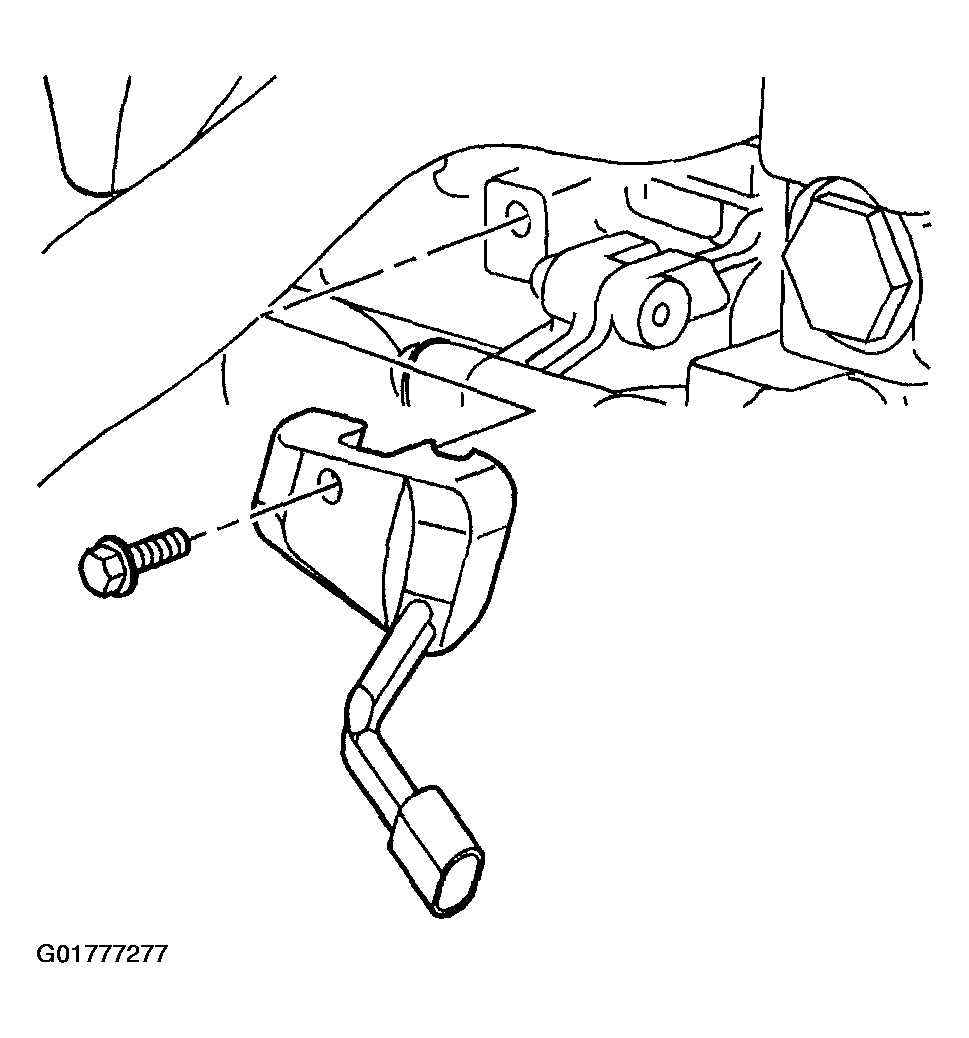

    Fig 2: Block Heater
    G01777277Courtesy of GENERAL MOTORS CORP.
  3. Remove the oxygen sensor.

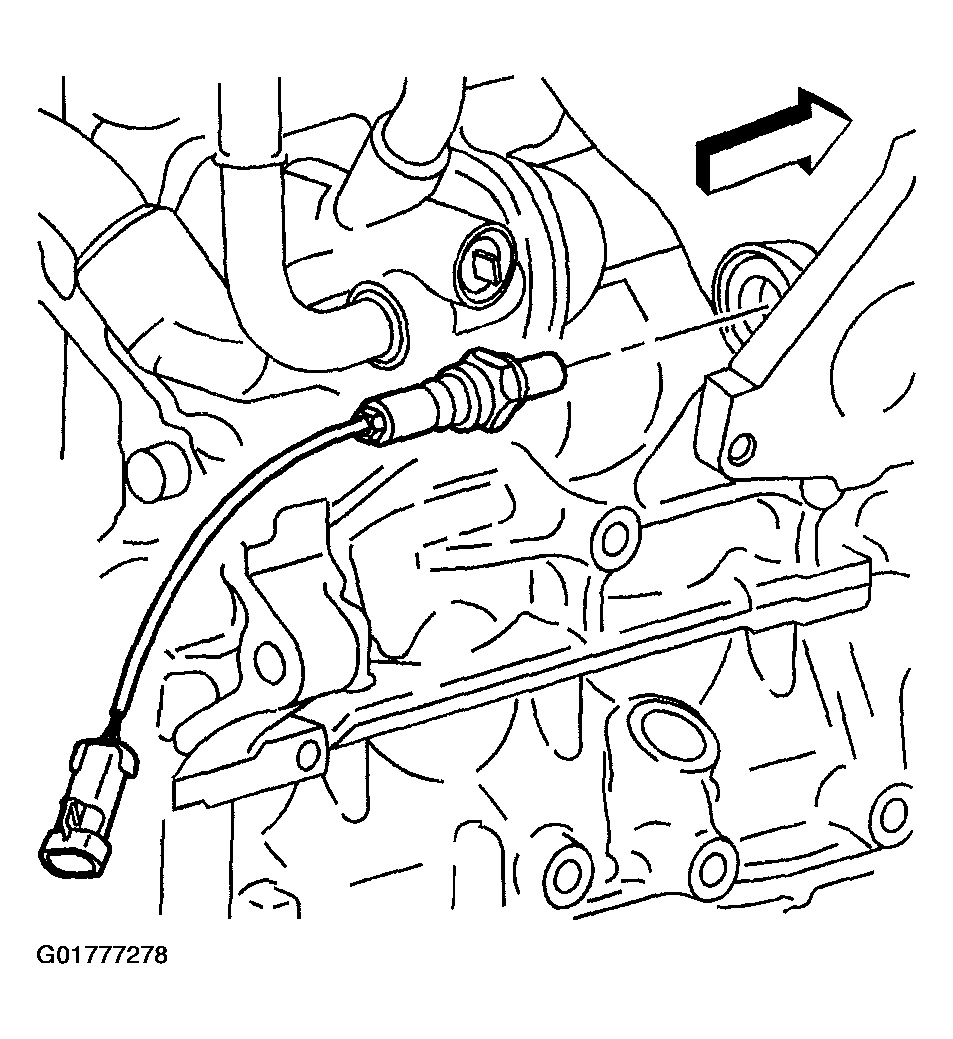

    Fig 3: Oxygen Sensor
    G01777278Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold to the cylinder head retaining nuts.
  5. Remove the exhaust manifold.
  6. Clean all of the sealing surfaces.
  7. If the exhaust manifold is being replaced, transfer the following parts:
    • The exhaust manifold heat shield
    • The oxygen sensor
    • Replace the exhaust manifold nuts

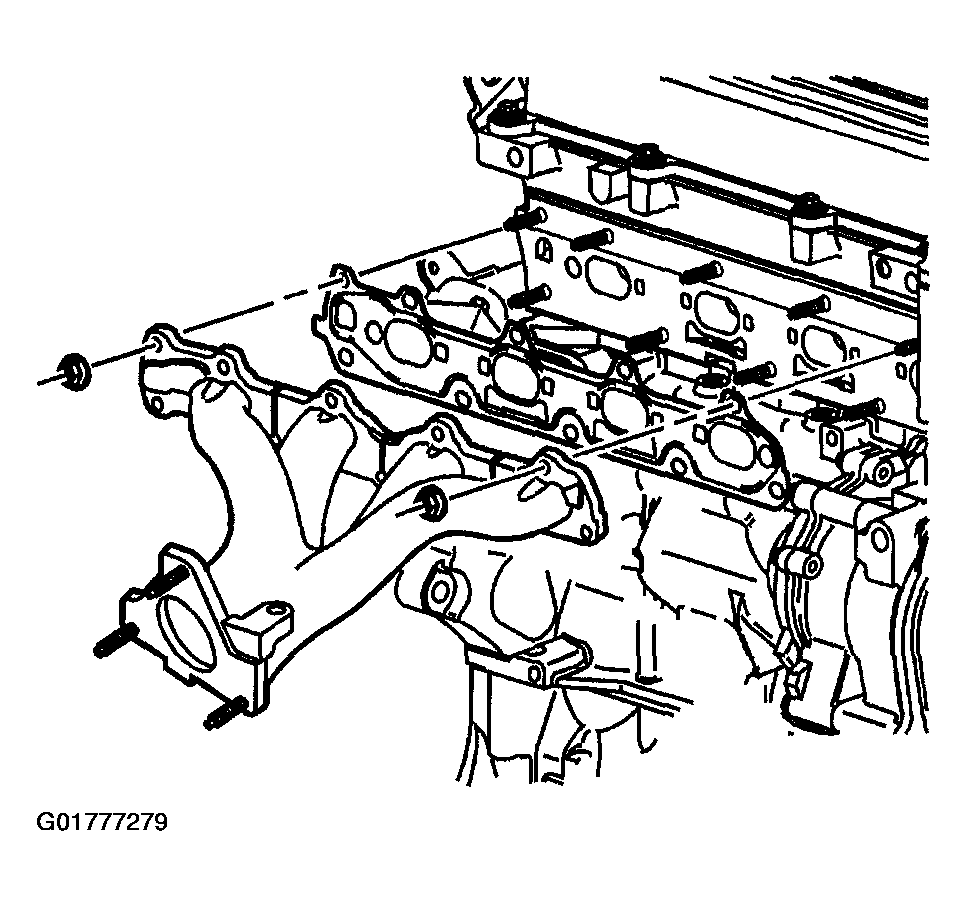

    Fig 4: Exhaust Manifold
    G01777279Courtesy of GENERAL MOTORS CORP.
