Engine Front Cover & Oil Pump Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt tensioner.

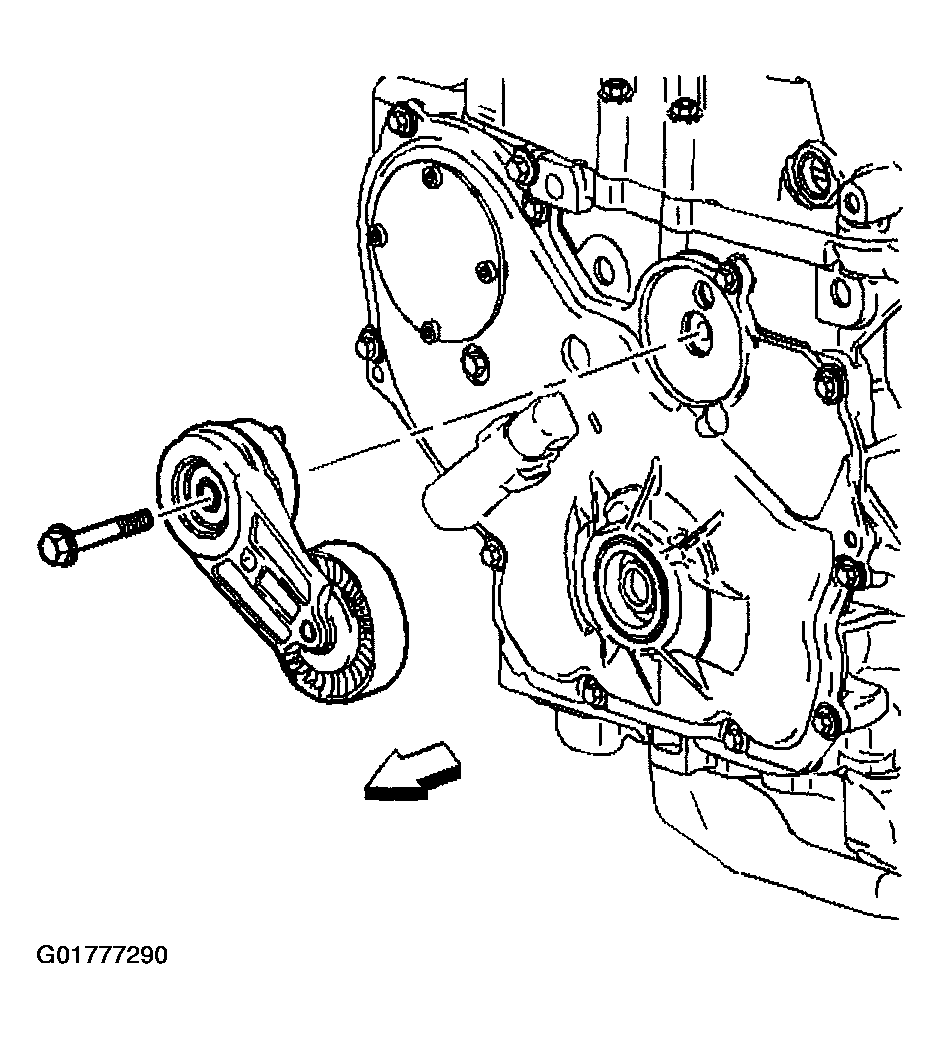

    Fig 1: Accessory Drive Belt Tensioner
    G01777290Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine front cover bolts.

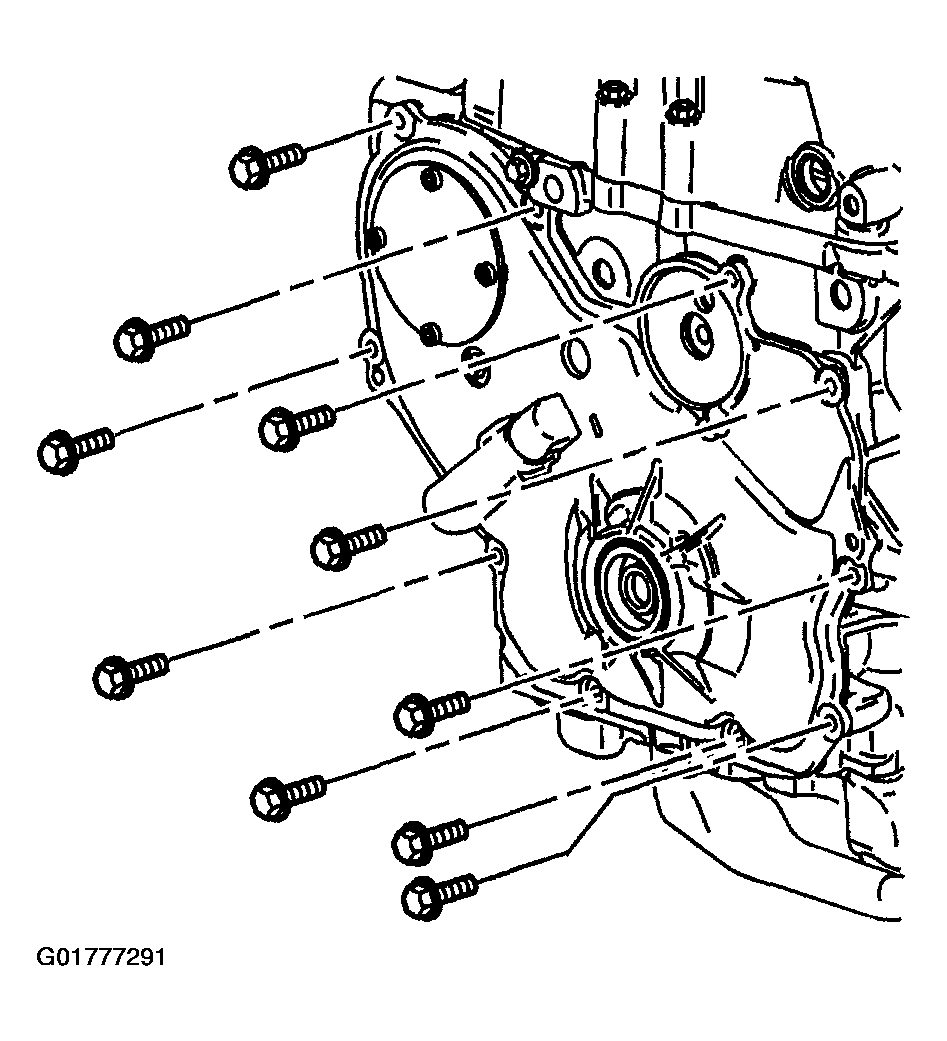

    Fig 2: Engine Front Cover Bolts
    G01777291Courtesy of GENERAL MOTORS CORP.
  3. Remove the long water pump bolt.
  4. Remove the engine front cover and gaskets.
  5. Remove the crankshaft front cover oil seal with an appropriate tool.

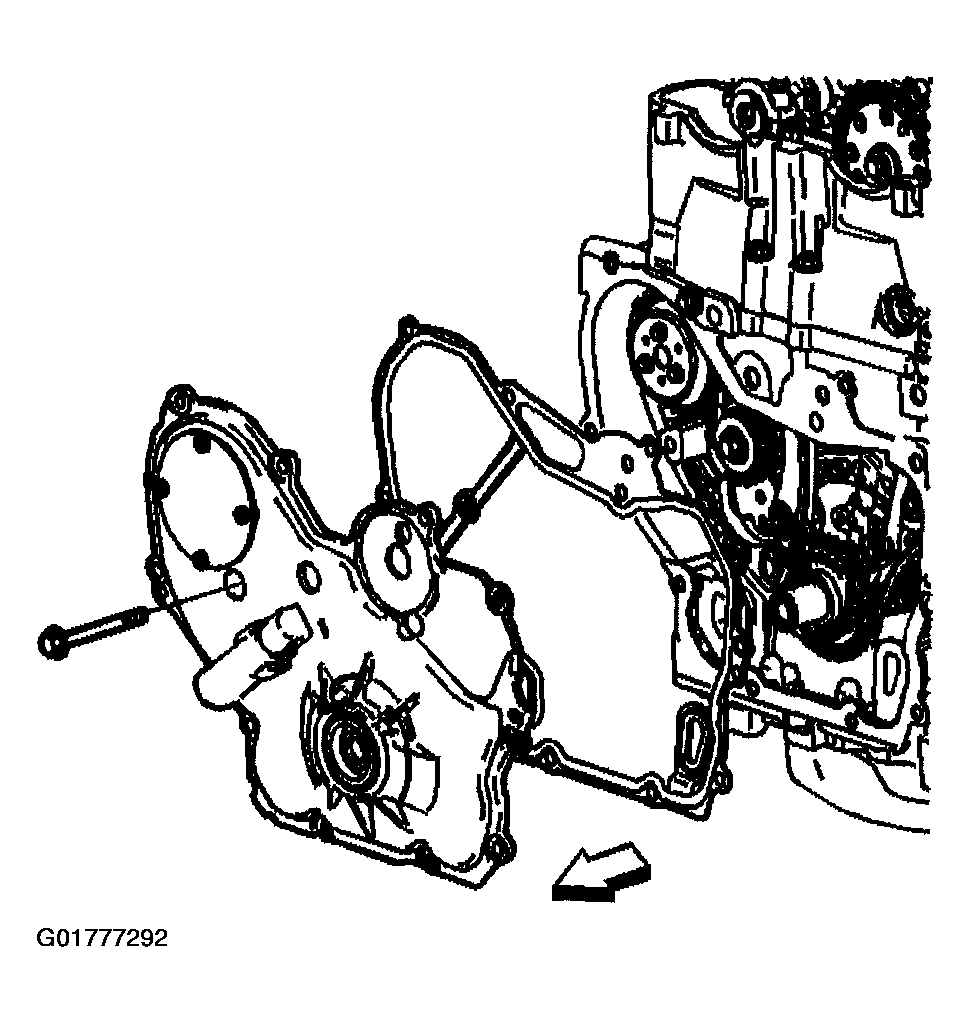

    Fig 3: Crankshaft Front Cover & Gasket
    G01777292Courtesy of GENERAL MOTORS CORP.
