Engine Front Cover & Oil Pump Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover with a new gasket.
  2. Install the long water pump bolt.

    Tighten

    Tighten the water pump bolt to 25 N.m (18 lb ft).

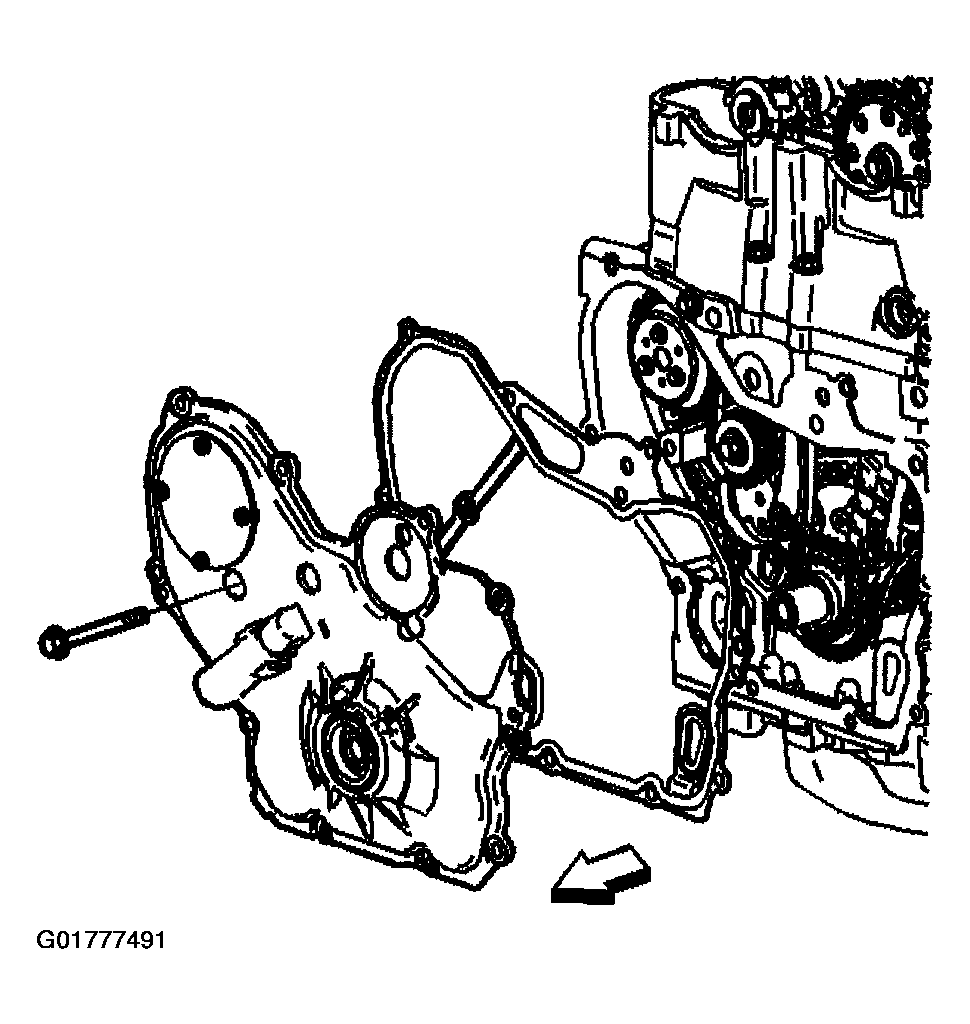

    Fig 1: Engine Front Cover
    G01777491Courtesy of GENERAL MOTORS CORP.
  3. Install the engine front cover bolts.

    Tighten

    Tighten the engine front cover bolts to 25 N.m (18 lb ft).

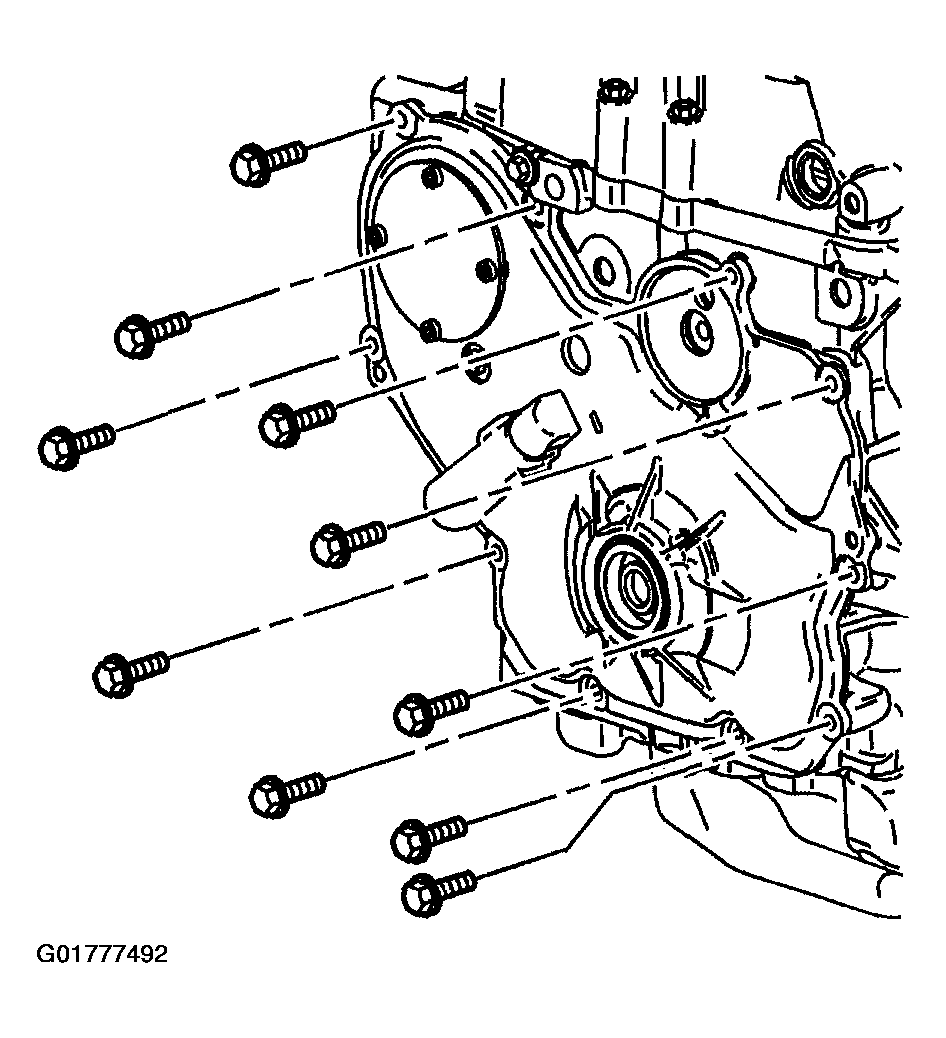

    Fig 2: Engine Front Cover Bolts
    G01777492Courtesy of GENERAL MOTORS CORP.
  4. Install the accessory drive belt tensioner.

    Tighten

    Tighten the accessory drive belt tensioner bolt to 45 N.m (33 lb ft).

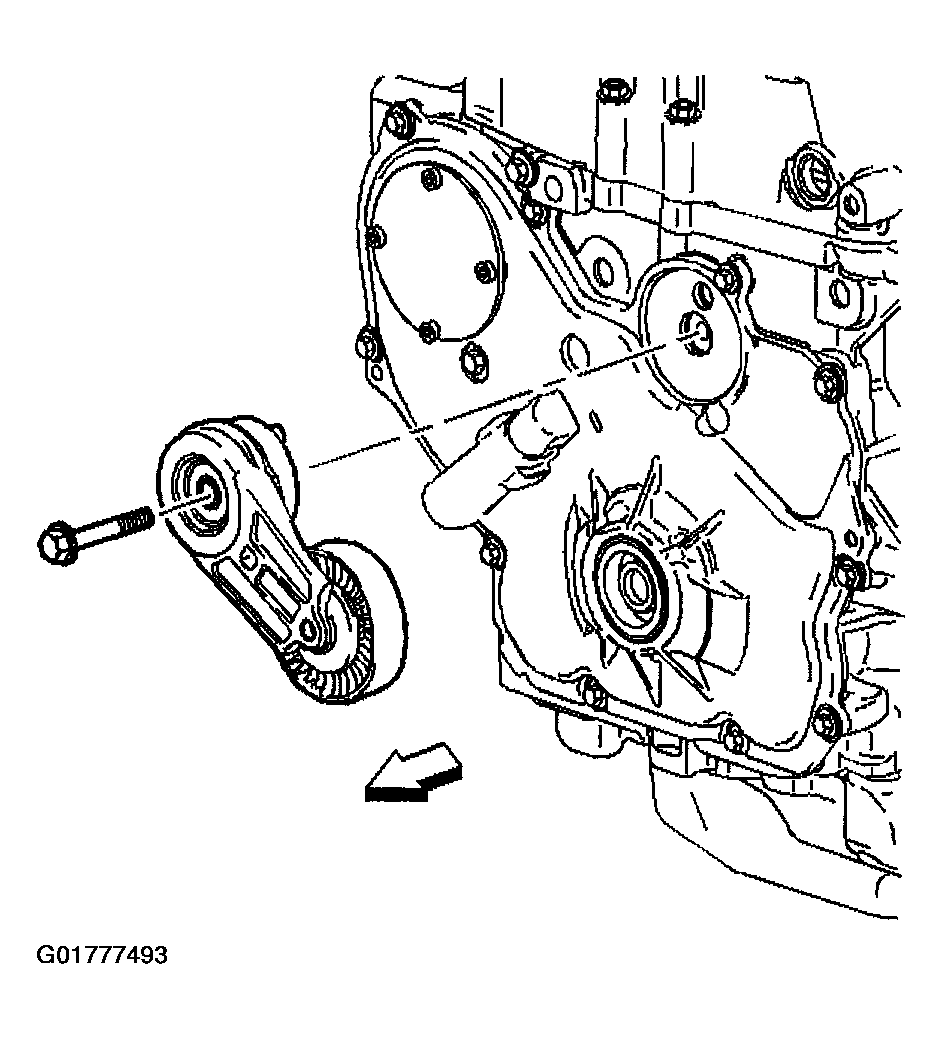

    Fig 3: Accessory Drive Belt Tensioner
    G01777493Courtesy of GENERAL MOTORS CORP.
