Engine Flywheel Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38122-A  Crankshaft Balancer Holder

Important:  It may be necessary to remove the chamfer (bevel) from the edge of an 18 mm socket in order to get full socket engagement on the thin headed flywheel bolts.

Do not orientate the flywheel to the crankshaft. It is balanced separately from the engine.

  1. Remove the flywheel attaching bolt. Use the J 38122-A  to prevent crankshaft rotation.
    Fig 1: Removing Flywheel
    G01777272Courtesy of GENERAL MOTORS CORP.
  2. Remove the flywheel, if the vehicle has a manual transmission.

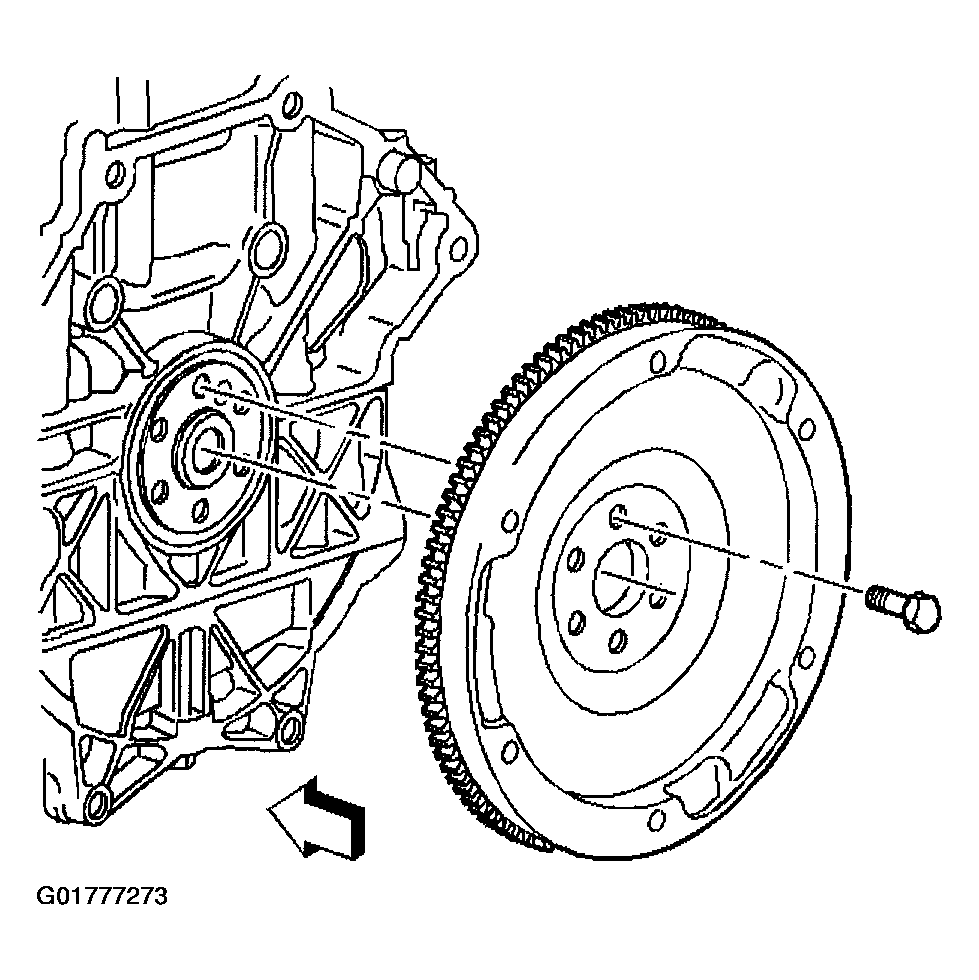

    Fig 2: Flywheel Bolts
    G01777273Courtesy of GENERAL MOTORS CORP.
  3. Remove the flywheel retainer for vehicle with automatic transmission.
  4. Remove the flywheel, if the vehicle has an automatic transmission.
  5. Clean the thread adhesive from the flywheel bolt holes. Use a nylon bristle brush to clean the holes in the crankshaft.
