Engine Flywheel Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

  1. Install the flywheel.
  2. Install the new bolts.
  3. Holding the crankshaft damper with the J 38122-A,  tighten the bolts evenly.

    Tighten

    Using the J 36660-A,  tighten the bolts to 53 N.m (39 lb ft), plus 25 degrees.

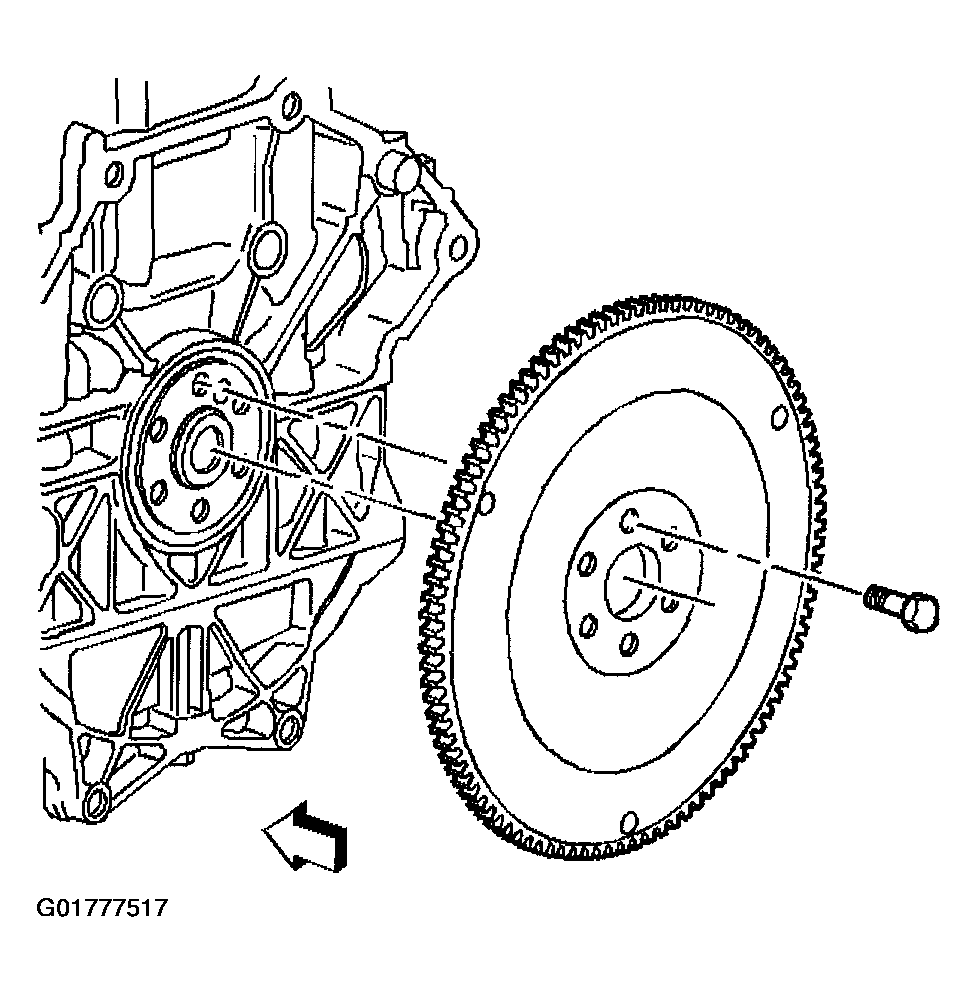

    Fig 1: Flywheel
    G01777517Courtesy of GENERAL MOTORS CORP.
