Engine Block Disassemble

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water jacket drain plug.
  2. Remove the oil flow check valve.
  3. Remove the oil passage plug.
  4. Remove the rear oil passage plug.

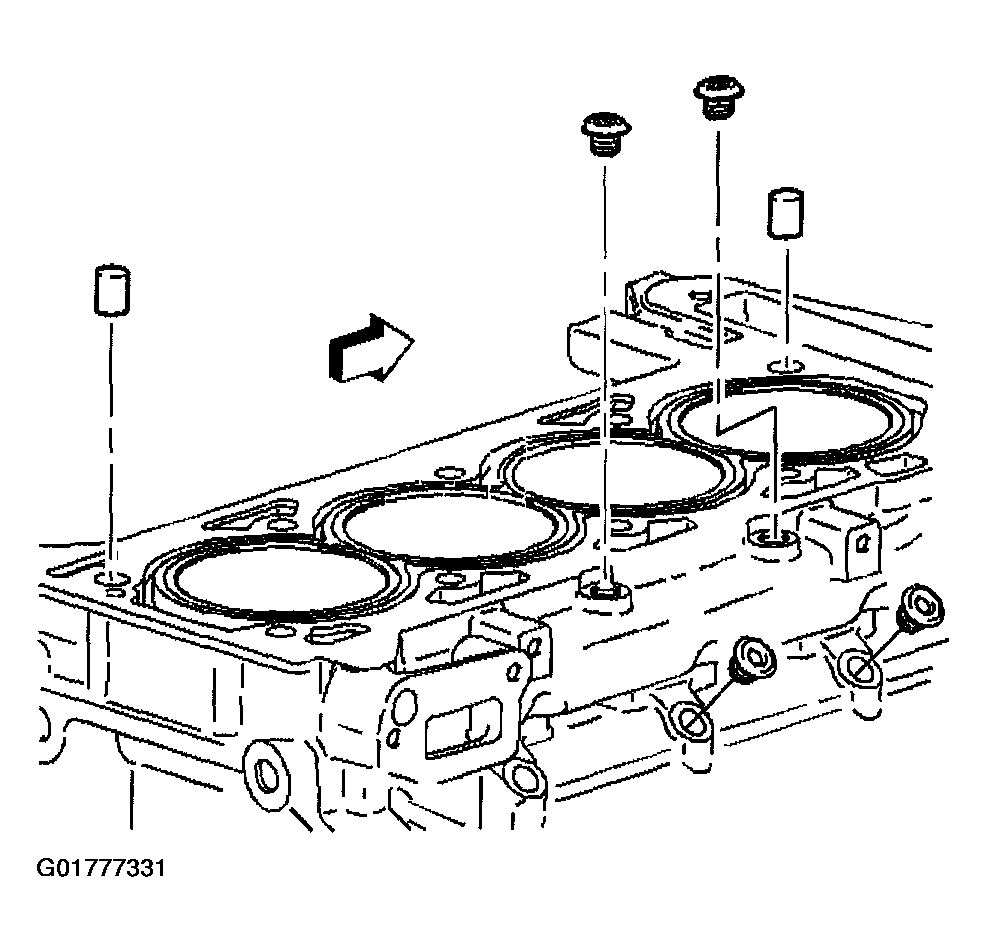

    Fig 1: Rear Oil Passage Plug
    G01777331Courtesy of GENERAL MOTORS CORP.
  5. Remove the knock sensor and bolt.

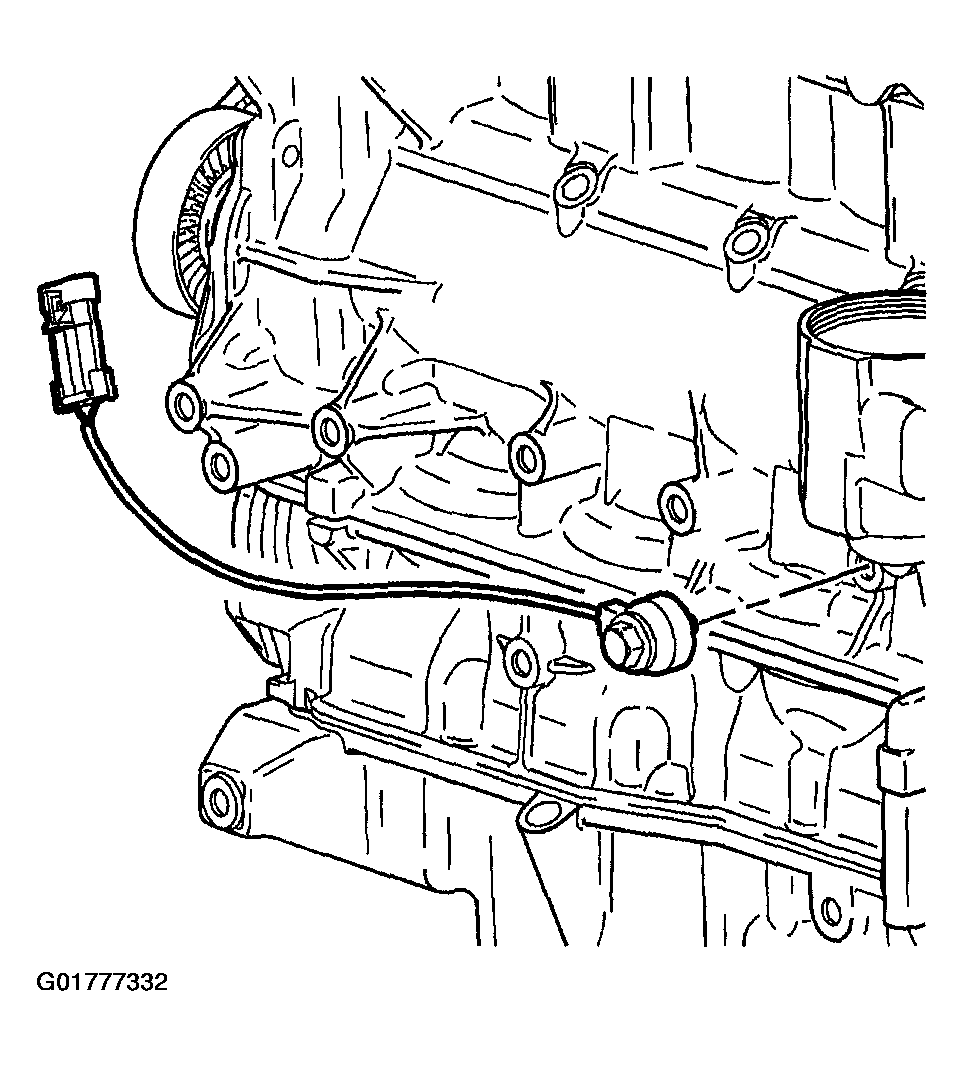

    Fig 2: Knock Sensor
    G01777332Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil pressure switch.

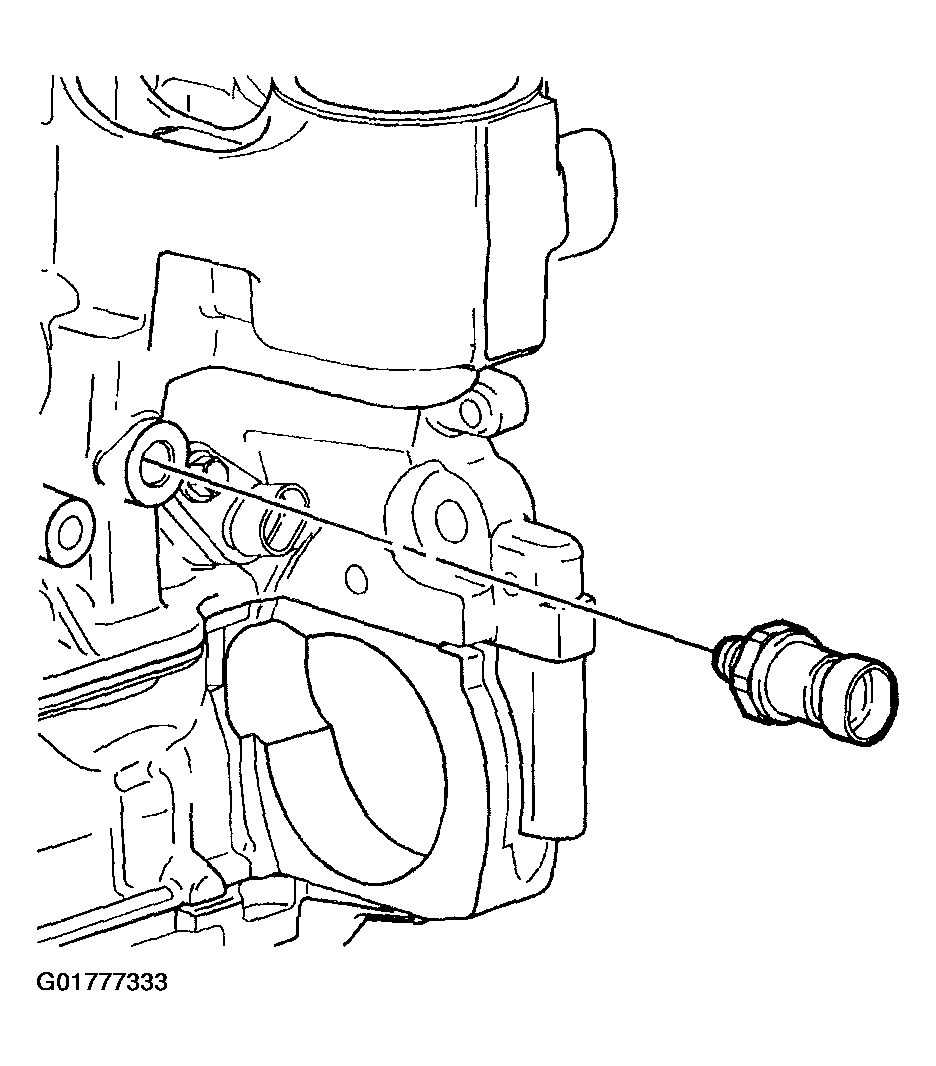

    Fig 3: Oil Pressure Switch
    G01777333Courtesy of GENERAL MOTORS CORP.
  7. Remove the crankshaft position sensor and bolt.

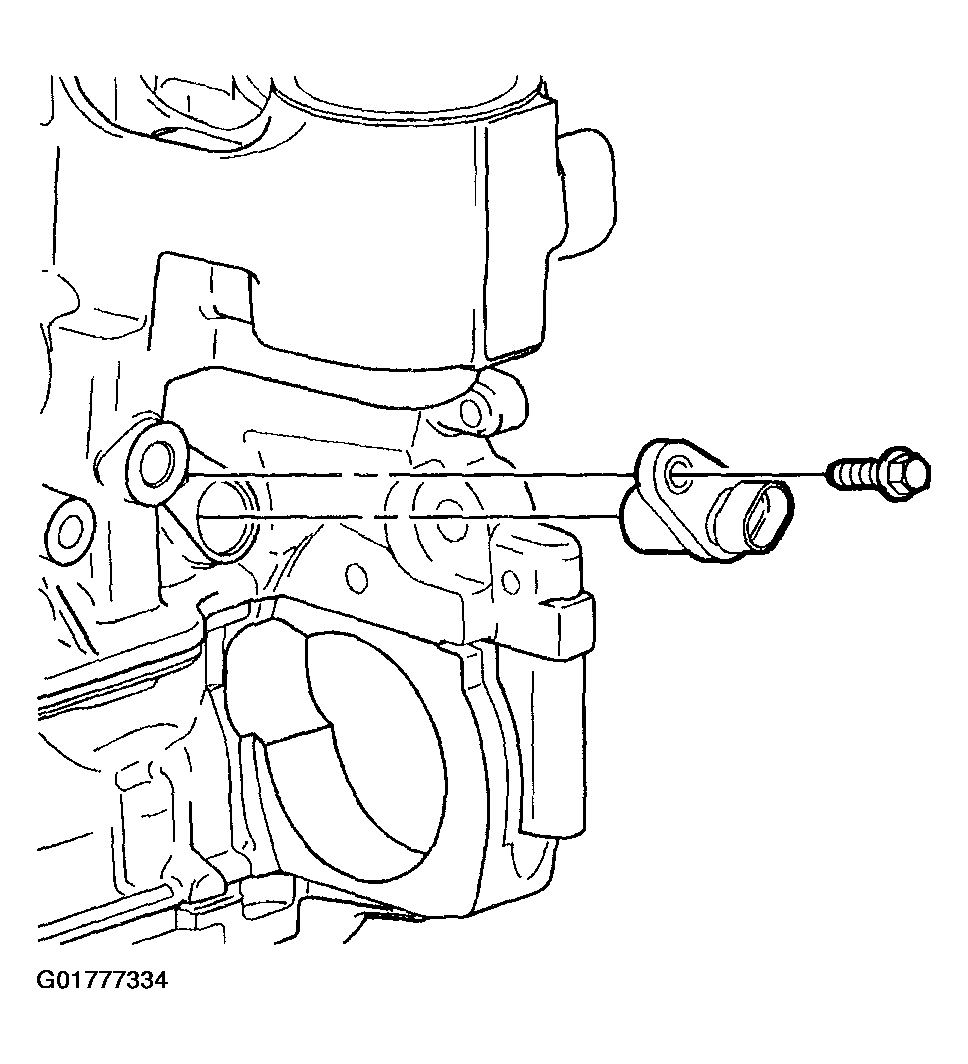

    Fig 4: Crankshaft Position Sensor
    G01777334Courtesy of GENERAL MOTORS CORP.
