Cylinder Head Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A  Torque Angle Meter

Important:  Do not use any sealing material.

  1. Install the cylinder head gasket to the block.
  2. Install the cylinder head.

    Important:  Always use new cylinder head bolts.

  3. Lightly apply clean engine oil to the threads and the bottom side of the flange of the head bolt and allow the oil to drain before installing.

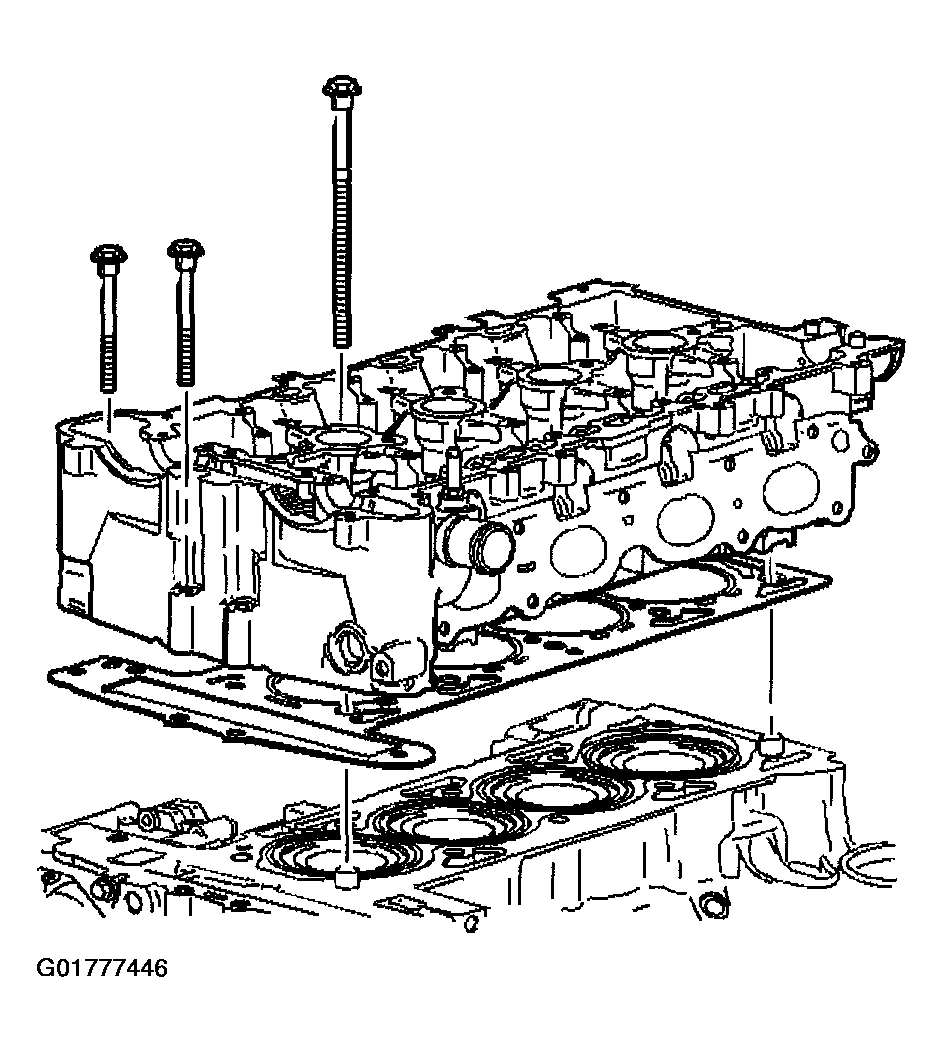

    Fig 1: Installing Cylinder Head
    G01777446Courtesy of GENERAL MOTORS CORP.
  4. Install and tighten the cylinder head bolts in sequence.

    Tighten

    • Tighten bolts 30 N.m (22 lb ft).
    • Then turn all the bolts 155 degrees in sequence. Use the J 36660-A.

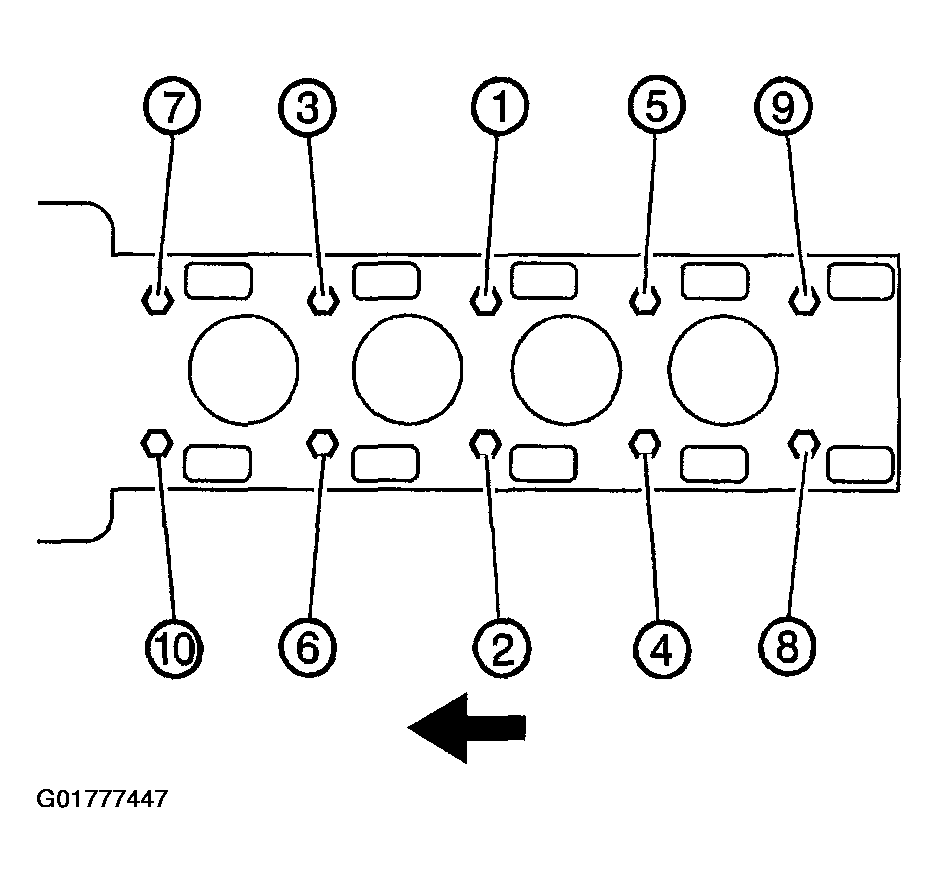

    Fig 2: Cylinder Head Bolt Tightening Sequence
    G01777447Courtesy of GENERAL MOTORS CORP.
  5. Install the front cylinder head bolts.

    Tighten

    Tighten the cylinder head bolts to 35 N.m (26 lb ft).

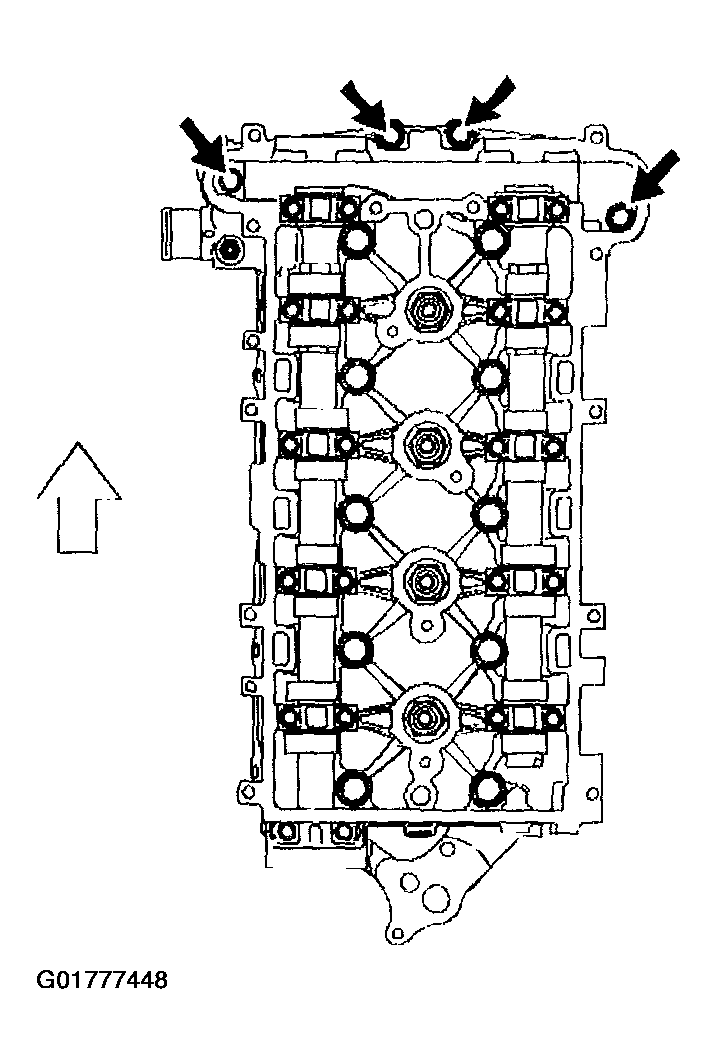

    Fig 3: Front Cylinder Head Bolts
    G01777448Courtesy of GENERAL MOTORS CORP.
  6. Install the EGR cover (2), the bolts (1), and the EGR cover gasket (3).

    Tighten

    Tighten the EGR cover bolts to 25 N.m (18 lb ft).

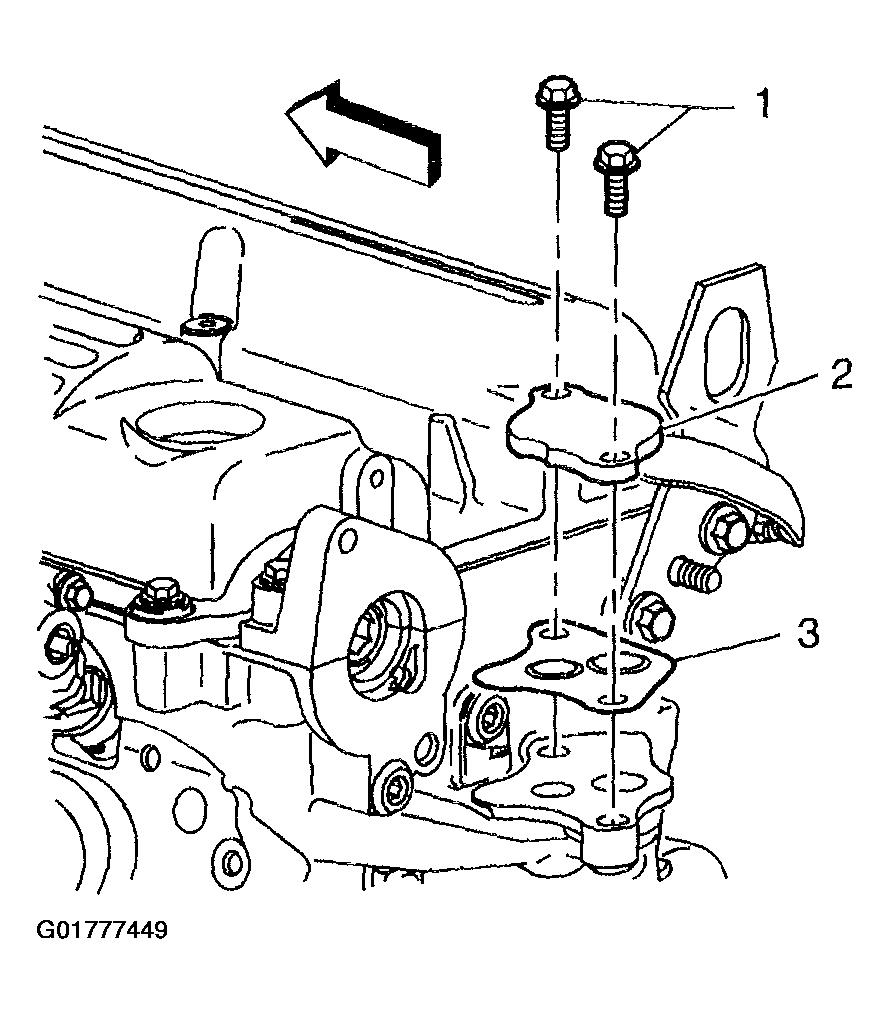

    Fig 4: EGR Cover
    G01777449Courtesy of GENERAL MOTORS CORP.
