Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 42067  Rear Main Seal Installer

  1. Remove excess sealer from seal recess.
  2. Lubricate the outside diameter of the crankshaft seal with clean engine oil.
  3. Using the J 42067,  press the new crankshaft seal into the housing. The J 42067  also establishes the depth of the seal in the crankshaft seal bore.

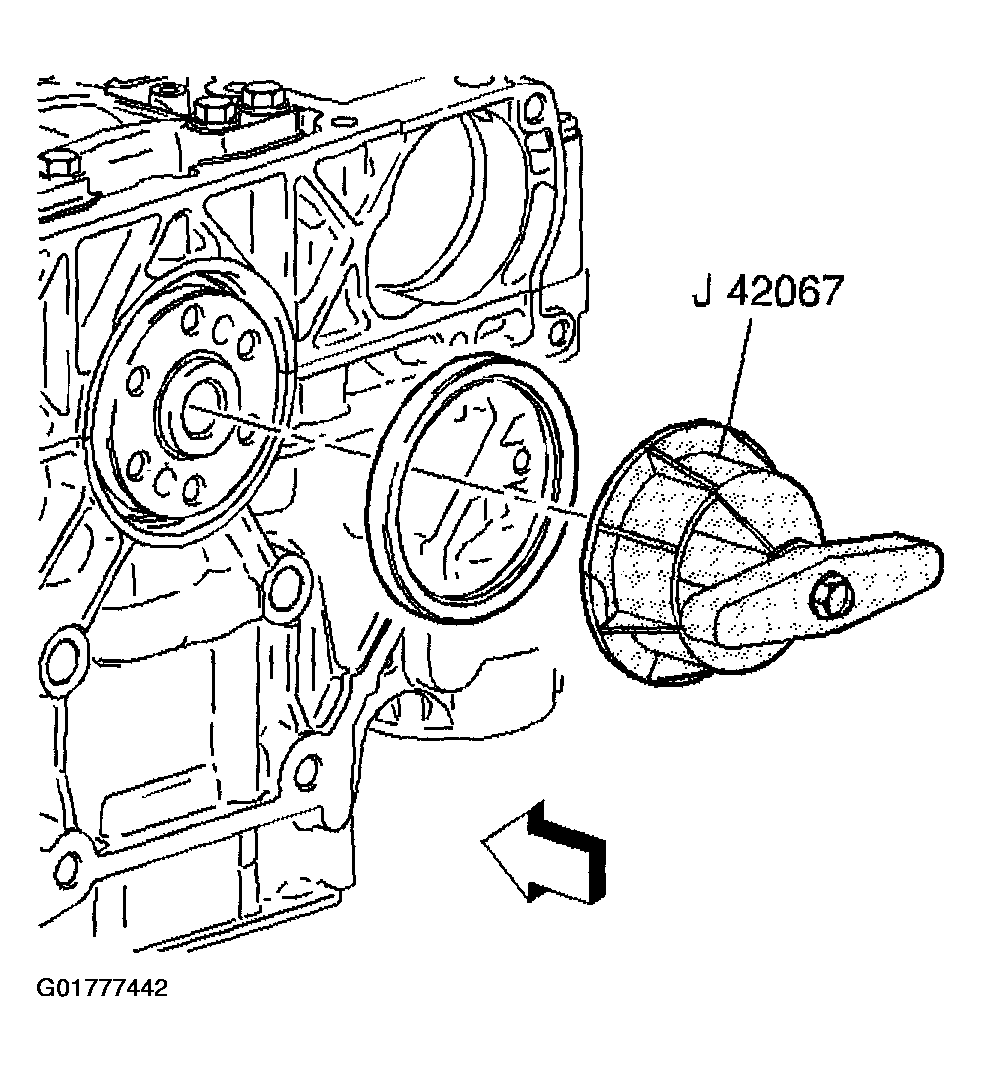

    Fig 1: Pressing New Crankshaft Seal Into Housing
    G01777442Courtesy of GENERAL MOTORS CORP.
