Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 35268-A  Front Crankshaft Seal Installer

  1. Install the seal into the front cover by driving it in from the timing chain side, using the J 35268-A.
  2. Ensure that the engine front cover is properly supported when installing the seal.

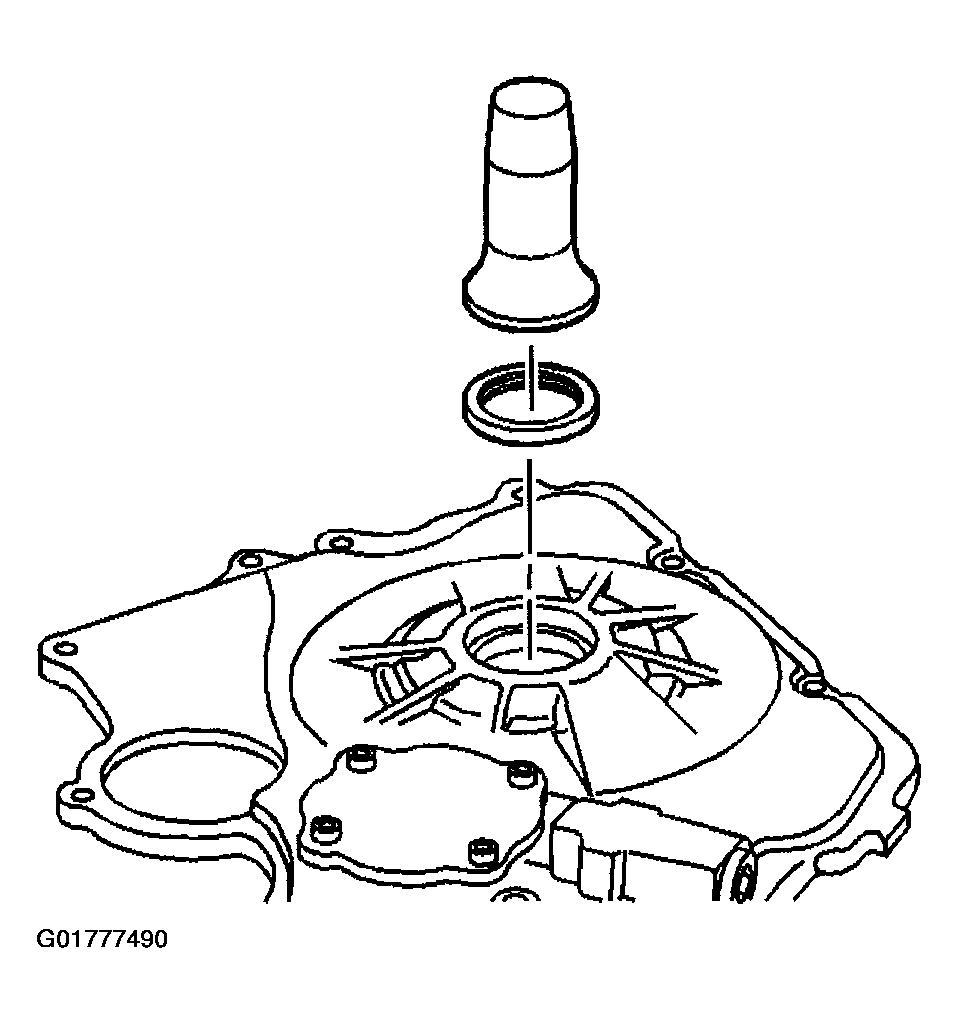

    Fig 1: Crankshaft Front Oil Seal
    G01777490Courtesy of GENERAL MOTORS CORP.
