Crankshaft Damper Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38122-A  Flywheel Holder

  1. Install the J 38122-A.
  2. Remove the damper retaining bolt and washer. Use the J 38122-A  and a breaker bar in order to prevent the crankshaft from rotating when loosening the bolt.

    Discard the bolt.

    Fig 1: Removing Damper Retaining Bolt & Washer
    G01777284Courtesy of GENERAL MOTORS CORP.
  3. Remove the damper assembly.

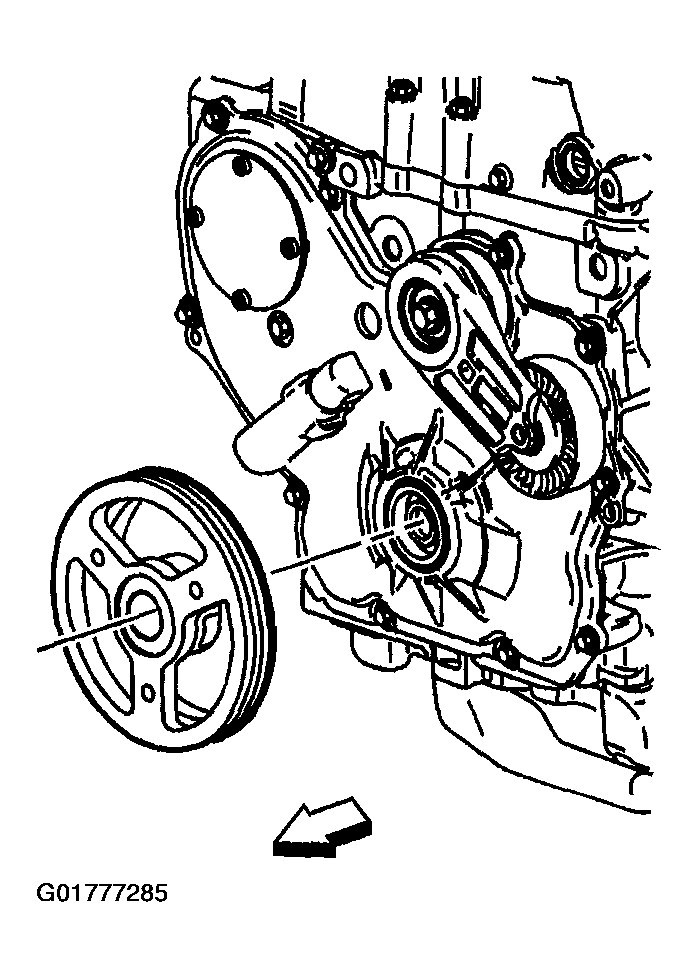

    Fig 2: Damper Assembly
    G01777285Courtesy of GENERAL MOTORS CORP.
