Camshaft Cover Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump, (if equipped).

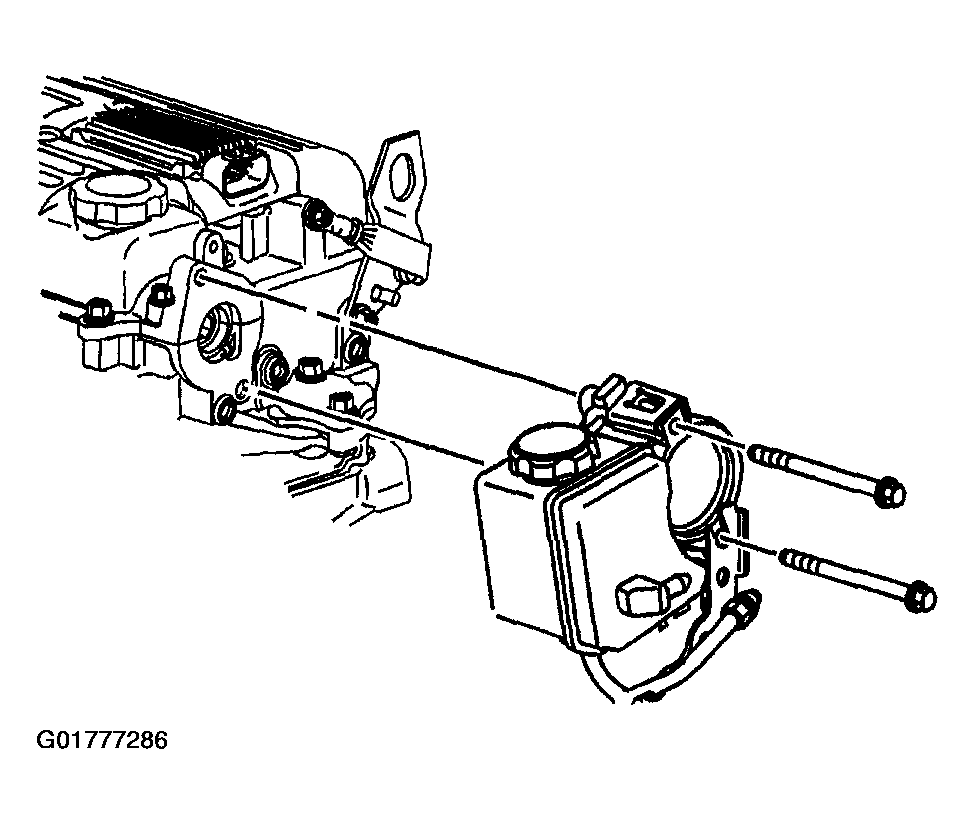

    Fig 1: Power Steering Pump
    G01777286Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft cover grounding strap.

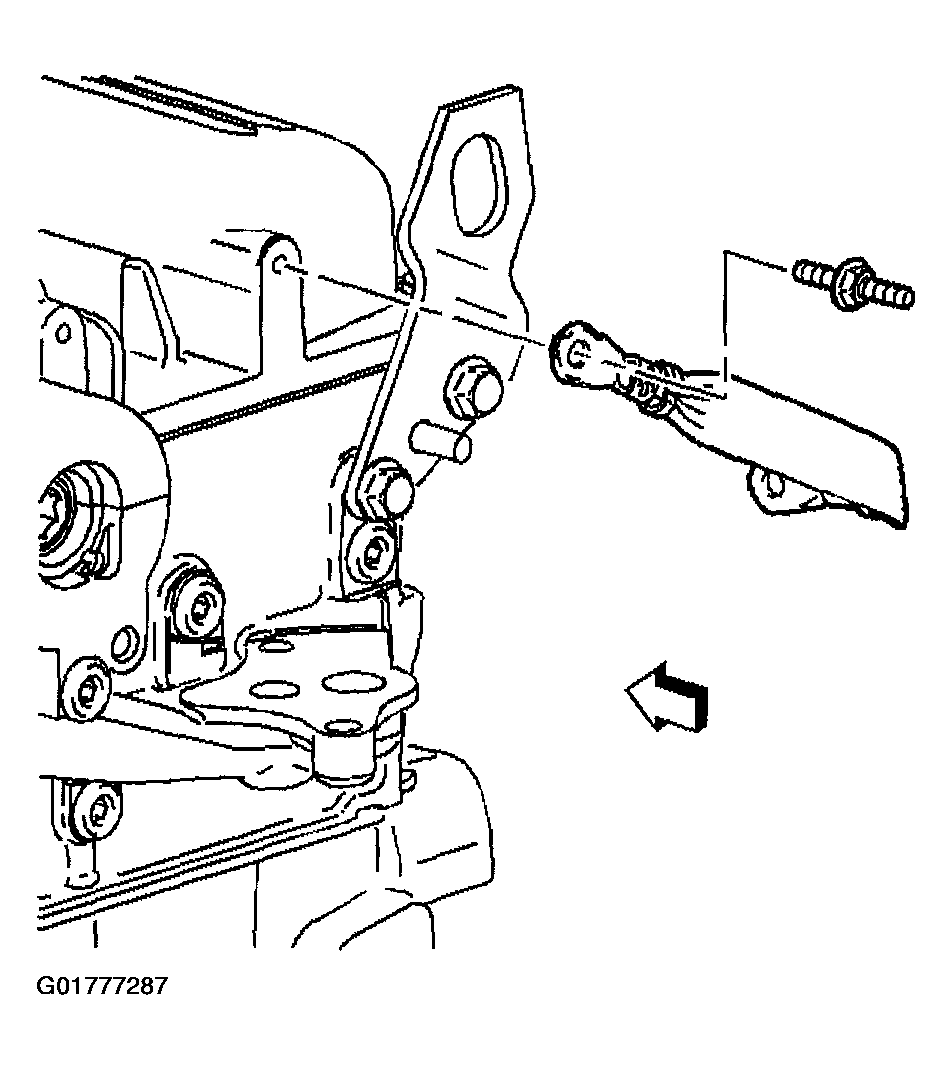

    Fig 2: Camshaft Cover Grounding Strap
    G01777287Courtesy of GENERAL MOTORS CORP.
  3. Remove the ignition module and coil assembly.

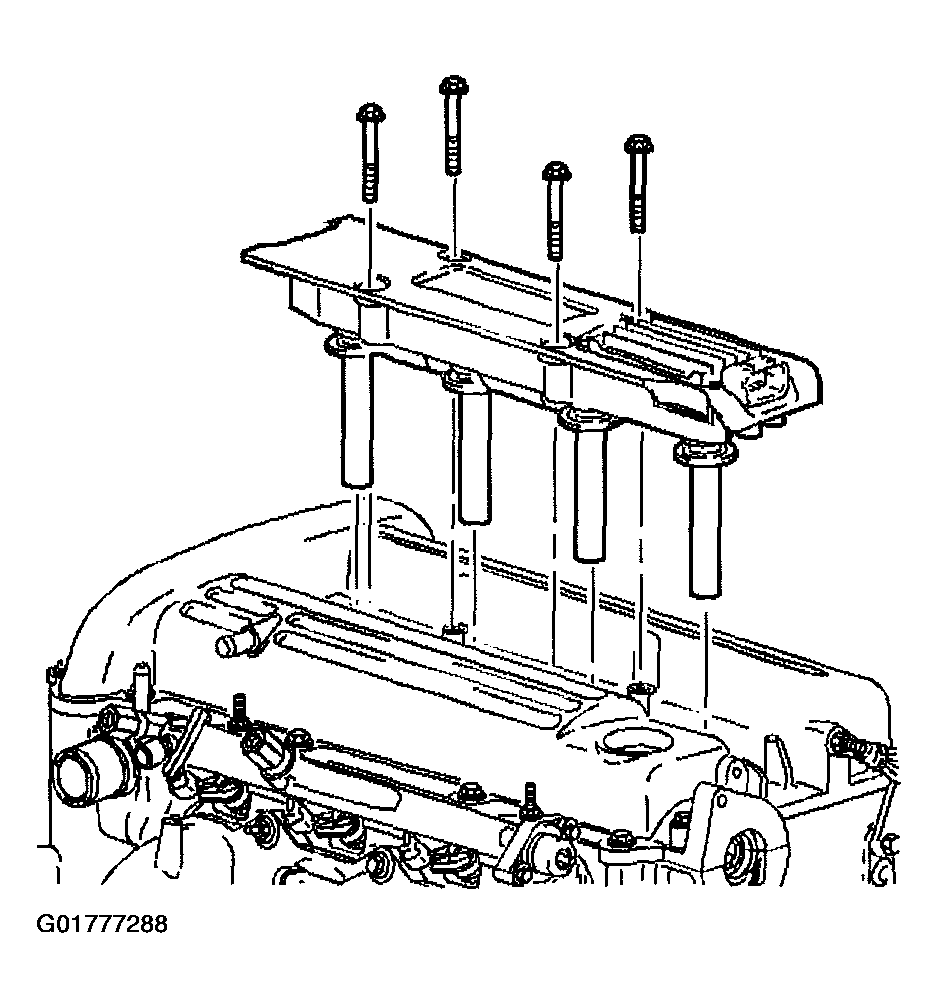

    Fig 3: Ignition Module And Coil Assembly
    G01777288Courtesy of GENERAL MOTORS CORP.
  4. Remove the camshaft cover assembly.

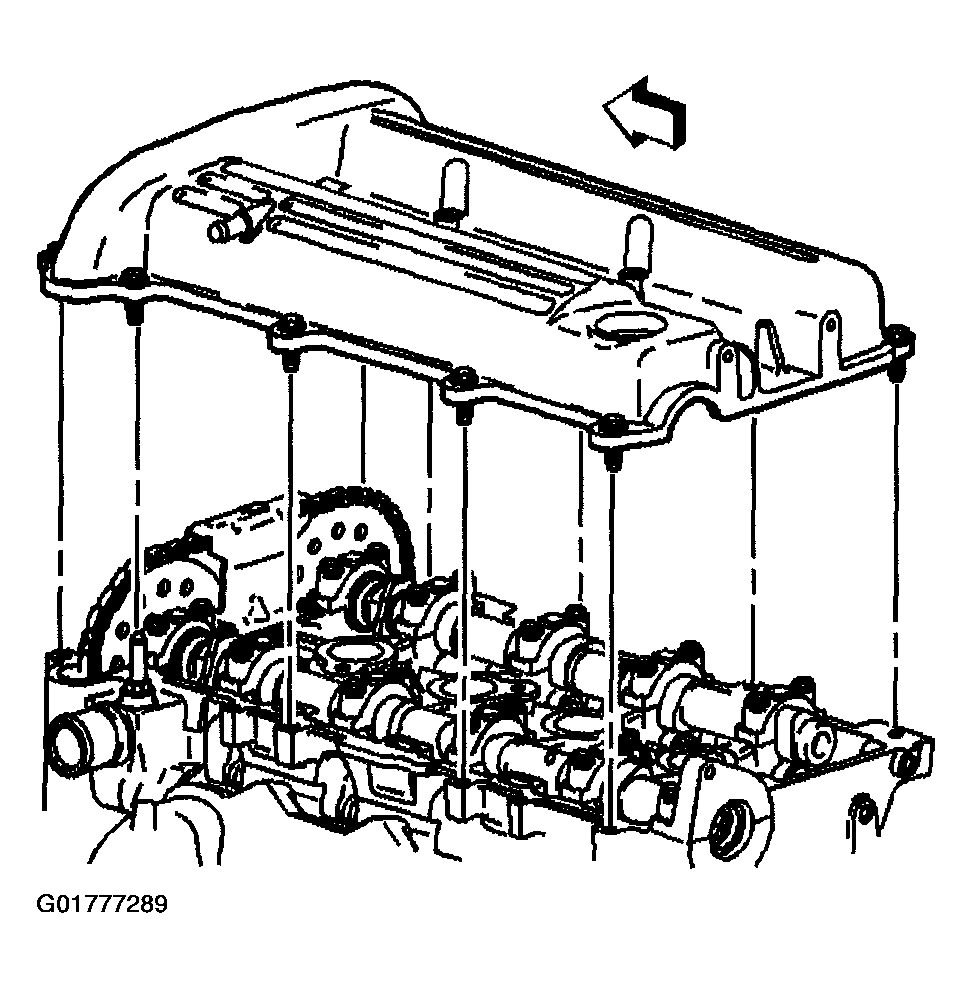

    Fig 4: Camshaft Cover Assembly
    G01777289Courtesy of GENERAL MOTORS CORP.
