Balance Shaft Removal

Tools Required

J 43650  Balancer Shaft Bearing Remover and Installer

1. Remove the balance shaft bearing carrier bolts.

   Important:

   • It is possible to install the intake side balance shaft into the exhaust side and vice versa. Please use care not to install the balance shafts into the wrong bores. Engine vibration will result.
   • Do not remove the bolt holding the sprocket.
2. Remove the balance shaft assemblies.

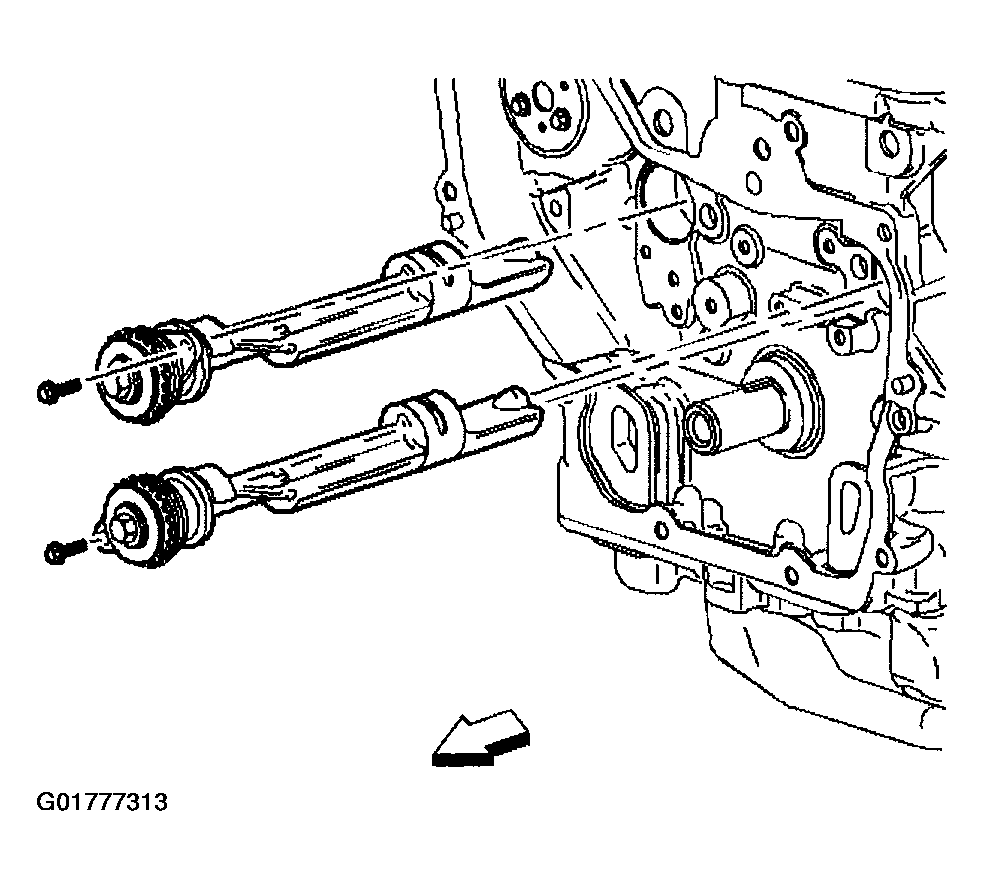

   Fig 1: Balance Shaft Assemblies

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Proper centering of the tool is required on the balance shaft bushing. If the tool is not properly centered then damage to the bearing bore and block will occur.
3. Install the J 43650  into the balance shaft hole. Insert the tool with the foot parallel to the shaft.

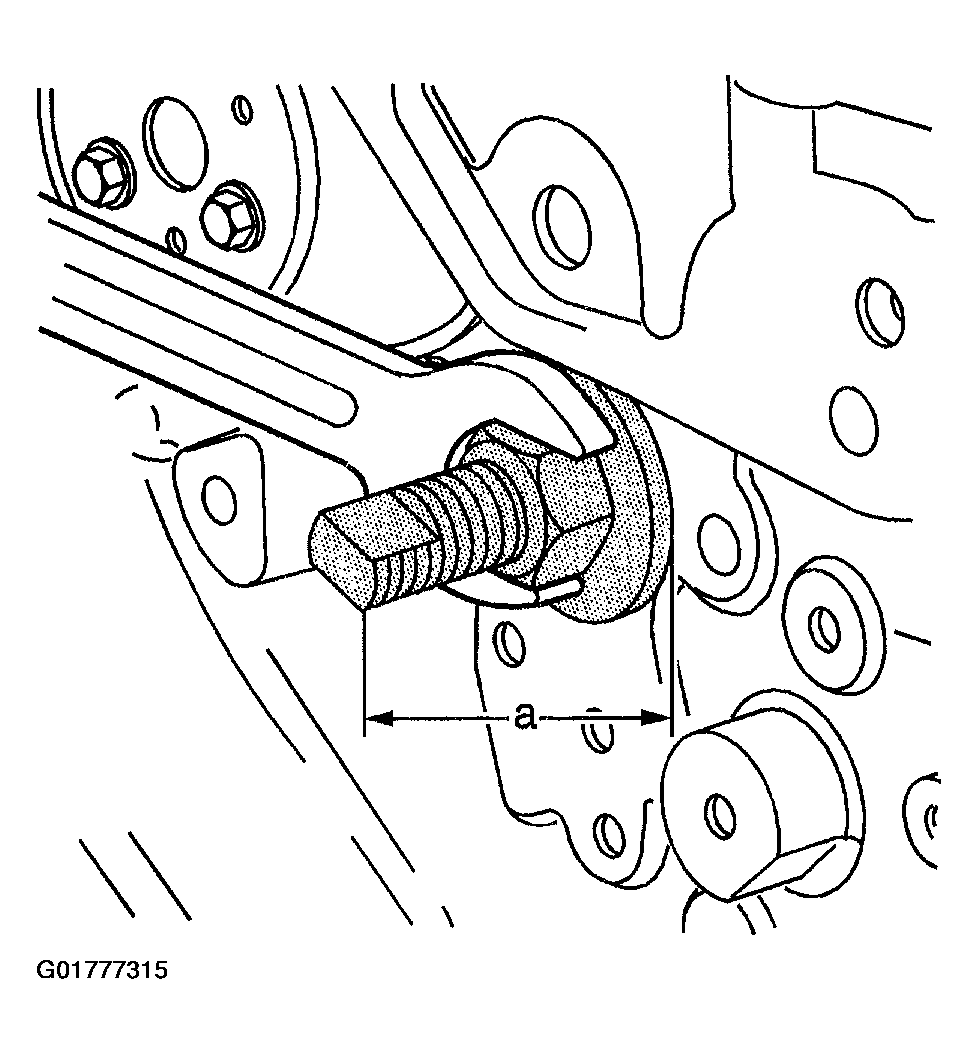

   Fig 2: Balancer Shaft Bearing Remover (J 43650)

   Courtesy of GENERAL MOTORS CORP.
4. When the J 43650  is inserted in the block turn the J 43650  so that the foot becomes perpendicular to the shaft.
5. Center the foot of the J 43650  on the balance shaft bushing.
6. Once the J 43650  is centered on the balance shaft bushing, then insert the centering guide into the front balance shaft bore and tighten the nut with an appropriate wrench.

   When the J 43650  is properly installed, before removing the bushing, the end of the tool should be 74-77 mm (2.91-3.03 in) (a) from the block face.

   If the J 43650  is less than 73 mm (2.87 in) (a) recheck the tool alignment.

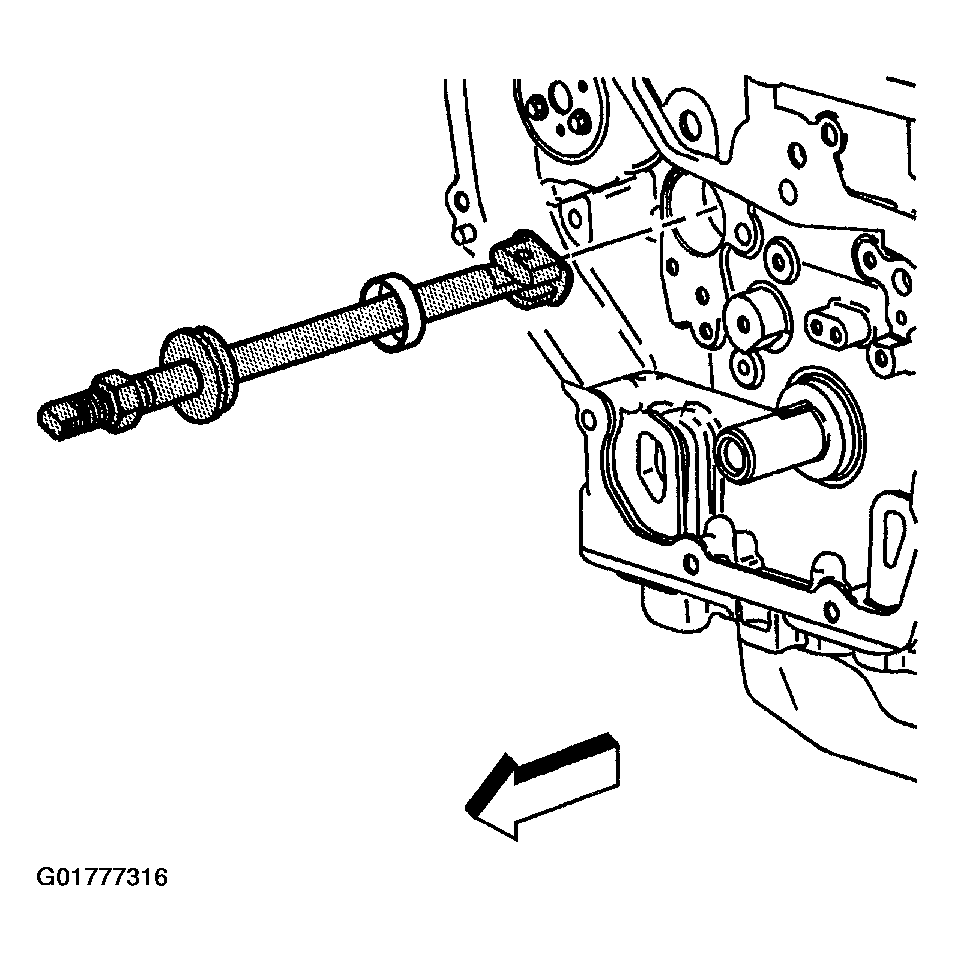

   Fig 3: Tightening Balancer Shaft Bearing Remover

   Courtesy of GENERAL MOTORS CORP.
7. Tighten the nut on the J 43650  until the tension releases. When the tension releases, remove the J 43650  and the balance shaft bushing.

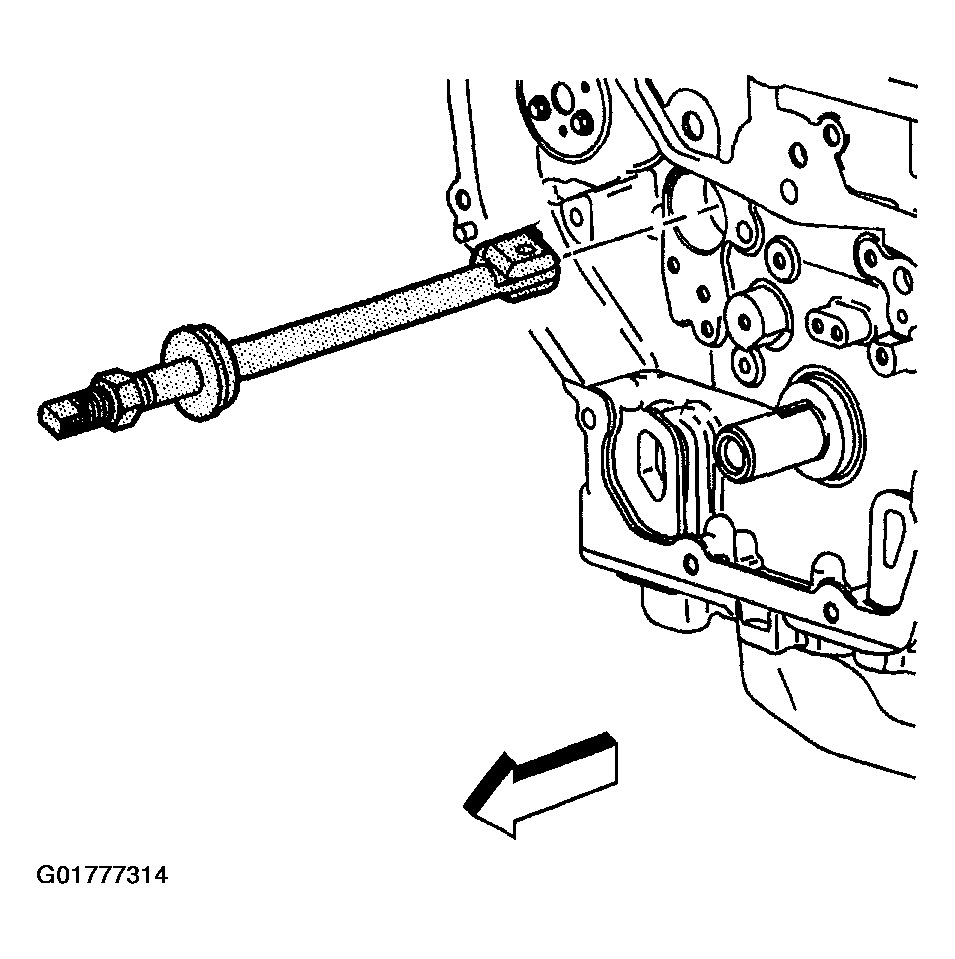

   Fig 4: Removing Balancer Shaft Bearing Remover

   Courtesy of GENERAL MOTORS CORP.
