Disassembled Views

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

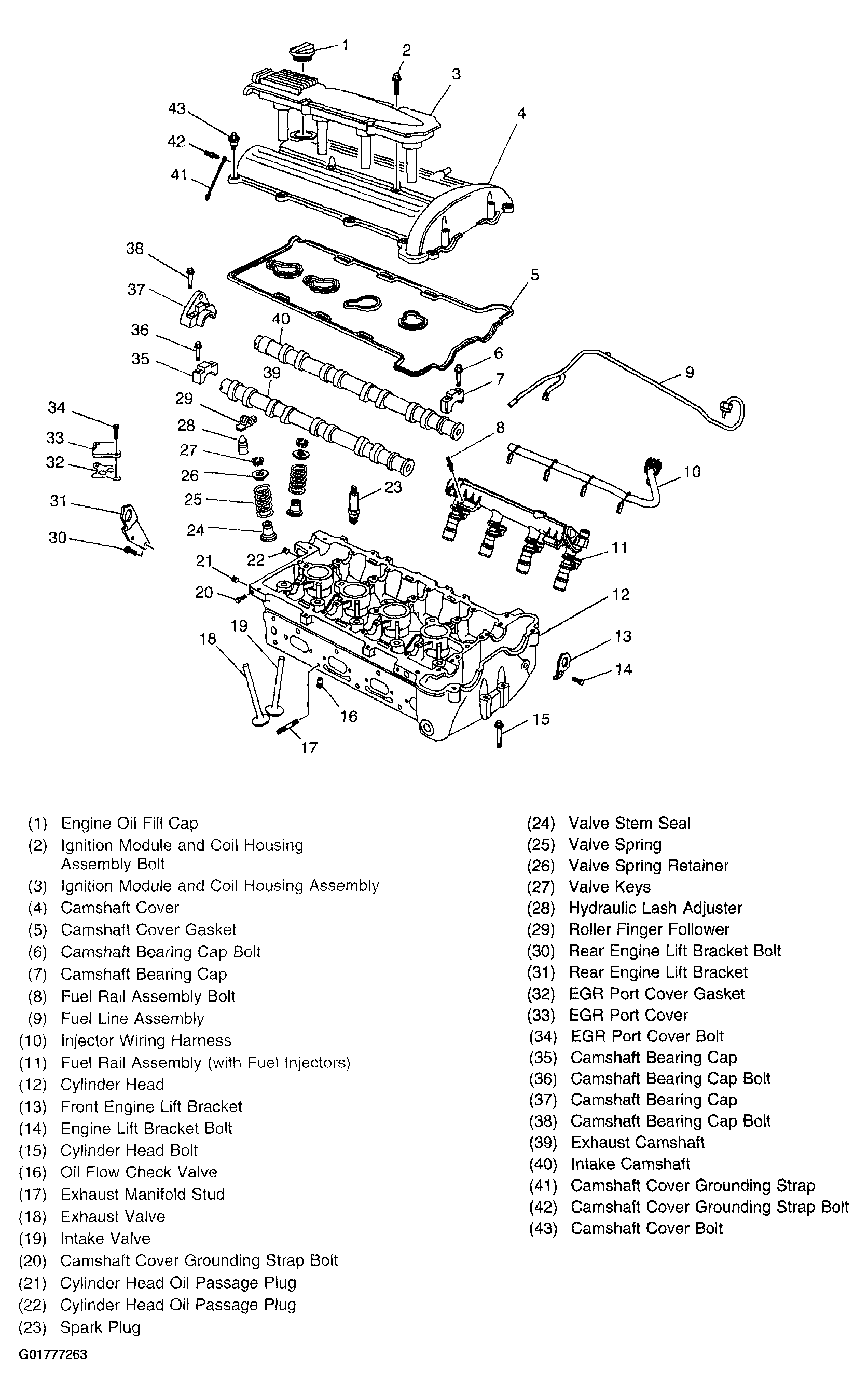

Fig 1: Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

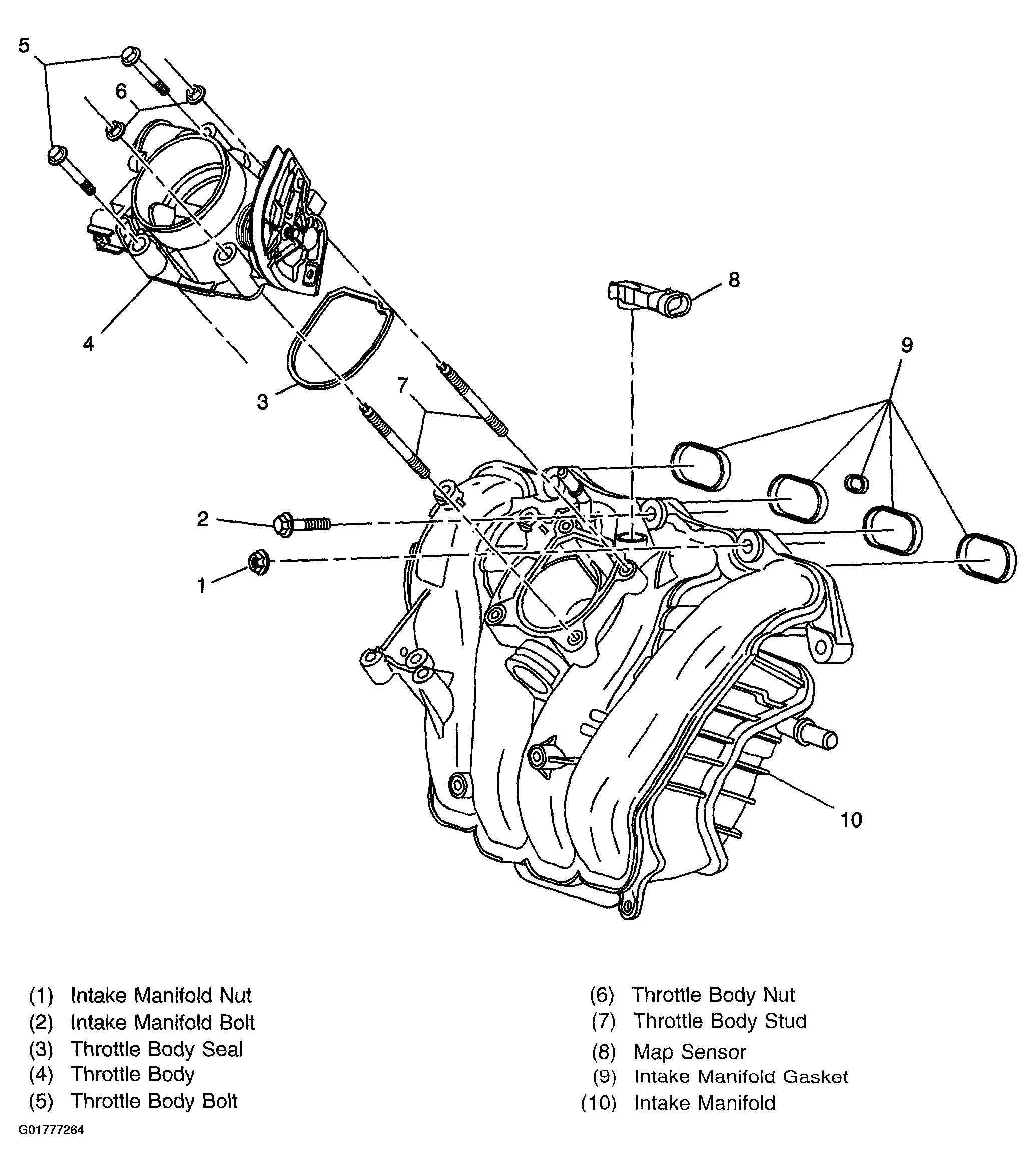

Fig 2: Intake Manifold & Components

Courtesy of GENERAL MOTORS CORP.

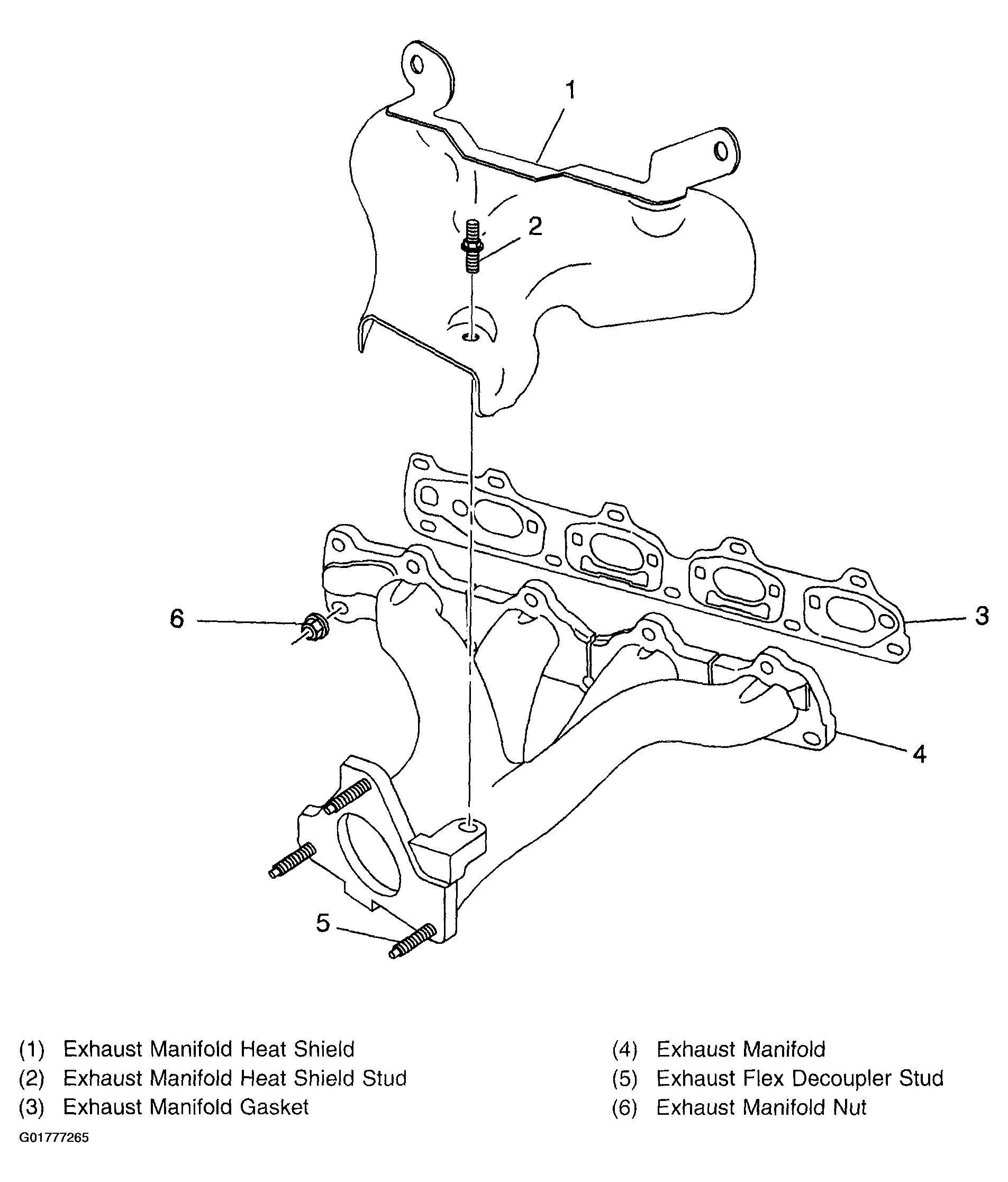

Fig 3: Exhaust Manifold & Components

Courtesy of GENERAL MOTORS CORP.

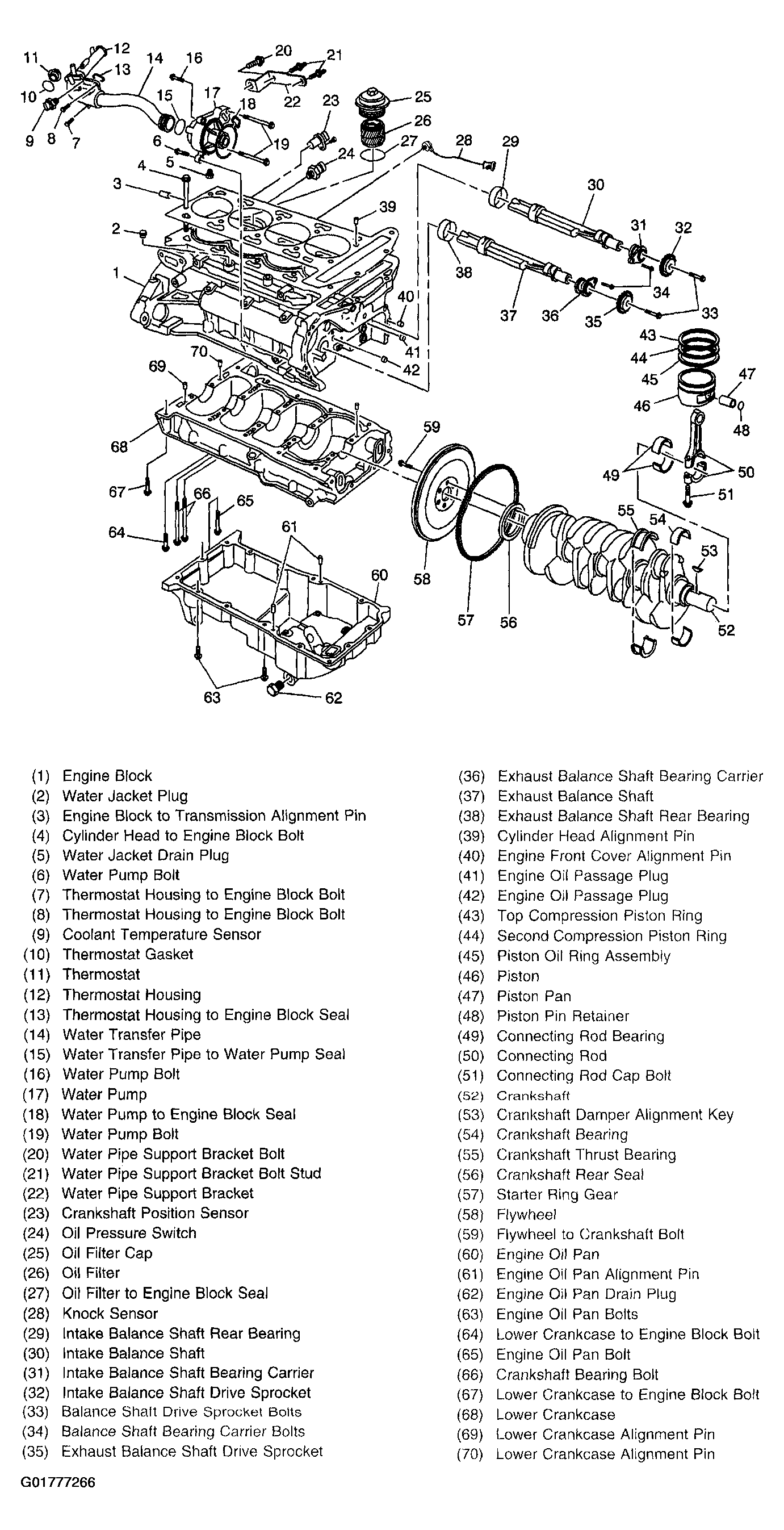

Fig 4: Engine Block & Components

Courtesy of GENERAL MOTORS CORP.

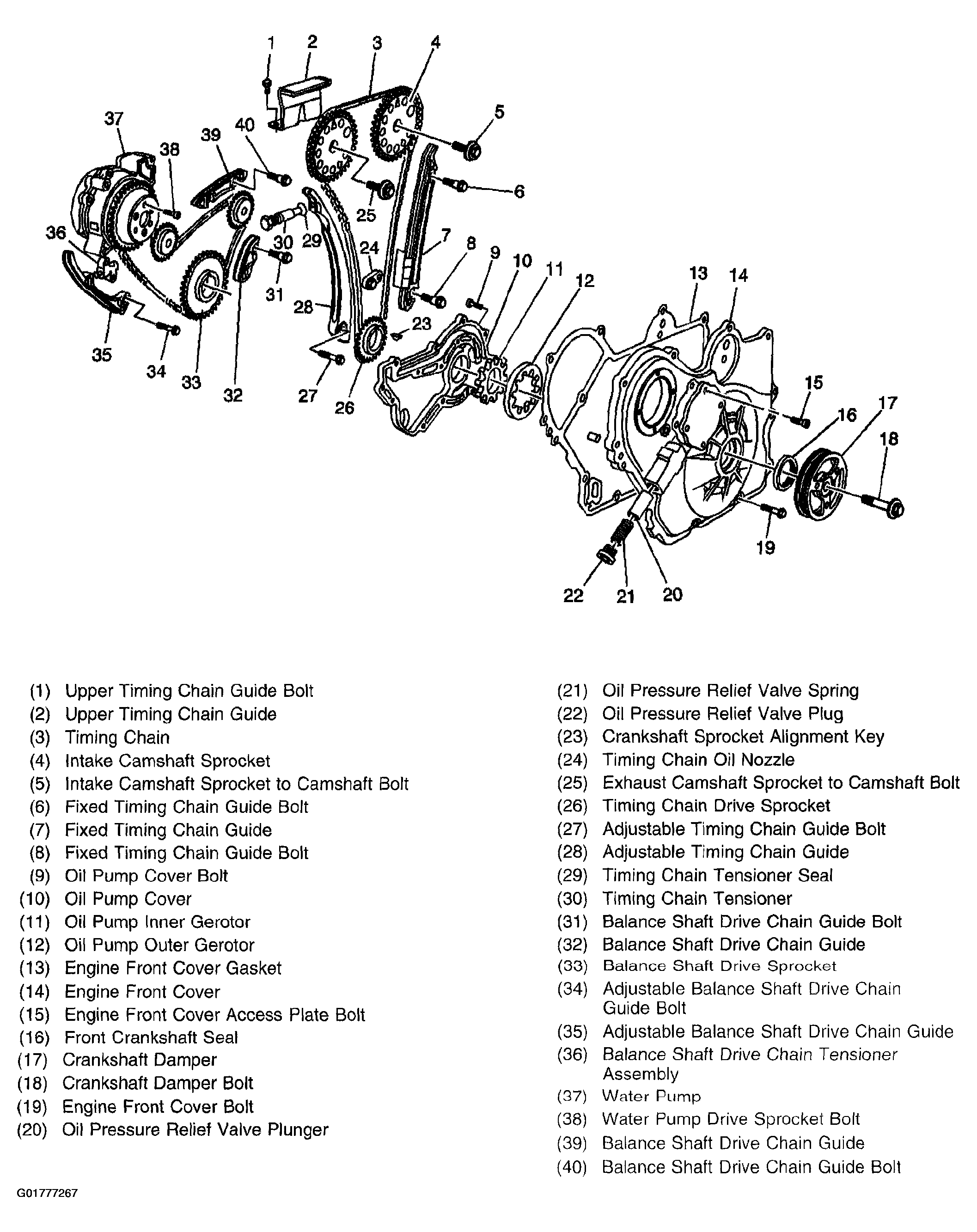

Fig 5: Timing Chain & Components

Courtesy of GENERAL MOTORS CORP.

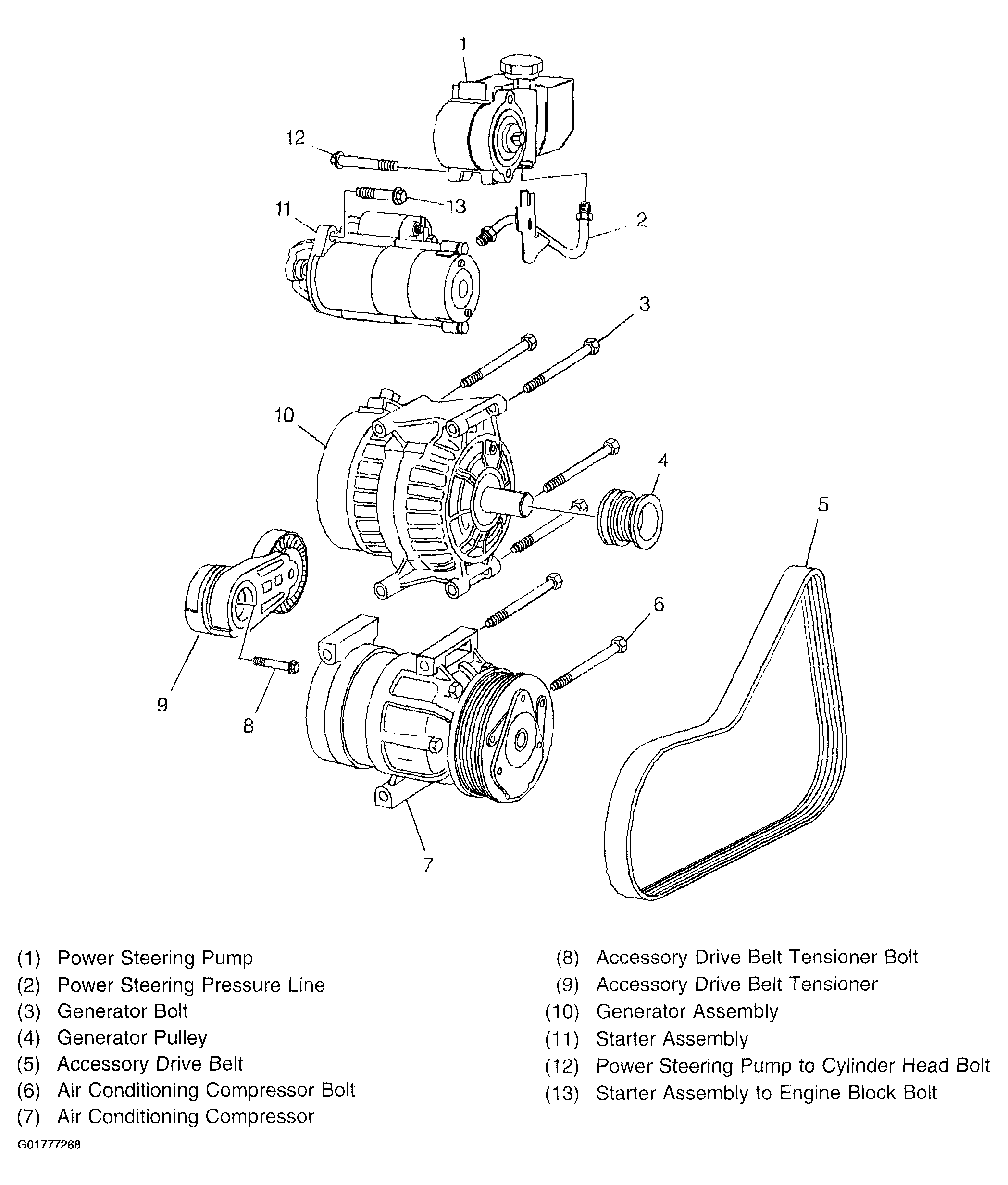

Fig 6: Accessory & Accessory Drive Components

Courtesy of GENERAL MOTORS CORP.
