Vehicle Leads/Pulls

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

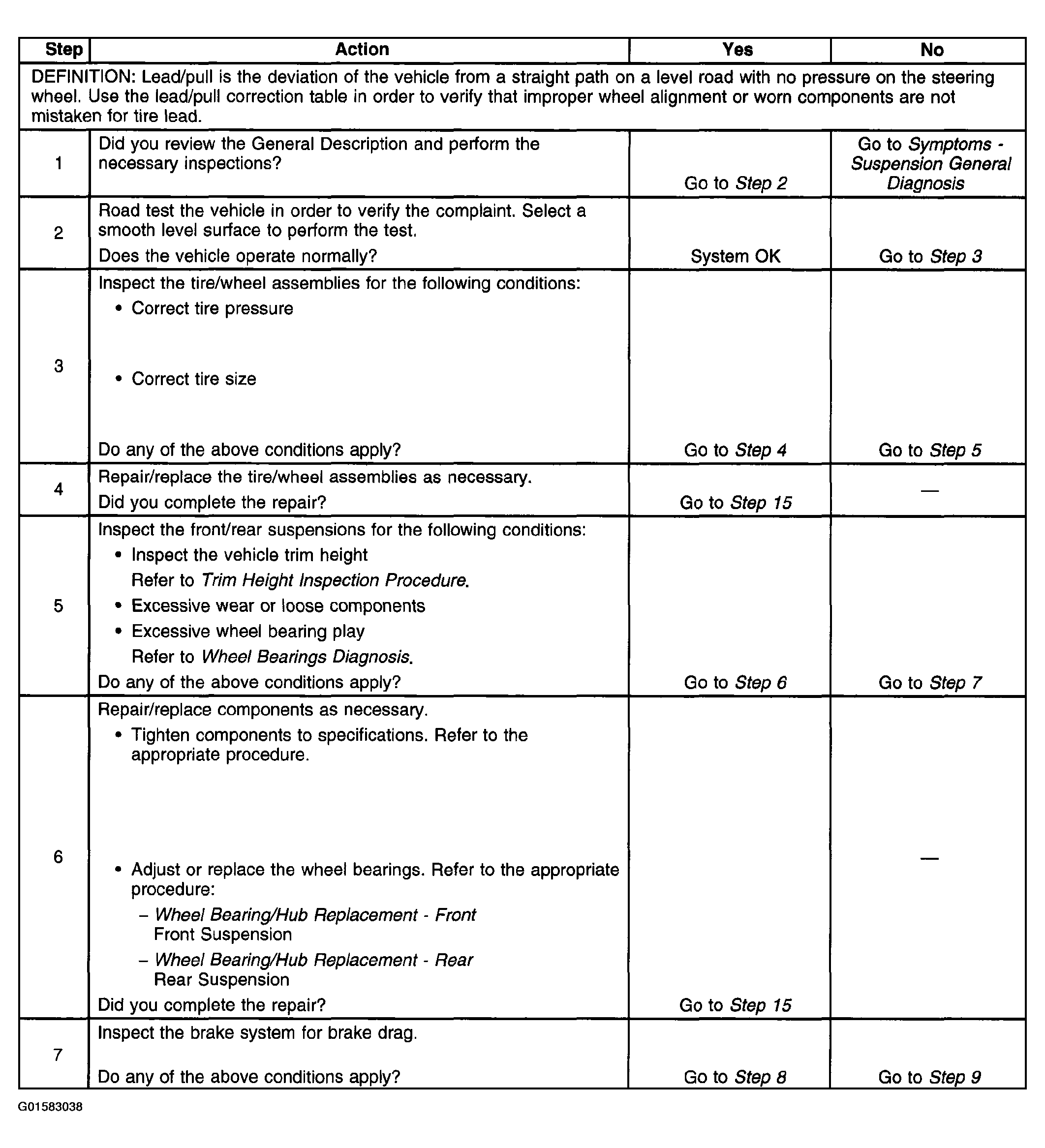

Fig 1: Vehicle Leads/Pulls (1 Of 2)
G01583038Courtesy of GENERAL MOTORS CORP.

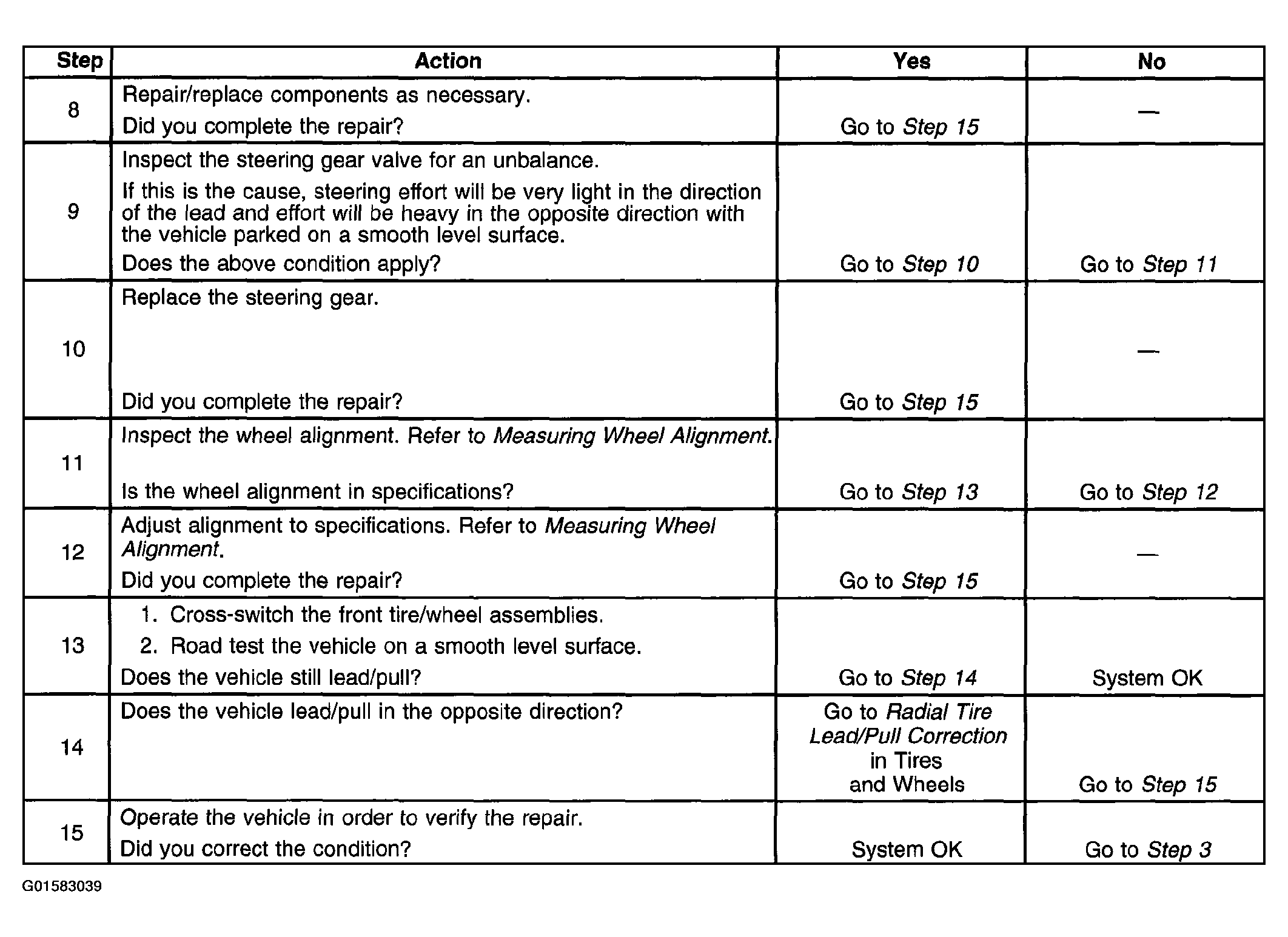

Fig 2: Vehicle Leads/Pulls (2 Of 2)
G01583039Courtesy of GENERAL MOTORS CORP.
